OneClick WebApp random disconnections and "Session Ended" errors [Spectrum]

Products

• Network Observability
• Spectrum

Issue/Introduction

This article addresses random disconnections in the OneClick WebApp, often accompanied by the messages "Reconnecting" or "Session Ended."

These issues typically occur when memory settings are insufficient or the Webswing configuration contains incorrect port references.

Symptoms

• OneClick WebApp randomly closes.
• "Reconnecting" message displayed.
• "Your connection to the server is lost" error.
• "Session Ended" error.
• stdout.log contains: Websocket closed to server [...] close code [1006], reason [Closed abnormally.]

Environment

*   DX Spectrum 25.4.5 (or later)

*   Linux Operating System

Cause

Insufficient memory allocation for OneClick/Tomcat services or misconfigured webswing.server.publicUrl ports in webswing-admin.properties.

Resolution

1. Increase Web Server Memory:
   • Navigate to the OneClick server configuration.
   • Ensure the OneClick web server memory is set to the default of 4GB (4096).
2. Increase Tomcat Memory:
   • Adjust the Web Tomcat memory from 1024MB to 2048MB.
   • Restart the webtomcat services.
3. Correct Webswing Admin Console Port:
   • Open $SPECROOT/webtomcat/webswing/admin/webswing-admin.properties.
   • Update webswing.server.publicUrl port from 8443 to 9443 (or the correct configured port).
   • Restart the services to apply changes.
4. Verify Inactive Timeout:
   • In the Webswing admin console, check the "Timeout if Inactive" option.
   • If disconnections persist, set the "Timeout if Inactive" value to -1.

Additional Information

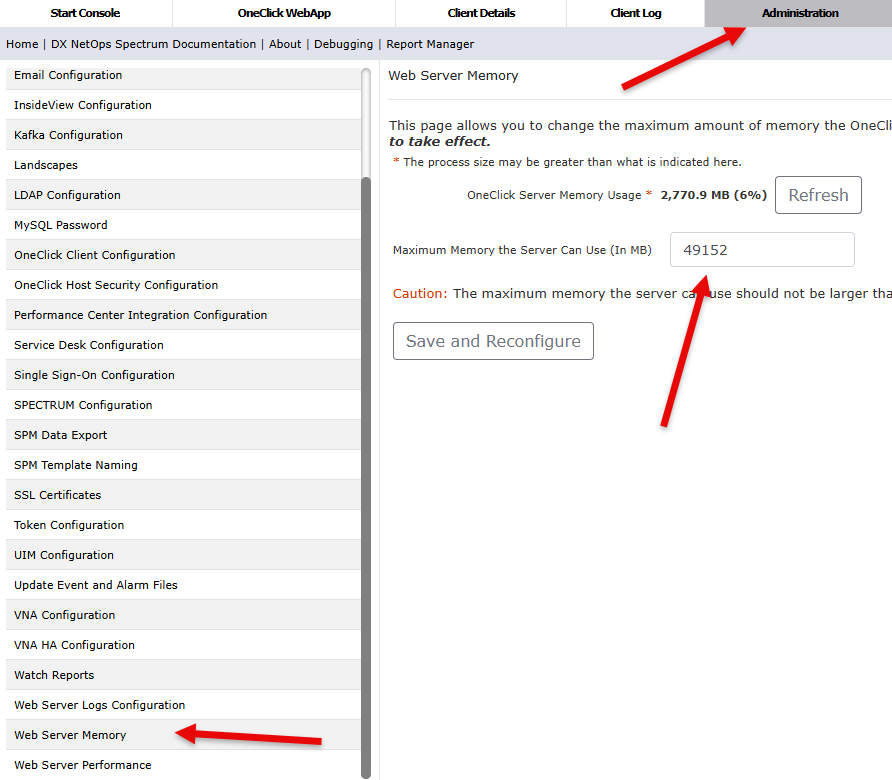

web server memory can be adjusted in the Spectrum web page, under Administration, Web Server Memory:

or by editing the xmx value in <SPECROOT>/tomcat/bin/catalina.sh

catalina.sh:224:JAVA_OPTS="-DOneClick -server -Xmx49152M -Xms4096M -XX:+UseG1GC -XX:G1HeapRegionSize=8M -XX:G1HeapWastePercent=5 -XX:MaxGCPauseMillis=800 -XX:SurvivorRatio=8 -Dsun.net.inetaddr.ttl=60 -XX:+HeapDumpOnOutOfMemoryError -Djava.awt.headless=true -Djavax.net.ssl.trustStore=$SPECROOT/custom/keystore/cacerts -Dfile.encoding=UTF-8 -Dorg.xerial.snappy.tempdir=$SPECROOT/tmp -Dorg.apache.coyote.USE_CUSTOM_STATUS_MSG_IN_HEADER=true -Dlog4j2.enabled=true -Djdk.corba.allowInputStreamSubclass=true -Djdk.corba.allowOutputStreamSubclass=true -Djavax.xml.soap.SAAJMetaFactory=com.sun.xml.messaging.saaj.soap.SAAJMetaFactoryImpl --add-opens=java.base/java.io=ALL-UNNAMED --add-opens=java.base/java.lang=ALL-UNNAMED --add-opens=java.rmi/sun.rmi.transport=ALL-UNNAMED  --add-opens=java.base/javax.crypto=ALL-UNNAMED -Dlog4j2.enabled=true"
