Cluster Images Showing as Incompatible Without Further Detail

Products

• VMware vCenter Server

Issue/Introduction

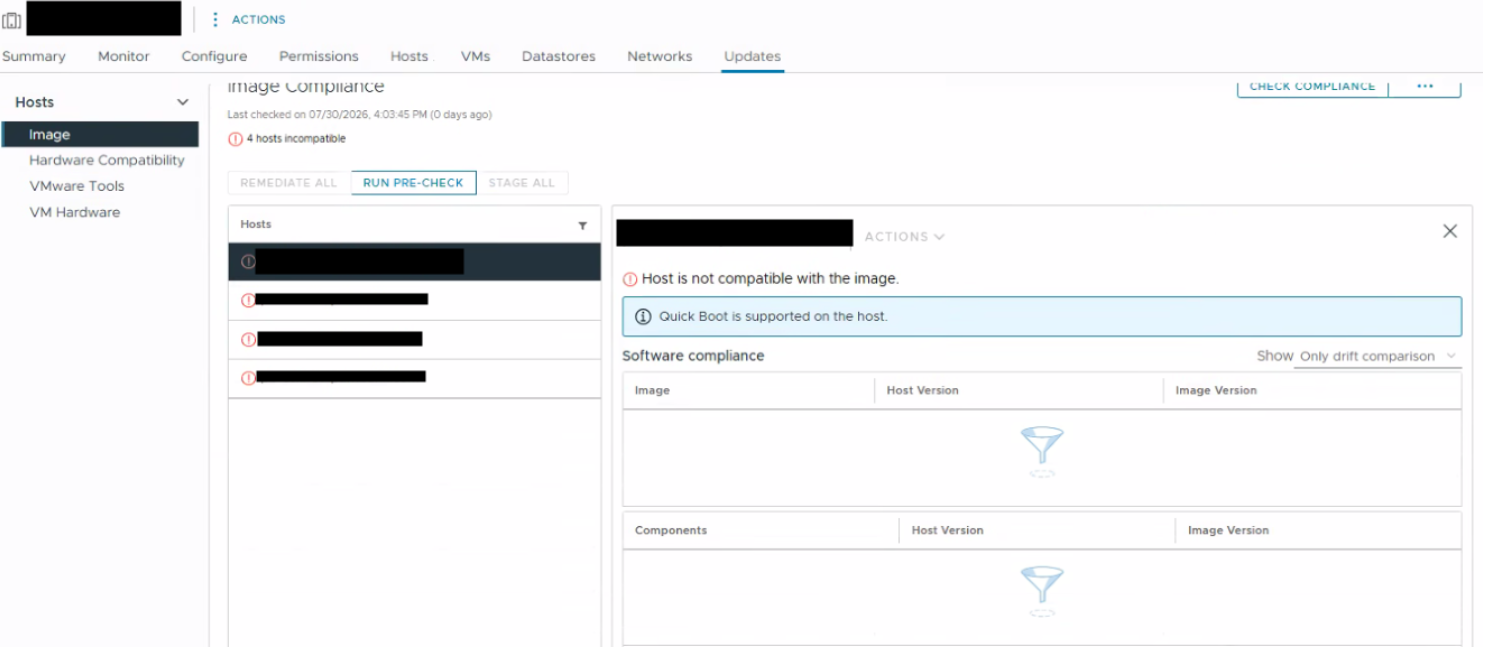

Hosts are showing as Incompatible when running compliance checks within vSphere Cluster LCM. No details such as expected lists of incompatible VIBs are shown:

Environment

vCenter Server 8.0 U3
vSphere Replication 9.0.2

Cause

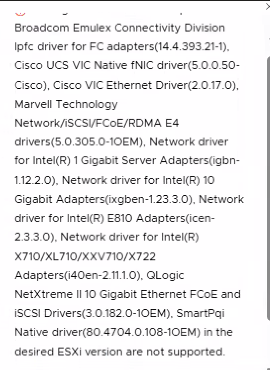

A lower version of the vmware-hbr-agent Solution VIB for vSphere Replication is being pushed to ESXi hosts through vCenter automatically than what is included in the Cluster Image. This VIB is classified as a Solution which is why it does not show in a list of "outdated VIBs" such as the example output below:

Resolution

1. SSH into vSphere Replication Nodes as Root.
2. Set the HBR vib auto-push to False to stop automatic pushing of the VIB to hosts.
   • /opt/vmware/hms/bin/hms-configtool -cmd reconfig -property hms-auto-install-hbragent-vib=false
3. Restart the HMS service
   • service hms restart
4. SSH into each effected host and remove the vmware-hbr-agent vib

   (Note: vSphere Replication will not be effected. This change is reverted later.)

   • esxcli software remove -n vmware-hbr-agent
5. Re-run compliance check on the cluster. If successful - Remediate.
6. Cleanup steps:
   1. SSH to vSphere Replication Nodes as Root.
   2. Run the following commands to re-enable hbr VIB auto-push:
      1. /opt/vmware/hms/bin/hms-configtool -cmd reconfig -property hms-auto-install-hbragent-vib=true
      2. service hms restart

Additional Information

vSphere Lifecycle management (vLCM) support for vSphere Replication
