Issue/Introduction

How does UMP work to pick up appropriate literal / abbreviation symbol for UNIT of performance data ?

Environment

Release: CNMSPP99000-8.2-Unified Infrastructure Mgmt-Server Pack-- On Prem and higher
Component:

Resolution

Let’s try to explain with an example.

 -          User CPU Usage (cdm probe)

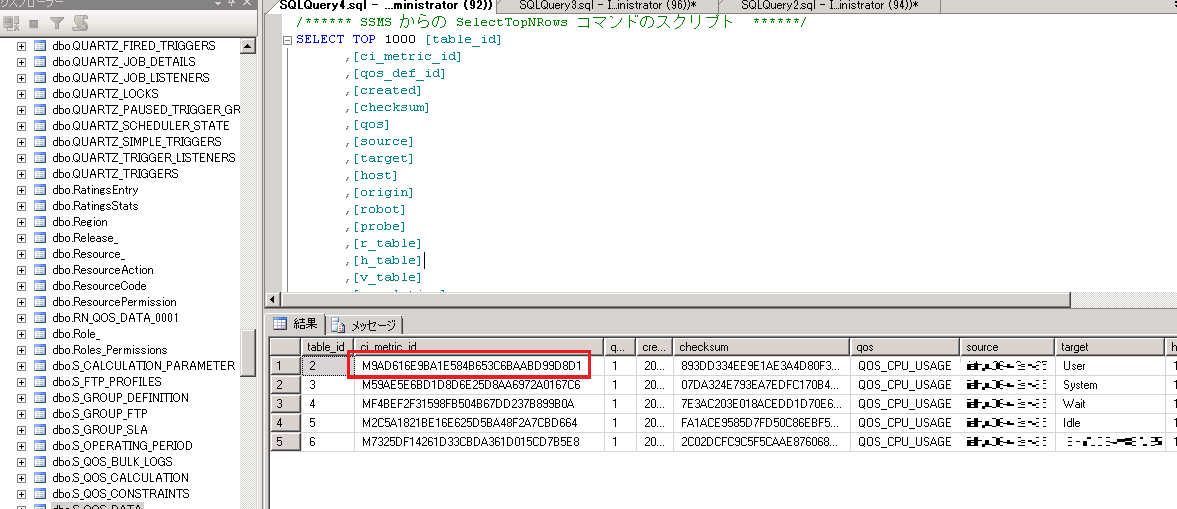

1.  S_QOS_DATA.[ci_metric_id] is queried.

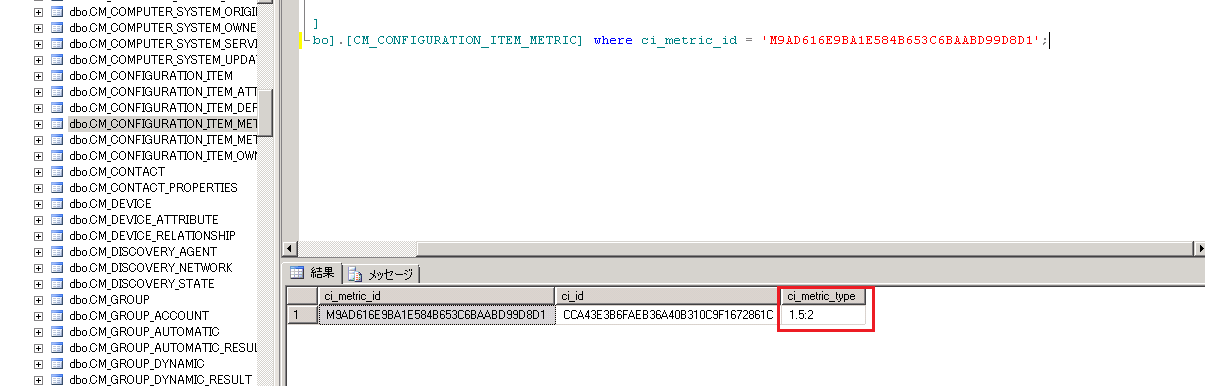

2. CM_CONFIGURATION_ITEM_METRIC.[ci_metric_type] is queried.

3.  CM_CONFIGURATION_ITEM_METRIC_DEFINITION.[unit_type] is queried.

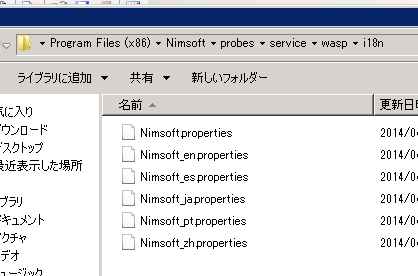

Based on the value, corresponding literal and abbreviation symbol is taken from the other resource file. <UIM>/probes/service/wasp/i18n/Nimsoft_XX.properties.

The file is locale dependent based on user’s locale setting.

The below is just a mini exercise just to illustrate how the flow works.

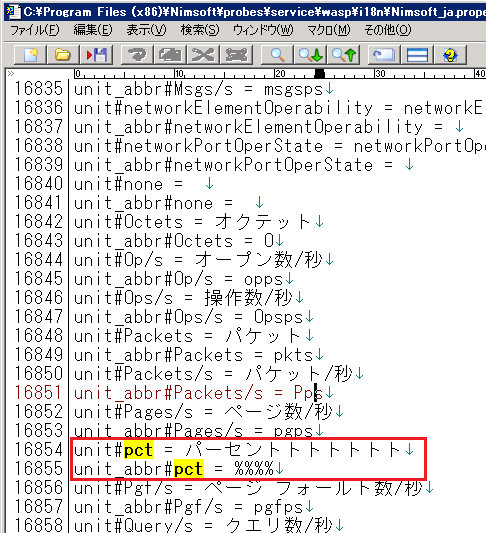

1.  Make small change on <UIM>/probes/service/wasp/i18n/Nimsoft_ja.properties:



2.  Restart wasp probe.

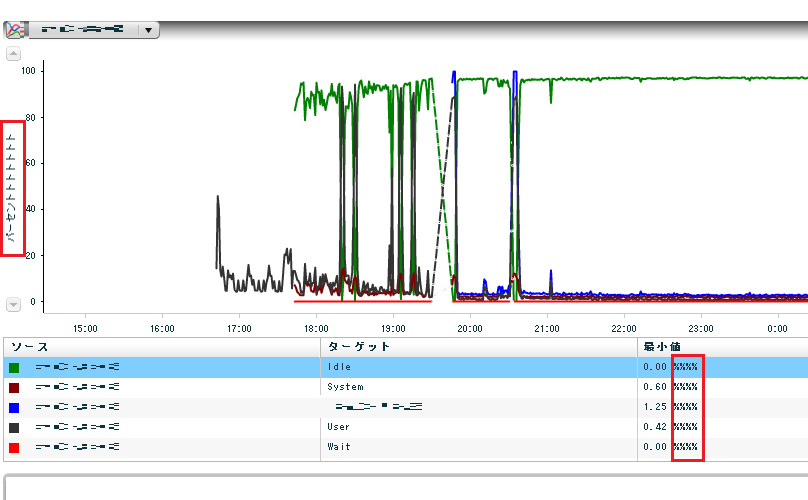

3.  Performance Report come like this.
