MPS Phase 2 Precheck failure: Insufficient vCenter Cluster Hardware Resources

Products

• VMware vDefend Firewall
• VMware vDefend Firewall with Advanced Threat Prevention

Issue/Introduction

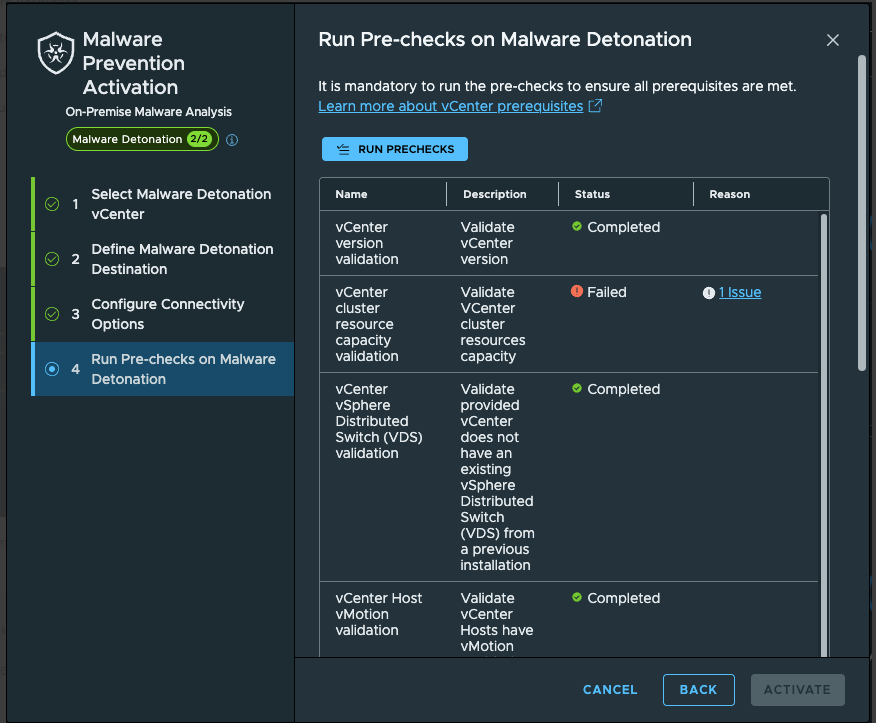

The prechecks for MPS Phase 2 are verifying that the vCenter cluster has enough resources to run the Sandbox Detonation. If the resources are not available, the precheck fails.

vCenter Cluster Resource Requirements Failure Example :



The precheck logs can be found by checking the logs of the pod malware-analysis-vc-precheck-vcenter-cluster-resources-*.

For example, when there is not enough RAM:

2026-08-06 22:57:35,615 - precheck - INFO - OpenSSL version: OpenSSL 3.5.5 27 Jan 2026; FIPS mode: True
2026-08-06 22:57:35,640 - precheck - INFO - Invoking precheck vcenter_cluster_resources
2026-08-06 22:57:35,640 - malware_analysis_precheck - INFO - Running precheck PrecheckName.vcenter_cluster_resources for feature malware-analysis-vc

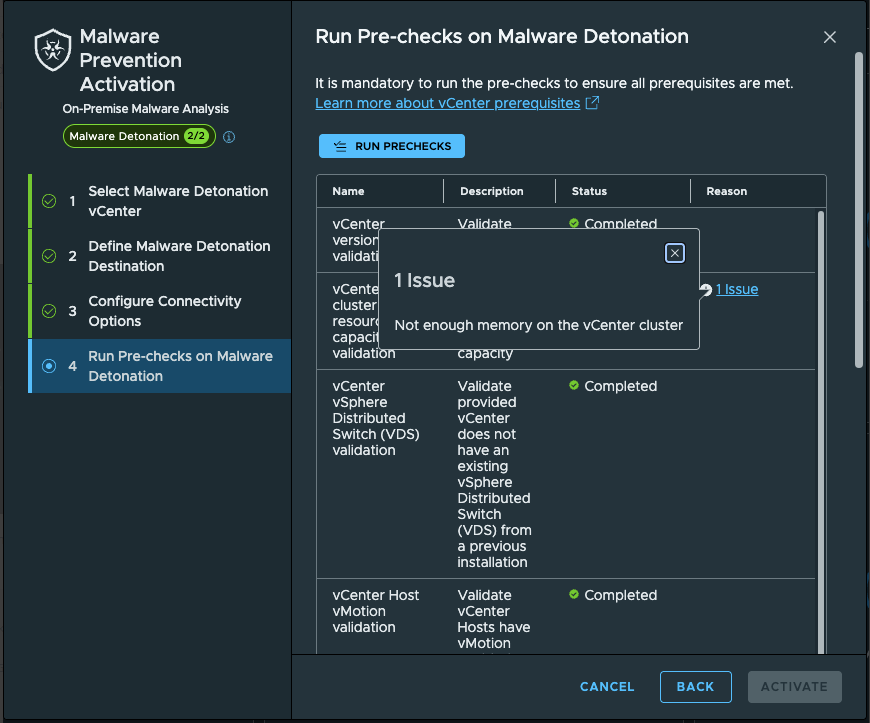

2026-08-06 22:57:37,242 - malware_analysis_precheck - WARNING - Not enough memory available across all hosts: 16 instead of min. 32
2026-08-06 22:57:37,242 - malware_analysis_precheck - INFO - Precheck PrecheckName.vcenter_cluster_resources completed: CheckStatus.FAILED
2026-08-06 22:57:37,312 - malware_analysis_precheck - INFO - Precheck PrecheckName.vcenter_cluster_resources for feature malware-analysis-vc completed: CheckStatus.FAILED
2026-08-06 22:57:37,351 - precheck - INFO - Precheck vcenter_cluster_resources completed: failed

Environment

Security Services Platform (SSP) 5.2.0 with phase 1 of MPS installed

Cause

Insufficient vCenter Cluster Hardware Resources

Resolution

Depending on the hardware resource that is not sufficient, the resource must be increased in the cluster.

The Sandbox Detonation in the vCenter requires a minimum amount of Hardware resources to work. The minimum requirements are as follows:

Number of Hosts: 1
Memory: 32 GB
Number of CPU: 1
Number of CPU Threads: 16
CPU Hz: 1GHz
Free Datastore Space: 80 GB
