8 precheck errors for Upgrading vCenter to 9.X/ 9.1 Root password/ vCenter backup/ vCenter storage health/ vCenter cloud system health/ vCenter NTP/ vCenter to SDDC Manager time difference/ Lookup service availability/ Vpxd service availability
Article ID: 448583
Updated On:
Products
Issue/Introduction

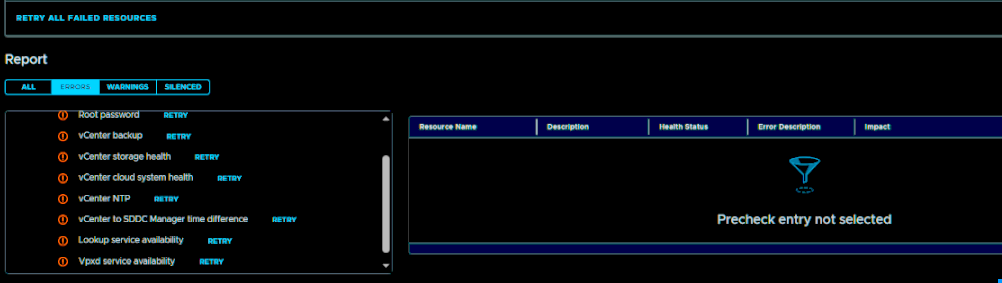

Running precheck for upgrading a vCenter in a VCF 9.x/ 9.1 environment triggers the following 8 precheck errors
Root password/ vCenter backup/ vCenter storage health/ vCenter cloud system health/ vCenter NTP/ vCenter to SDDC Manager time difference/ Lookup service availability/ Vpxd service availability
Passwords are not disconnected, NTP and VPXD services are running on the Impacted vCenter
Operationsmanager logs show an authentication error
grep -i -C4 "Exception occurred during VC vAPI" operationsmanager/operationsmanager.log
--
at java.base/java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1144)
at java.base/java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:642)
at java.base/java.lang.Thread.run(Thread.java:1583)
<date && time> INFO [vcf_om,0000000000000000,0000] [c.v.v.vapi.vsphere.VcApplianceClient,pool-5-thread-6] Get the current status of the appliance update
<date && time> ERROR [vcf_om,0000000000000000,0000] [c.v.v.vapi.vsphere.VcenterVapiHelper,pool-5-thread-6] Exception occurred during VC vAPI invocation
java.util.concurrent.ExecutionException: com.vmware.vapi.std.errors.Unauthorized: Unauthorized (com.vmware.vapi.std.errors.unauthorized) => {
messages = [LocalizableMessage (com.vmware.vapi.std.localizable_message) => {
id = vapi.security.authorization.invalid,
defaultMessage = Unable to authorize user,
API calls fails for either SSO and the Service account created by SDDC manager, or only for the Service account test below
A. Run API calls from SDDC towards the impacted vCenter
Each API call will result in a Sesison ID [alphanumeric string]
# curl -ks https://<Impacted Vcenter>/api/session -u '[email protected]' -X POST | jq -r .
> password will be asked
11111AAAAAAAA11111AAAAAAA
# curl -ks https://<Impacted Vcenter>/api/session -u '<svc_account_craeted _by_SDDC>@vsphere.local' -X POST | jq -r .
> password will be asked
22222BBBBBBBBB2222BBBBBB
B. Create variables
for SSO admin
# session=11111AAAAAAAA11111AAAAAAA
the Service account
# session2=22222BBBBBBBBB2222BBBBBB
C. run API call from SDDC
# curl -ks https://<Impacted_Vcenter>/api/appliance/local-accounts/root -H "vmware-api-session-id: $session" | jq
{
"warn_days_before_password_expiration": 7,
"min_days_between_password_change": 0,
"roles": [
"superAdmin"
],
"fullname": "root",
"last_password_change": "<Date && Time>",
"enabled": true,
"has_password": true,
"max_days_between_password_change": -1
}
# curl -ks https://<Impacted_Vcenter>/api/appliance/local-accounts/root -H "vmware-api-session-id: $session2" | jq
{
"error_type": "UNAUTHORIZED",
"messages": [
{
"args": [],
"default_message": "Unable to authorize user",
"id": "vapi.security.authorization.invalid"
}
]
}Depending on scenario both or the service account API call will fail
Environment
VCF 9.X/ 9.1
Cause
Resolution
A. For the 1st scenario reset the STS certificate via vCert
B. for the 2nd scenario consider:
- rollback if it's an option, i.e rollback to the point where the ELM was not broken
or
- open a VMware support case, and reference KB 448583
Additional Information
ELM is deprecated in 9.X 9.1,. that doe not mean unsupported.
It remains as an after upgrade action:
https://techdocs.broadcom.com/us/en/vmware-cis/vcf/vcf-9-0-and-later/9-1/fleet-management/managing-identity-and-access-using-vcf-single-sign-on/what-is/points-to-consider-while-setting-up-vmware-cloud-foundation-sso/deactivate-enhanced-link-mode--elm--for-upgraded-vmware-cloud-foundation-vcenters.html
https://techdocs.broadcom.com/us/en/vmware-cis/vcf/vcf-9-0-and-later/9-0/fleet-management/what-is/points-to-consider-while-setting-up-vmware-cloud-foundation-sso/deactivate-enhanced-link-mode--elm--for-upgraded-vmware-cloud-foundation-vcenters.html
