Importing a vCenter in a VCF 9.1 environments, fails at "Perform Brownfield Environment Validations/ The Task was interrupted "

Products

• VCF Operations

Issue/Introduction

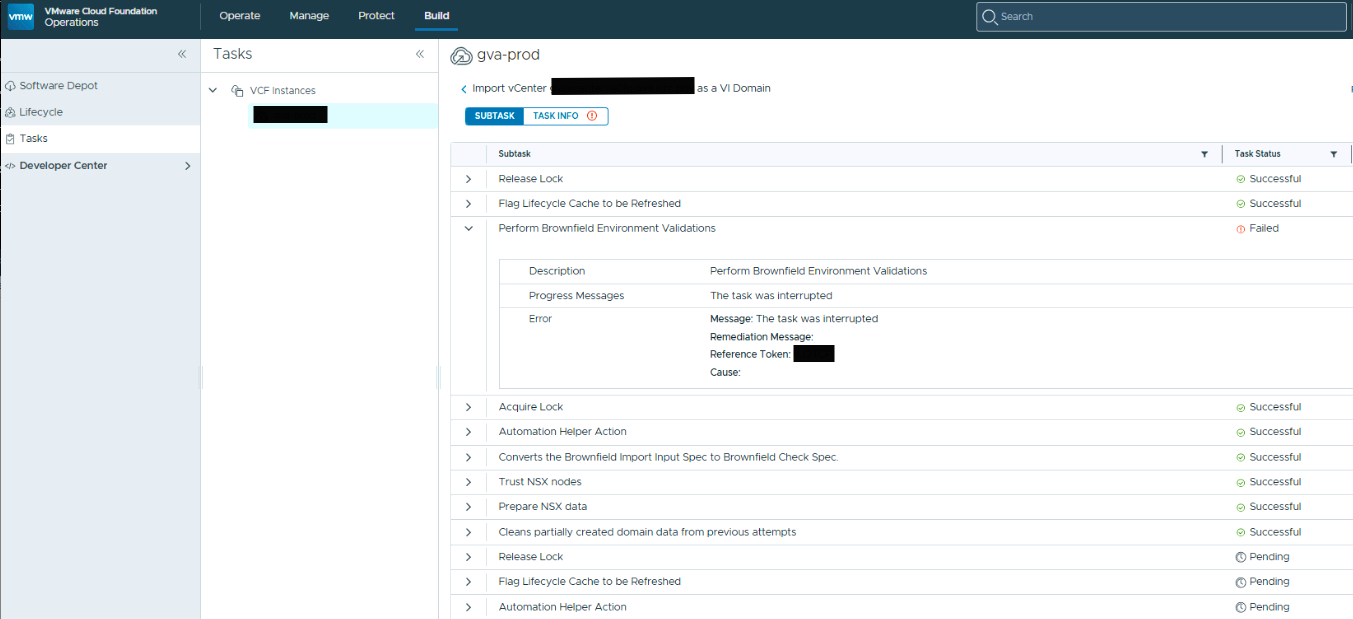

Importing a vCenter in a VCF 9.1 environments fails at "Perform Brownfield Environment Validations/ The Task was interrupted"



In the logs we'll see a Crash of domainmanager, where the date/ time coincides with the date/ time of the process stopping in the UI

ls -althr /var/log/vmware/vcf/domainmanager/app-crash-logs
total <TBD>G
-rw------- 1 vcf_domainmanager vcf 1.5G Month day time java_pid#####1.hprof
-rw------- 1 vcf_domainmanager vcf 1.4G Month day time java_pid#####2.hprof
-rw------- 1 vcf_domainmanager vcf 1.4G Month day time java_pid#####3.hprof
-rw------- 1 vcf_domainmanager vcf 1.4G Month day time java_pid#####4.hprof
-rw------- 1 vcf_domainmanager vcf 1.5G Month day time java_pid#####5.hprof
-rw------- 1 vcf_domainmanager vcf 1.5G Month day time java_pid#####6.hprof

Furthermore, the crash is confirmed in

└─$ cat domainmanager.out
\ \    / / ____|  ____|
 \ \  / / |    | |__
  \ \/ /| |    |  __|
   \  / | |____| |
    \/   \_____|_|
Domain Manager
java.lang.OutOfMemoryError: Java heap space
Dumping heap to /var/log/vmware/vcf/domainmanager/app-crash-logs/java_pid#######6.hprof ...
Heap dump file created [############# bytes in 81.488 secs]
Terminating due to java.lang.OutOfMemoryError: Java heap space

Environment

9.1

Cause

Larger environments can cause the domainmanager process to crash, similar to VCF 9.0.x vCenter import fails on precheck validation with: Something went wrong. Please retry or contact the service provider and provide the reference token.

However, the previous regular expressions are not found in the Logs - i.e. "OutOfMemoryError: Java heap space| OutOfMemory Error"

Resolution

Same steps as VCF 9.0.x vCenter import fails on precheck validation with: Something went wrong. Please retry or contact the service provider and provide the reference token.

To resolve this, increase the Java Heap Memory allocation for the DomainManager and for OperationsManager service.

1. Take snapshot of SDDC Manager VM


2. For the DomainManager


3. SSH to the SDDC Manager appliance using the vcf user and elevate to root using su


4. Stop the domainmanager service
   # systemctl stop domainmanager

5. Edit the service configuration file located at /etc/vmware/vcf/domainmanager/vcf-domain-manager.conf. Use a text editor like vi
   # vi /etc/vmware/vcf/domainmanager/vcf-domain-manager.conf


6. Locate the line containing the maximum heap size setting (it will include -Xmx512m) and change it to -Xmx8G:
   Original: -Xmx1024m
New: -Xmx8G
Save the file and exit the text editor.
Esc > :wq!


7. Start the domainmanager service
   # systemctl start domainmanager


8. For the OperationsManager


9. Stop the operationsmanager service
   # systemctl stop operationsmanager


10. Edit the service configuration file located at /etc/vmware/vcf/operationsmanager/vcf-operations-manager.conf. Use a text editor like vi
    # vi /etc/vmware/vcf/operationsmanager/vcf-operations-manager.conf


11. Locate the line containing the maximum heap size setting (it will include -Xmx2G) and change it to -Xmx8G:
    Original: -Xmx2G
New: -Xmx8G
Save the file and exit the text editor.
Esc > :wq!

12. Start the operationsmanager service
    # systemctl start operationsmanager


13. Retry the failed task.


14. NOTE: After the Import please revert back the heap size setting for both services back to the default values.
