Depot Service Configuration Fails with OAuth Authorization Server Connection Error

Products

• VMware SDDC Manager / VCF Installer
• VCF Operations

Issue/Introduction

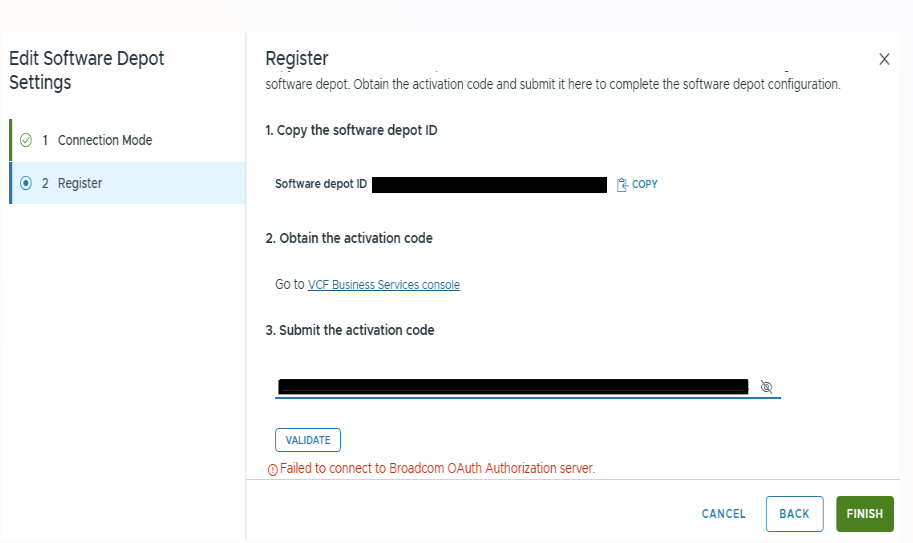

• Attempts to connect VCF Operations to the Online Depot fail with a connectivity error during the authorization phase. The following error appears in the UI: Failed to connect to Broadcom OAuth Authorization server.



• To verify the missing proxy configuration, review the download-service container logs within the Fleet Depot Service (FDS) pod on the VMware Cloud Foundation Management Services Provider (VMSP) by executing the following command:

  kubectl logs -n vcf-fleet-depot <pod-name> -c download-service returns a similar output:

  [FdsProxySettingsProviderImpl, ds-exec-3] Proxy configuration not present

Exception happened while processing the binary with id depotConfigcom.vmware.evo.sddc.common.core.error.InternalServerErrorException: Failed to connect to Broadcom OAuth Authorization ...
server Caused by: com.vmware.evo.sddc.lcm.depot_auth.exceptions.DepotAccessTokenIOException: java.net.UnknownHostException: eapi.broadcom.com: Temporary failure in name resolution

OR

  Depot Service configuration task has failed with error(s) Failed to connect to Broadcom OAuth Authorization server.. Please check connectivity to the server...

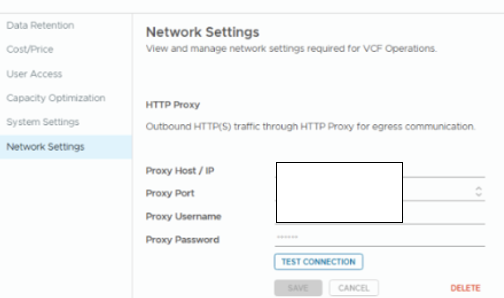

• Proxy is configured for the VCF Operations:

Environment

VMware Cloud Foundation Operations 9.1

VMware Cloud Foundation Management Services Provider (VMSP) 9.1

Cause

The Fleet Depot Service (FDS) in VCF 9.1 does not inherit proxy settings from the VCF Operations global configuration. This causes the download-service container to lack an egress path, resulting in connection failures to Broadcom endpoints (such as but not limited to eapi.broadcom.com, dl.broadcom.com).

Resolution

Follow either of the following methods to set up the proxy for VMSP:

1. Option 1 (Documentation): Configure a Proxy Server for VCF Management Services Components and VCF Automation
2. Option 2 (Script): Scripted process to configure a proxy on VCF Management Services and VCF Automation
