Aria Operations upgrade via Aria Suite Lifecycle fails with Error Code LCMVROPSYSTEM25008

Products

• VCF Operations

Issue/Introduction

When upgrading a multi-node VMware Aria Operations cluster from 8.18.6 to 8.18.7 via Aria Suite Lifecycle, the process fails during the automated orchestration phase.

Reviewing the environment surfaces the following symptoms:

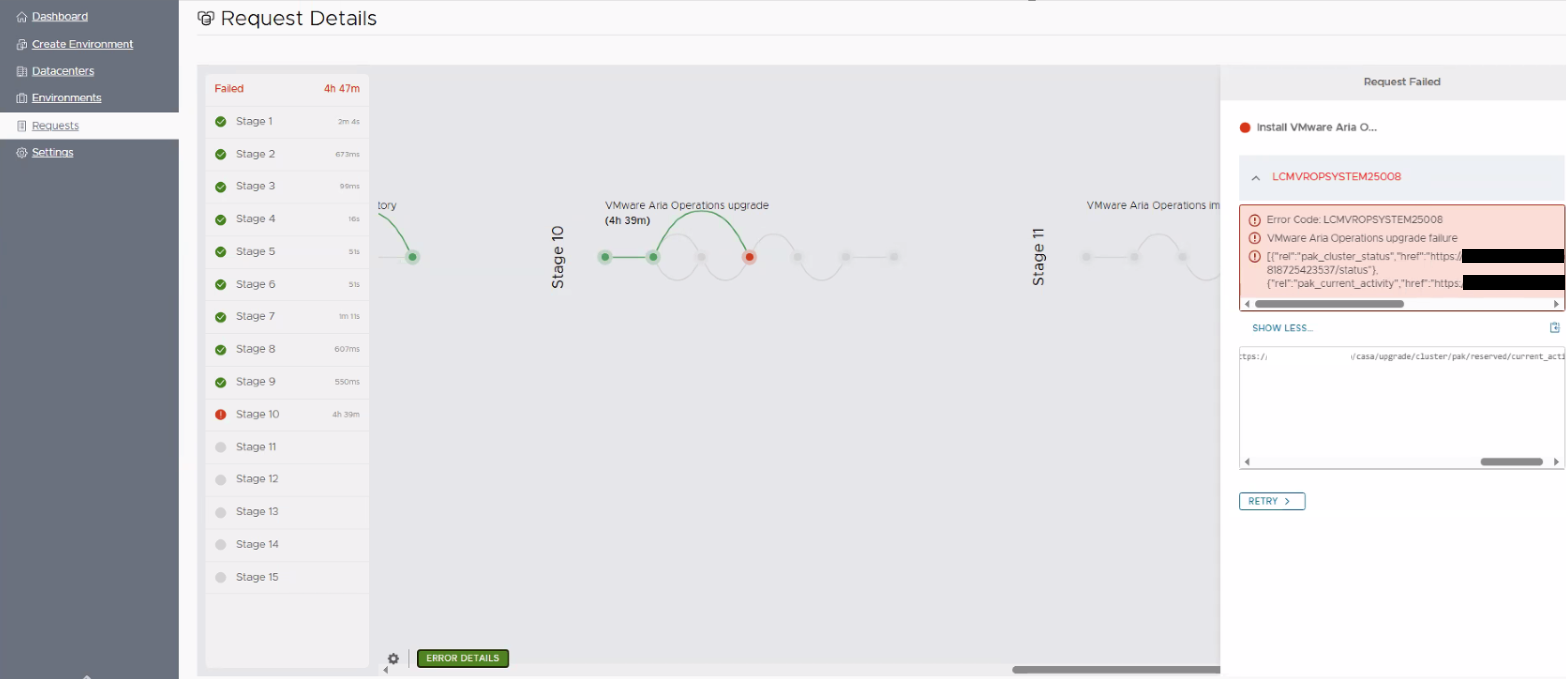

• Aria Suite Lifecycle throws a fatal deployment error task with the below error code:

  • Error Code: LCMVROPSYSTEM25008
  • VMware Aria Operations upgrade failure
  • [{"rel":"pak_cluster_status","href":"https://FQDN/casa/upgrade/cluster/pak/vRealizeOperationsManagerEnterprise-818725423537/status"},{"rel":"pak_current_activity","href":"https://FQDN/casa/upgrade/cluster/pak/reserved/current_activity"}]

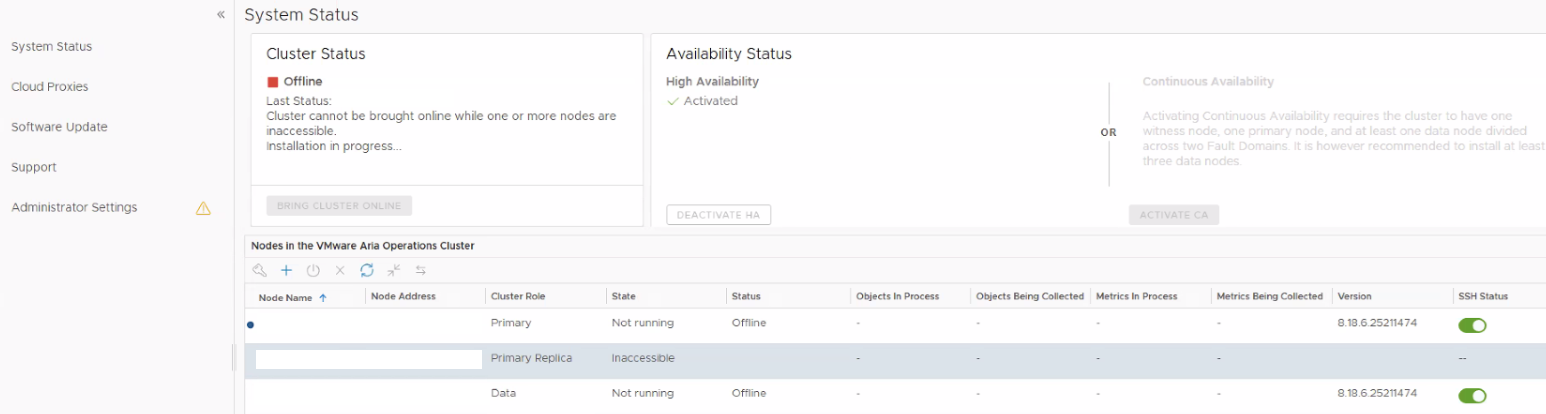

• One or more cluster nodes (such as the Replica or Data nodes) become completely unresponsive and fail to rejoin the cluster.

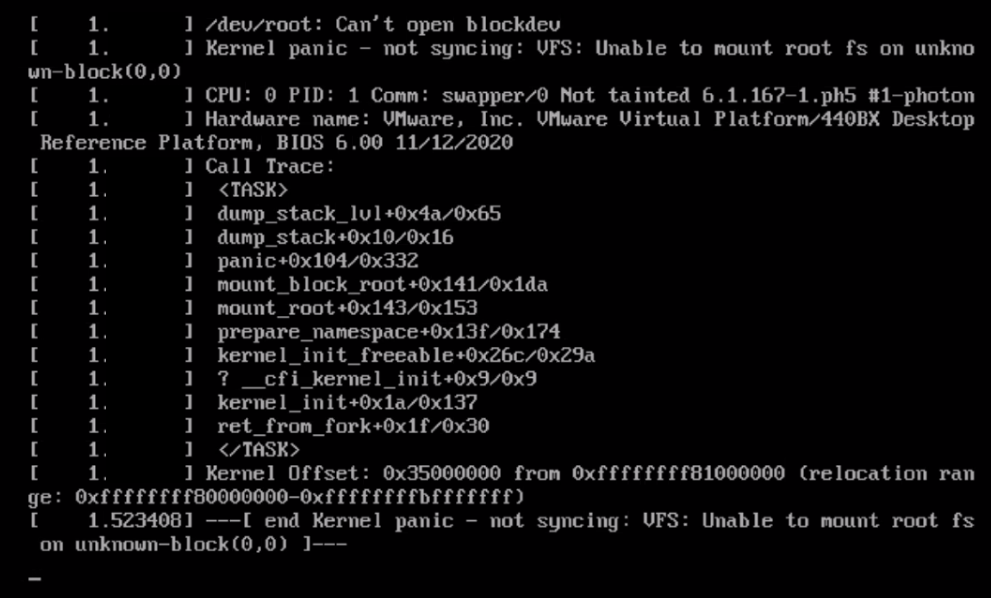

• Direct virtual machine web console access via the vCenter Web Client reveals that the Replica (or any other node) node is completely stuck in a terminal Kernel Panic state, preventing the guest operating system from completing its boot sequence.

Environment

Aria Operations 8.18.x

Cause

This issue occurs when an individual cluster node encounters an unrecoverable operating system or storage-layer corruption during the mid-upgrade reboot cycle.

Because the Aria Operations upgrade routine uses a rolling restart strategy, the master installation daemon (InstallvROpsProductUpgradePakTask) waits for each node to reboot and establish an administrative handshake. If a node fails to boot due to an underlying OS boot loader modification, a corrupted initramfs/GRUB layout, underlying virtual disk (VMDK) block degradation, or unexpected virtual storage controller reconfigurations, the upgrade times out and aborts the entire cluster operation.

Resolution

Step 1: Rollback the Cluster to Clean Baseline Snapshots

Since the operating system on the panicked node is corrupted, the environment must be reverted.

1. Log into your managing vCenter Server web client.

2. Gracefully shut down any remaining operational Aria Operations nodes.

3. Revert all cluster virtual machines (Primary, Replica, Data, and associated Cloud Proxies) to their clean, pre-upgrade snapshots.

4. Power the cluster virtual machines back on and verify that all nodes boot cleanly to an operational state.

Step 2: Prepare the Cluster and Capture Fresh Snapshots

1. Log into the Aria Operations Admin UI (https://<Aria-Ops-FQDN>/admin).

2. Bring the application cluster Online to confirm data fabric integrity.

3. Once verified, click Take Cluster Offline to place the data database into a safe, non-volatile state.

4. Return to vCenter and take fresh, synchronized snapshots across all cluster nodes following the structured rules in Snapshot Creation in VMware Aria Operations.

5. Once snapshots are completed, bring the cluster back Online via the Admin UI.

Step 3: Execute the Upgrade via the Native Admin UI

Bypass Aria Suite Lifecycle to prevent management timeout interruptions:

1. Download the appropriate .pak upgrade file from the Broadcom Support Portal.

2. In the Aria Operations Admin UI, navigate to the Software Update section in the left panel.

3. Click Install a Software Update and follow the prompts to upload and stage the .pak file.

4. Complete the installation wizard. The cluster nodes and connected Cloud Proxies will complete their rolling upgrade phases successfully.

Step 4: Re-align Aria Suite Lifecycle via Inventory Sync

1. Once the Admin UI reports that all nodes and Cloud Proxies are healthy at the updated version, log into the Aria Suite Lifecycle appliance.

2. Select Lifecycle Operations > Environments > View Details for the Aria Operations environment.

3. Click on the 3 dots (...) and select Trigger Inventory Sync.

4. Allow the sync task to complete successfully. This updates the lifecycle's internal inventory mapping to recognize the cluster's upgraded status.
