Kubernetes Clusters Not Visible in VCF Automation Tenant Portal

Products

• VCF Automation

Issue/Introduction

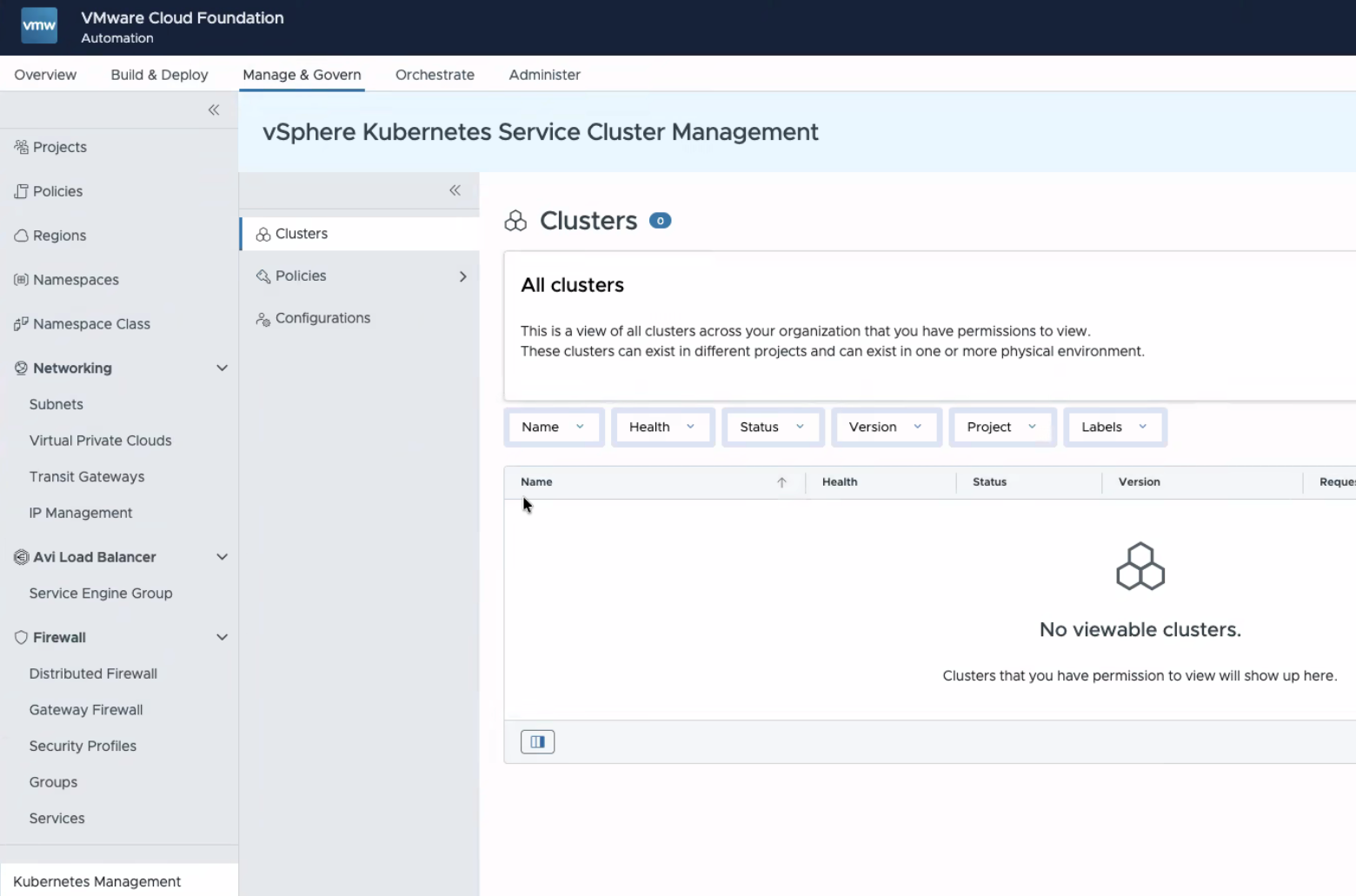

When navigating to VCFA Tenant Portal > Manage & Govern > Kubernetes Management > Clusters, No viewable clusters are populated. You'll not be able to see any clusters listed in this page, though the VKS Clusters have been already deployed.

Environment

VCF Automation 9.1

Cause

This issue occurs because the Supervisor Management Proxy service has not been deployed or is improperly configured, preventing the communication between the auto-attach service that runs in the Supervisor and the VKS cluster management feature in VCF Automation.

Resolution

Configuring the Supervisor Management Proxy to Enable VKS Cluster Management. So that the auto-attach service and VKS cluster management can function properly, you must deploy the Supervisor management proxy with specific configuration in the YAML file.

1. From the official Broadcom Support Portal, download the

   Supervisor

   Management Proxy YAML manifest file(supervisor-management-proxy.yml).
2. In your

   vCenter

    instance, navigate to

   Supervisor Management

   Services

    and click the

   New service

    tile.

   Verify that vSphere Supervisor Control Plane VM is not of Small size.
3. Upload the

   Supervisor

    Management Proxy YAML.
4. Configure the

   Supervisor

    Management Proxy service for a selected

   Supervisor

   .


   1. Select the

      Supervisor Management Proxy

       service.
   2. Select

      Action

      Manage Service

      .
   3. Select the

      Supervisor

       for which you want to configure the

      Supervisor

       Management Proxy service.
   4. Use the following configuration for the YAML file(replace the FQDN with your VCF Automation instance):

       vksmHTTPRemoteEndpoint:
        host: <vcfa-FQDN>
        port: 443
      vksmAPIPort: 10094


5. Navigate to VCFA Tenant Portal > Manage & Govern > Kubernetes Management > Clusters, you'll be able to see the clusters.

Additional Information

Configuring the Supervisor Management Proxy
