vMotion fails for VMs on NSX-prepared DVS regular port groups

Products

• VMware NSX

Issue/Introduction

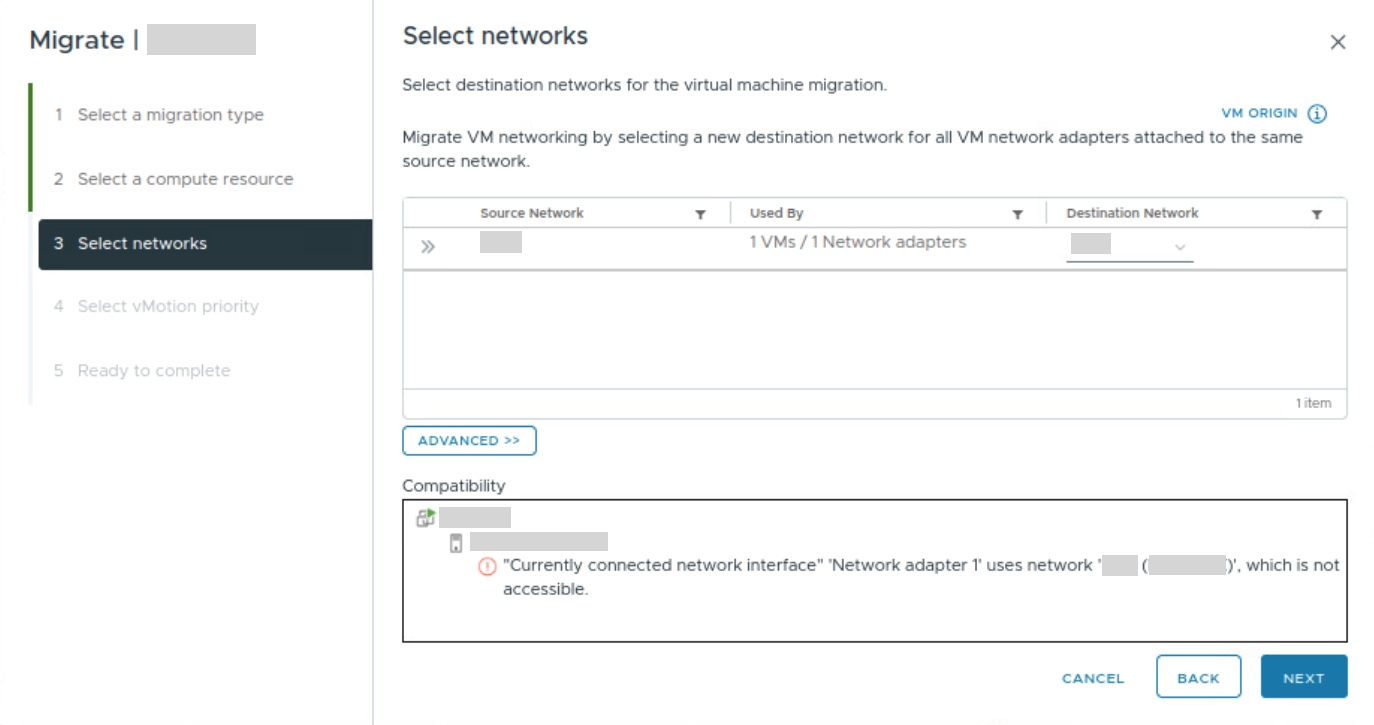

• Attempting to vMotion fails with the following error:


  "Current connected network interface" 'Network adapter #' uses network '<PortGroup_Name> (<DVS_Name>)', which is not accessible.



• Running the net-dvs -l command on the destination ESXi host for the target DVS yields the following result:


  [root@<Destination_ESXi>:~] net-dvs -l
  switch ## ## ## ## ## ## ## ##-## ## ## ## ## ## ## ## (vswitch)
  ...
  	host properties:
  		com.vmware.common.host.volatile.overlay.status = red nsxa down, 	propType = RUNTIME
  ...

Environment

VMware NSX

Cause

• This issue can occur if there is a connectivity problem between the target ESXi host and the NSX Manager. A connectivity issue between the ESXi host and the NSX Manager does not trigger this problem immediately. However, if the target ESXi host or the nsx-opsagent is restarted while the connectivity issue persists, the status changes to com.vmware.common.host.volatile.overlay.status = red nsxa down, at which point the issue manifests.
• Even if NSX has been uninstalled, this issue may still occur if com.vmware.common.host.volatile.overlay.status remains on the target DVS due to an issue similar to the one described in KB#416818. If this is the case, perform the steps outlined in the Resolution section of KB#416818.

Resolution

Resolve the connectivity issue between the target ESXi host and the NSX Manager.
