CIDR notation required for IP allocation during VCF Automation upgrade

Products

• VCF Operations

Issue/Introduction

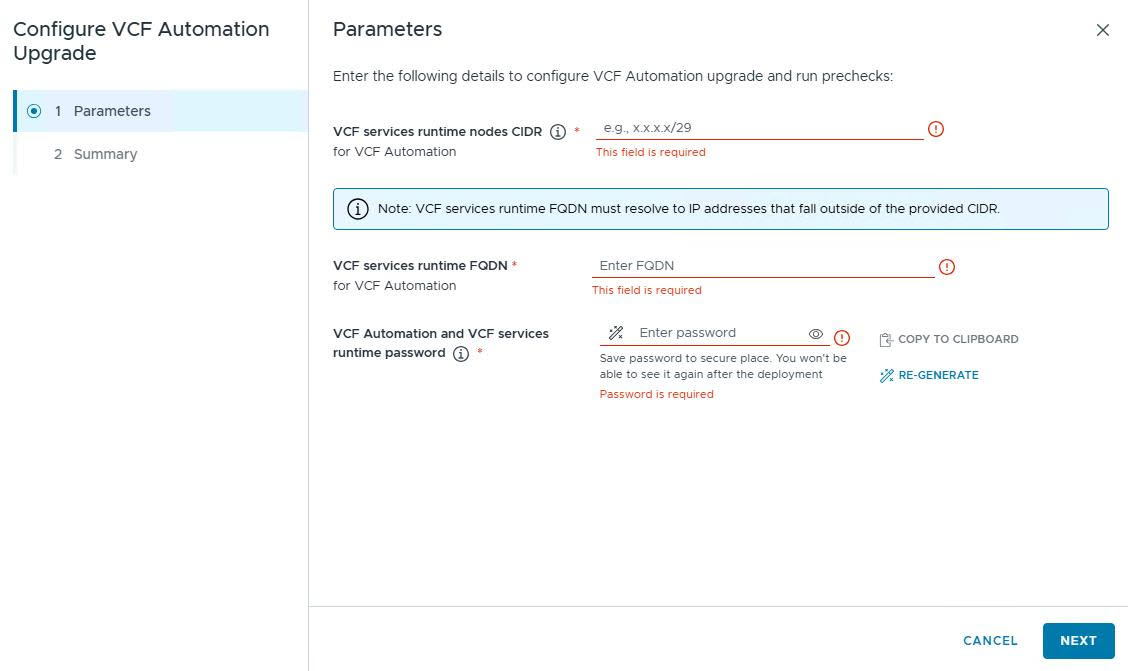

When attempting to import or upgrade VCF Automation, the configuration prechecks require a CIDR notation for IP allocation.

Environment

• VCF Operations 9.1.0
• VCF Automation 9.1.0

Cause

This is a product limitation. The upgrade process currently requires a valid CIDR to pass configuration prechecks.

Resolution

Currently the options are:

1. Identify a range of 8 contiguous IP addresses (a /29 CIDR) on the management VLAN to dedicate to the VCF Automation services.
2. Ensure this CIDR range is routable within the management network and does not overlap with existing subnets.

Additional Information

For more information refer to documentation : Perform the Upgrade to VCF Automation 9.1
