NSX edge is showing 'MPA connectivity down'

Products

• VMware NSX

Issue/Introduction

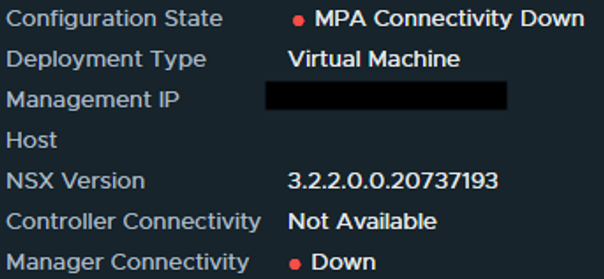

• NSX Edge shows MPA (Management Plane Agent) connectivity as Down.



• NSX Manager reports manager connectivity as Down.
• Edge is connected to NSX port-group and running 'nsxdp-cli vswitch instance list' on the host shows the Uplink status as 'void' for the Edge VM interfaces.

  [root@####:~] nsxdp-cli vswitch instance list
DvsPortset-1 (N-VDS-##-##)        ## ## ## ## ## ## ## ##-## ## ## ## ## ## ## ##
Total Ports:## Available:##
  Client                         PortID          DVPortID                             MAC                  Uplink
  Management                     ####                                                00:00:00:00:00:00    n/a
  vdr-vdrPort                    ####            vdrPort                             02:50:56:56:44:52    void
  nsx####.eth0                   ####            ####-####-####-####-####            00:##:##:##:##:##    void

Note: If the edge is not connected to NSX port-group then use 'netdbg vswitch instance list' command.

Environment

VMware NSX

Cause

The switch (N-VDS or VDS) on the host lacks an assigned physical uplink in the teaming policy. Without a valid uplink mapping, the switch cannot pass traffic out of the host, causing the Edge VM to lose connectivity to the Management Plane.

Resolution

Assign a valid physical uplink to the host switch configuration in NSX Manager.

Additional Information

Reference -
Step 3: Create an Uplink Profile and Configure Host Transport Nodes
