ArgoCD pods failing to schedule on VKS cluster

Products

• VMware Avi Load Balancer

Issue/Introduction

ArgoCD pods fail to schedule in VKS Cluster. Warnings in "kubectl describe pod" output show these errors or similar:

Warning  FailedScheduling  2m51s (x33 over 13m)  default-scheduler  DRS cannot find a host to power on or migrate the virtual machine.

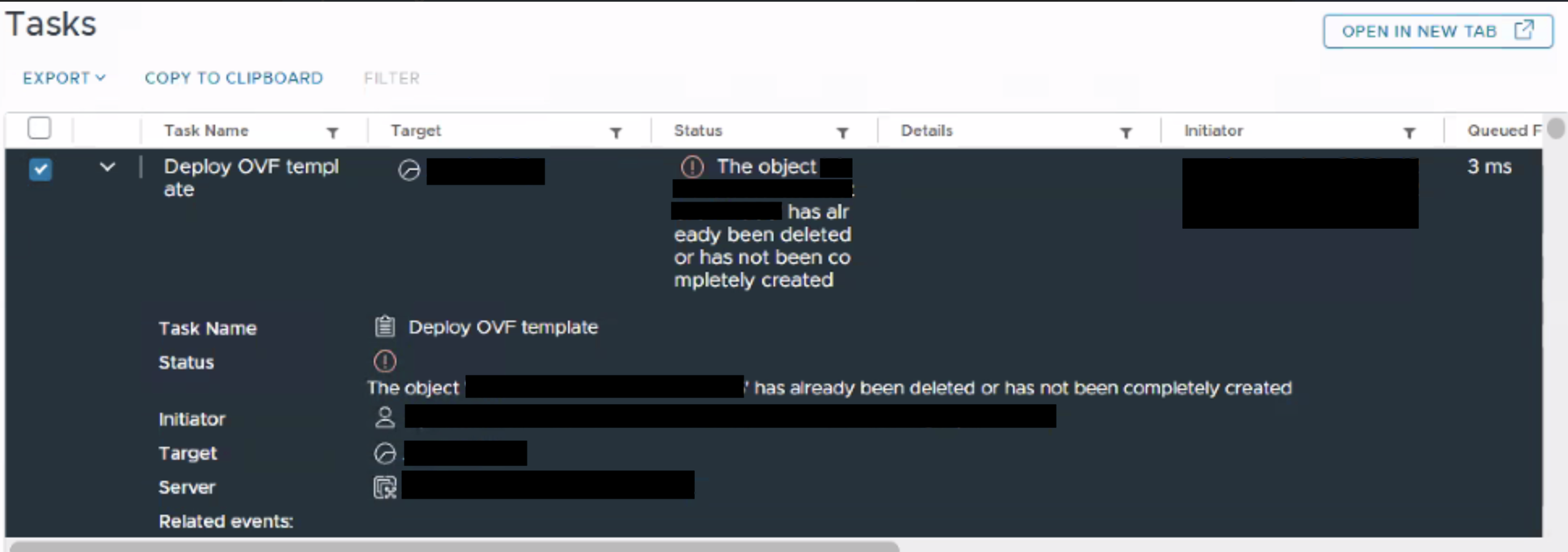

Additionally, on the vCenter side you might see issues with deploying OVF templates due to a datastore that has been "deleted or not been completely created".

Cause

ESXi hosts are configured with swap file locations that are referencing invalid or nonexistent datastores. This can happen even if configured to be set at default same location as the virtual machine's configuration file.

Resolution

Update swap file locations for the hosts to use specific datastores that are known to work.
