Validation Failed while installing the CA Spectrum Connector for CA Service Operations Insight (SOI)

book

Article ID: 4450

calendar_today

Updated On:

Products

CA Spectrum

Issue/Introduction

The following error message is displayed while installing the CA Spectrum Connector for CA Service Operations Insight (SOI):

<SpectroSERVER hostname> is either an invalid Spectrum Server or not integrated with the OneClick server <OneClick hostname>

Cause

Use of tab instead of spaces in the web.xml file when adding the new line for the GdEventServlet.



Review the CA Spectrum Connector for CA Service Operations Insight installation log (CA-Spectrum_Connector_InstallDebug.log) in the %TEMP% folder.


The following relevant entries are in the %TEMP%/CA-Spectrum_Connector_InstallDebug.log file:

Check HTTP connection for ocUrl=http://<OneClick hostname>:<port>/spectrum/restful/landscapes

Unexpected IOException!

java.io.IOException: Server returned HTTP response code: 500 for URL: http://<OneClick hostname>:<port>/spectrum/restful/landscapes

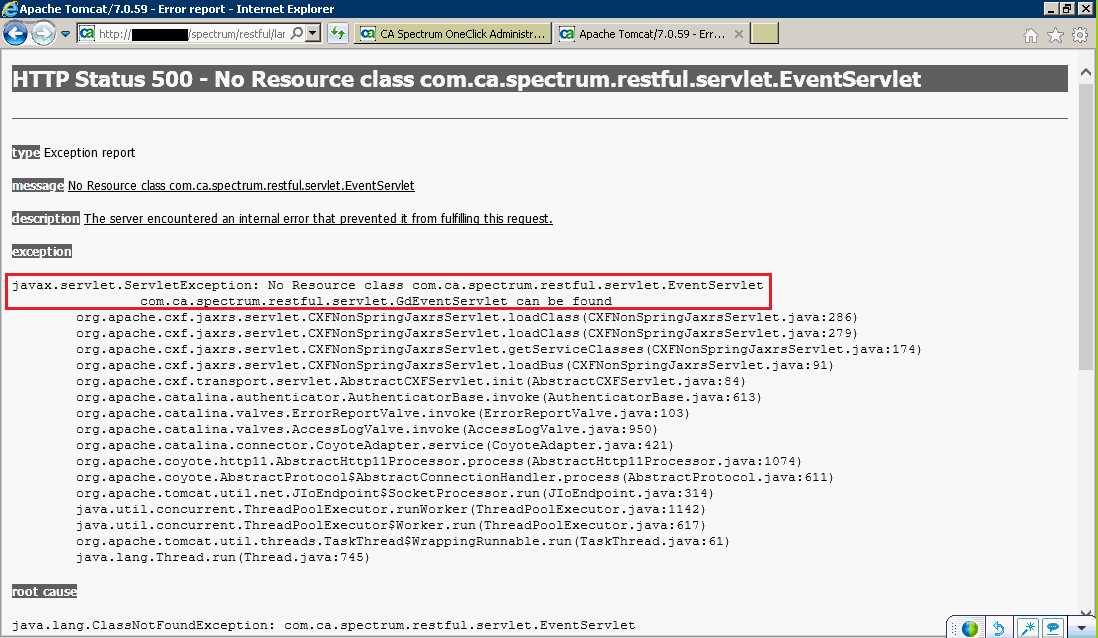

If you try to open the following URL you will get the same kind of error: "HTTP Status 500 - No Response class com.ca.spectrum.restful.servlet.EventServlet"

http://<OneClick hostname>:<port>/spectrum/restful/landscapes

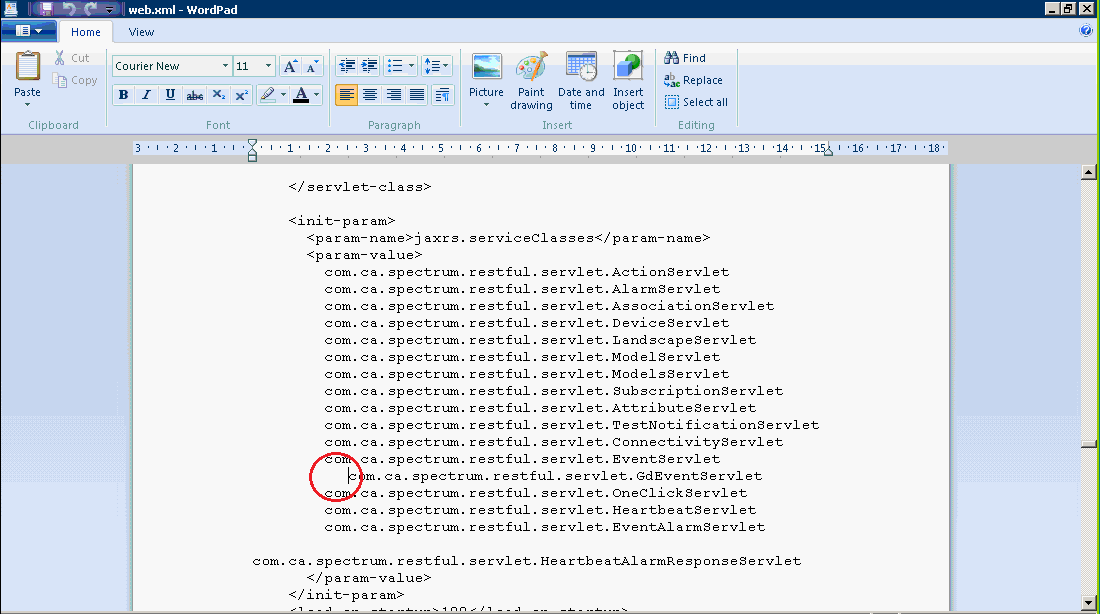

When you open the $SPECROOT/tomcat/webapps/spectrum/WEB-INF/web.xml file in WordPad, you notice the column is not aligned for the GdEventServlet entry.



Environment

Integration of Spectrum and SOI

Resolution

Remove the tab from the web.xml file. Replace it with the appropriate number of spaces (space bar key) to align the new GdEventServlet entry with the others it sits below in the file.

After making the change, the tomcat web server on the Spectrum OneClick web server will need to be restarted.



Attachments

1558691891526000004450_sktwi1f5rjvs16gr8.png get_app
