vSAN Data Protection Appliance Plugin failed to load with error "502 Bad Gateway"

book

Article ID: 444013

calendar_today

Updated On:

Products

VMware vSAN

Issue/Introduction

vSAN Data Protection Appliance Plugin failed to install on VMware vSAN 8.0.3 Express Storage Architecture (ESA) using vSAN data protection (Snap-Service) version 8.0.3.

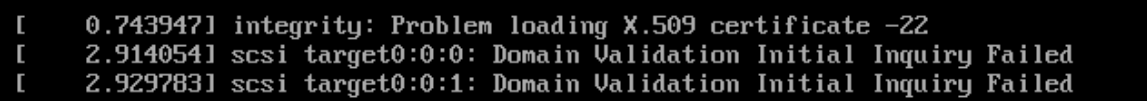

  • Data protection appliance  boot screen show the events 'integrity: Problem loading X.509 certificate'

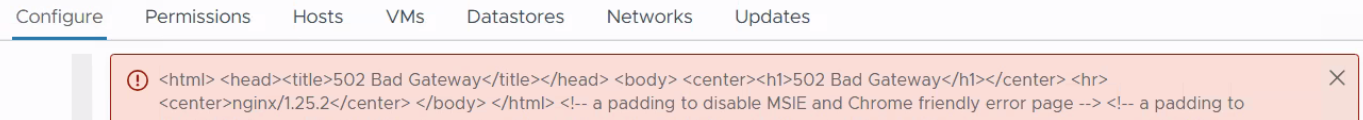

  • snap-service plugin failed to load on vCenter server reporting below error on UI.

    <body> <center><h1>502 Bad Gateway</h1></center> <hr>
    <center>nginx/1.25.2</center> </body> </html> <!-- a padding to disable MSIE and Chrome friendly error page -- >

  • Upon verifying snap-service-panic.log on appliance, It is observed that the snap-service container is restarting with panic with event 'panic: Failed to initialize VC client'.

gitlab.eng.vmware.com/core-build/vsan_snapshot_service/pkg/server/vsphere/auth.initPersistentVCClient.func2()/build/mts/release/bora-24496861/snapservice/pkg/server/vsphere/auth/client.go:266 +0x11a
sync.(*Once).doSlow(0xc0005003a0?, 0xc000573ec0?) /build/mts/release/bora-24496861/compcache/cayman_go/ob-22775640/linux64/src/sync/once.go:74 +0xbf
sync.(*Once).Do(...)
        /build/mts/release/bora-24496861/compcache/cayman_go/ob-22775640/linux64/src/sync/once.go:65
gitlab.eng.vmware.com/core-build/vsan_snapshot_service/pkg/server/vsphere/auth.initPersistentVCClient({0x196ca30, 0xc000573ec0}, {{0x196ecc0?, 0xc00039ec90?}, 0x20001?}, 0xc00017ed10)
        /build/mts/release/bora-24496861/snapservice/pkg/server/vsphere/auth/client.go:258 +0x2ef
gitlab.eng.vmware.com/core-build/vsan_snapshot_service/pkg/server/vsphere/auth.Client.GetVimClient(...)
        /build/mts/release/bora-24496861/snapservice/pkg/server/vsphere/auth/client.go:79
        /build/mts/release/bora-24496861/snapservice/cmd/service/snapshot_service.go:30 +0x125
panic: Failed to initialize VC client

Environment

  • VMware vSAN 8.0.3 Express Storage Architecture (ESA)

  • vSAN Data Protection (8.0.3)

Cause

  • The issue is caused by multiple DNS entries in the vCenter Certificate and snap-service unable to match the user provided VC hostname with the hostname being read from the VC certs retrieved from the SSL connection. This results in snap-service (data protection) container to crash.

  • snap-service.log  on vSAN Snap Service appliance show below events.

{"level":"info","timestamp":"2026-05-18T06:07:05.920Z","C":"fxevent/zap.go:122","message":"invoking","function":"gitlab.eng.vmware.com/core-build/vsan_snapshot_service/pkg/initializer.CreateServiceAccount()"}
{"level":"info","timestamp":"2026-05-18T06:07:05.921Z","C":"vcenter/service_accounts.go:265","message":"Sending create new svc account request..."}
{"level":"info","timestamp":"2026-05-18T06:07:05.921Z","C":"auth/client.go:711","message":"Creating new VC REST client"}
{"level":"error","timestamp":"2026-05-18T06:07:05.925Z","C":"auth/rest_client.go:40","message":"HTTP request failed with non-HTTP error;","srv":"https://####.###.com","path":"/rest/com/vmware/cis/session","query":"","args":null,"error":"Post \"https://####.###.com/rest/com/vmware/cis/session\": tls: failed to verify certificate: x509: certificate signed by unknown authority","S":"gitlab.eng.vmware.com/core-build/vsan_snapshot_service/pkg/server/vsphere/auth.

  • The DNS entries in the certificates can be verified by running the command below on vCenter server shell.

openssl s_client -connect <vCenter_FQDN>:443 </dev/null 2>/dev/null | openssl x509 -noout -text  | grep DNS

  • We see vCenter server certificate has two DNS entries as below.

DNS:###.###.com, DNS:####.###.com

Resolution

This is a known issue with vSAN data protection (snap-service) version 8.0.3 when vCenter certificate is using two DNS entries. The issue is fixed in vSAN Data Protection (snap-service) version 8.0.3.1. Build Number: 24755667

  1. vSAN Data Protect Appliance can be downloaded using the Download Link.

  2. Select Drivers and tools

  3. Search for VMware vSAN Snapshot Service Appliance 8.0U3a

  4. Download snapservice_appliance-8.0.3.1-24755667.iso(4.03 GB) Build Number: 24755667

Upgrading/deploying with vSAN Data Protection (snap-service) version 8.0.3.1 address the multiple DNS entries in vCenter certificate and allow the data protection (snap-service) container to stay stable. Once the snap-service container is healthy, the plugin would show up healthy.
