Unable to edit/ cancel the upgrade plan for a workload domain, from SDDC UI or VCF Ops UI when upgrading to VCF 9.1

Products

• VCF Operations

Issue/Introduction

Unable to edit the upgrade plan for the workload domain, from SDDC UI or VCF Ops UI when upgrading to VCF 9.1.

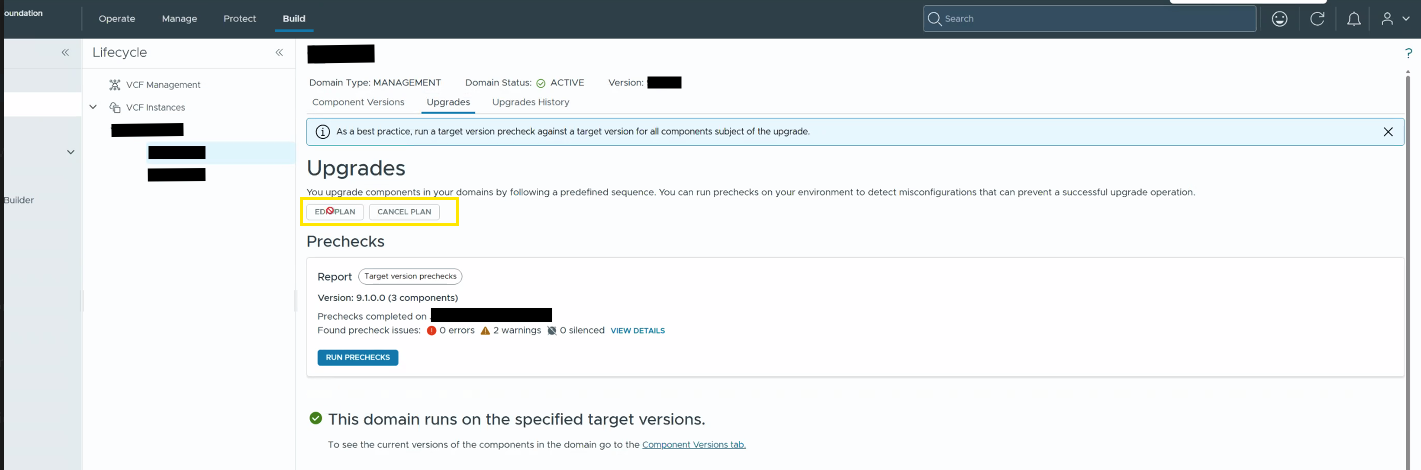

Although the Upgrade Plan is run/ created on the VCF Ops UI, the same status view will be reflected on the SDDC side, under Workload domains > domain TBD > Upgrades.
Both UIs show the same status locked/ grayed out for either Edit or Cancel Plan.

Environment

9.1

Resolution

1. Use the same approach from https://knowledge.broadcom.com/external/article/402294/error-on-sddc-manager-ui-bundle-managem.html by deleting the stuck plan, via  Developer Center > API call


2. Get Domain ID via CLI from SDDC manager
   ssh on SDDC manager with vcf
   su to root
   # su -i


   # psql -U postgres -h localhost -d platform -c "\x" -c "select id, name from domain;"
   Expanded display is on.
   -[ RECORD 1 ]------------------------------
   id   | <This UUID is needed>
   name | <Domain name>


   Or run API call from Developer Center in the user Interface
   -> filter for Domain
   -> open Domains
   -> open GET   /v1/domains   Execute  Download response body and review the JSON

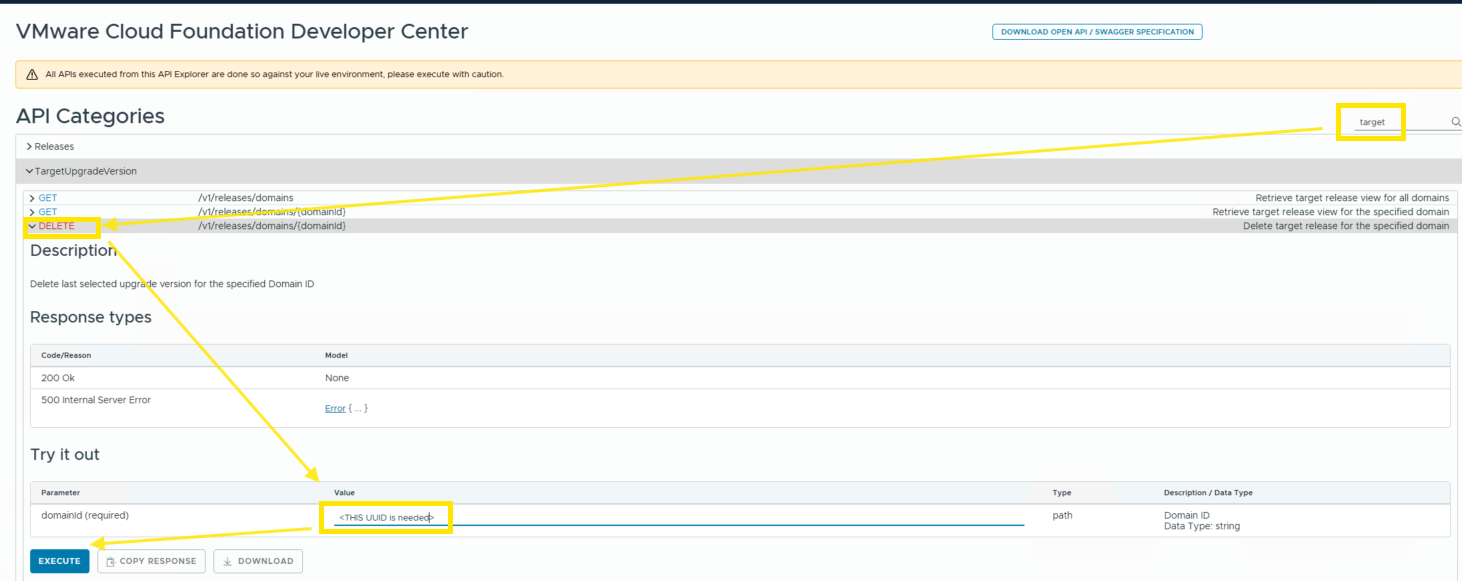

3. remove via Developer Center API in SDDC
   -> filter for target
   -> select DELETE /vi/releases/domains/{domainid}
   -> copy paste <THIS UUID is needed> see step 2
   -> execute




4. Plan will be removed from the impacted domain, new plan can be created and edited
