Error 90011 "Failed to enable trust on Compute Manager" in NSX after vCenter Server certificate replacement

Products

• VMware NSX

Issue/Introduction

• The Compute Manager in the NSX UI reports as DOWN instead of UP.
• Your NSX managers are configured with a system proxy.

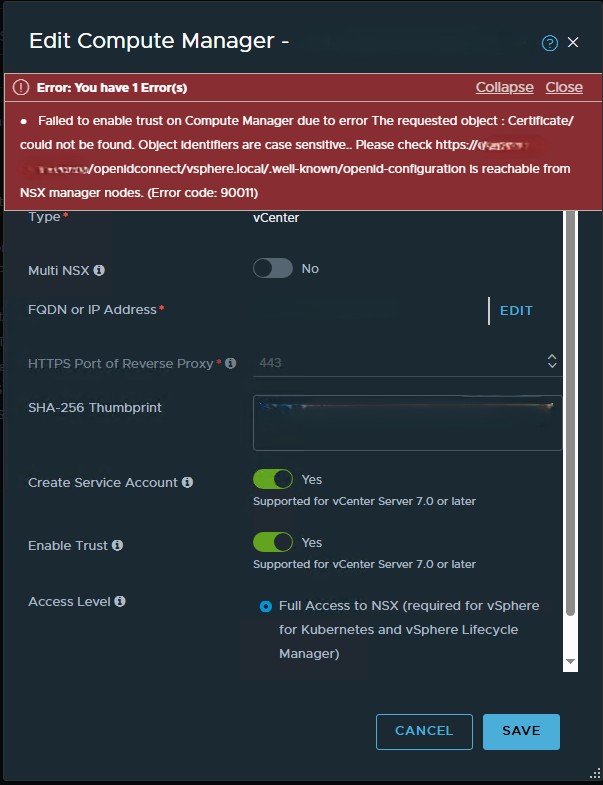

• The following error is observed in the NSX Compute Manager UI when updating the Compute Manager settings in order to update its certificate thumbprint:
  Failed to enable trust on Compute Manager due to error The requested object : Certificate/ could not be found. Object Identifiers are case sensitive.. Please check https://<VC PNID>/openIdconnect/vsphere.local/.well-known/openId-configuration is reachable from NSX manager nodes. (Error code: 90011)

• The error persists after running the lsdoctor tool on the vCenter Server or updating the thumbprint entry for the vCenter in the NSX database

Environment

VMware NSX 4.x

VMware vSphere 8.x

Cause

During the thumbprint replacement in NSX the deletion of the old endpoint record is successful but the creation of the new endpoint record fails, because the thumbprint values for the certificate presented on different ports of the vCenter Server is mismatching.

This can be caused by a firewall or proxy handling the HTTPS connectivity between the vCenter Server and the NSX manager nodes, such as by injecting different certificate data for security or inspection purposes, or by caching the original certificate for the vCenter.

Resolution

Disable the NSX managers' HTTPS proxy from System > General Settings in the NSX UI.

Additional Information

If there is no proxy configuration set on the NSX managers, check instead for situations where the vCenter Server's new certificate was not applied to all of its outgoing services.
