Complete Checksum is not visible when uploading Upgrade package in PAM GUI

Products

• CA Privileged Access Manager (PAM)

Issue/Introduction

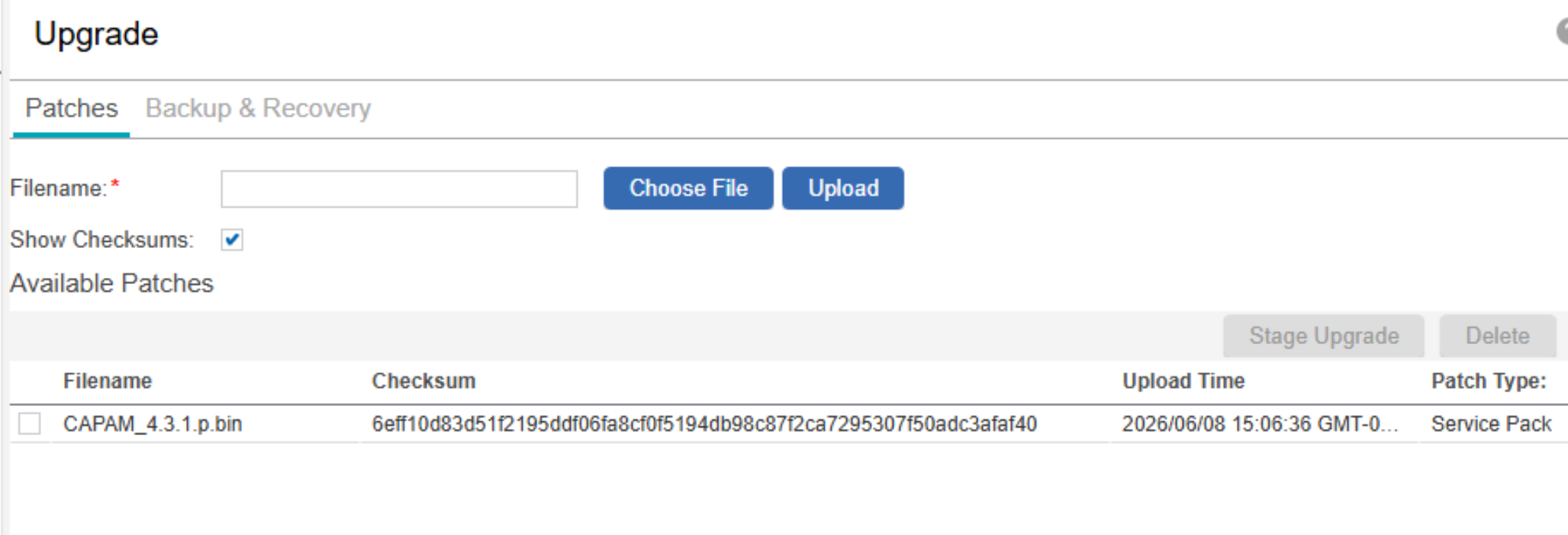

When uploading a file to upgrade PAM, the ending characters of the checksum may be truncated or hidden by default in the user interface. This occurs even if browser font sizes are adjusted.

Environment

PAM 4.3.0, 4.3.1 GUI Upgrade Page

Cause

The 'Checksum' column width is restricted by the default positioning of the adjacent 'Upload Time' column.

Resolution

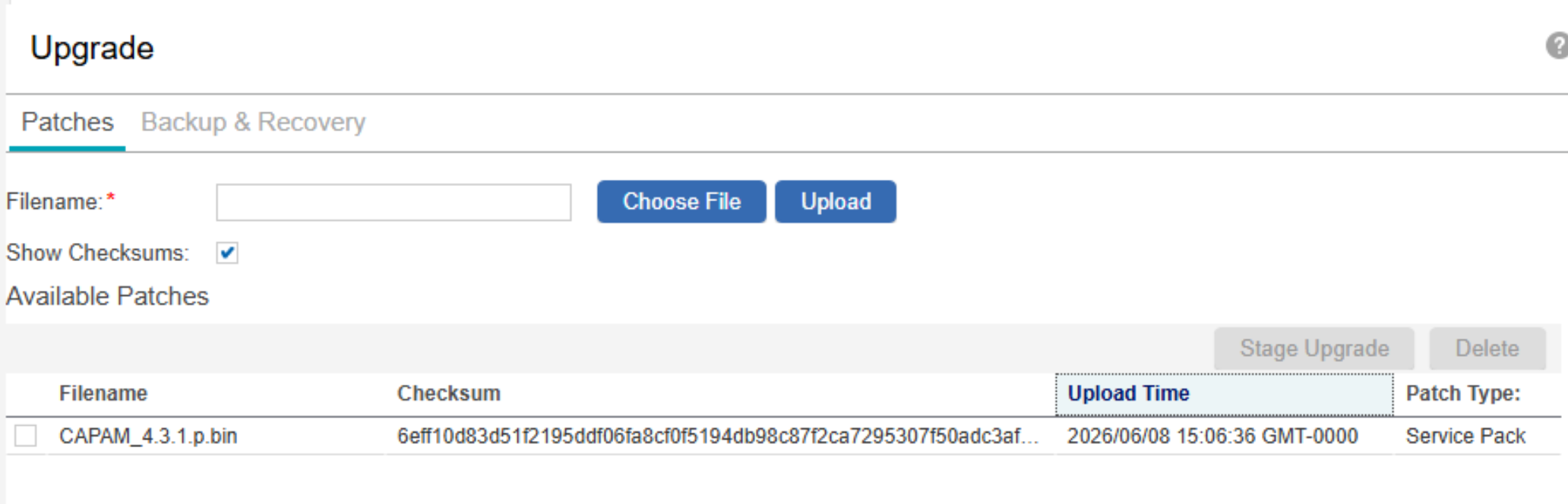

To view the full checksum, manually adjust the column width in the GUI:

- Hover the mouse cursor over the divider line between the Checksum and Upload Time column headers.
- Click and drag the divider to the right to expand the Checksum field.

The full string will now be visible for verification.

Additional Information

Note: Changing browser font or zoom settings does not automatically resolve the truncation.
