VIDB shows as not configured after upgrade - VCF Operations 9.1

Products

• VCF Operations

Issue/Introduction

• Multiple VCF instances are registered in VCF operations under Administration → Integrations → VMware Cloud Foundation
• One of the SDDC management domains is running version 9.1 while its associated vCenter is still on version 8.0.x.
• IDP is already configured in VIDB and SSO users can sign in successfully

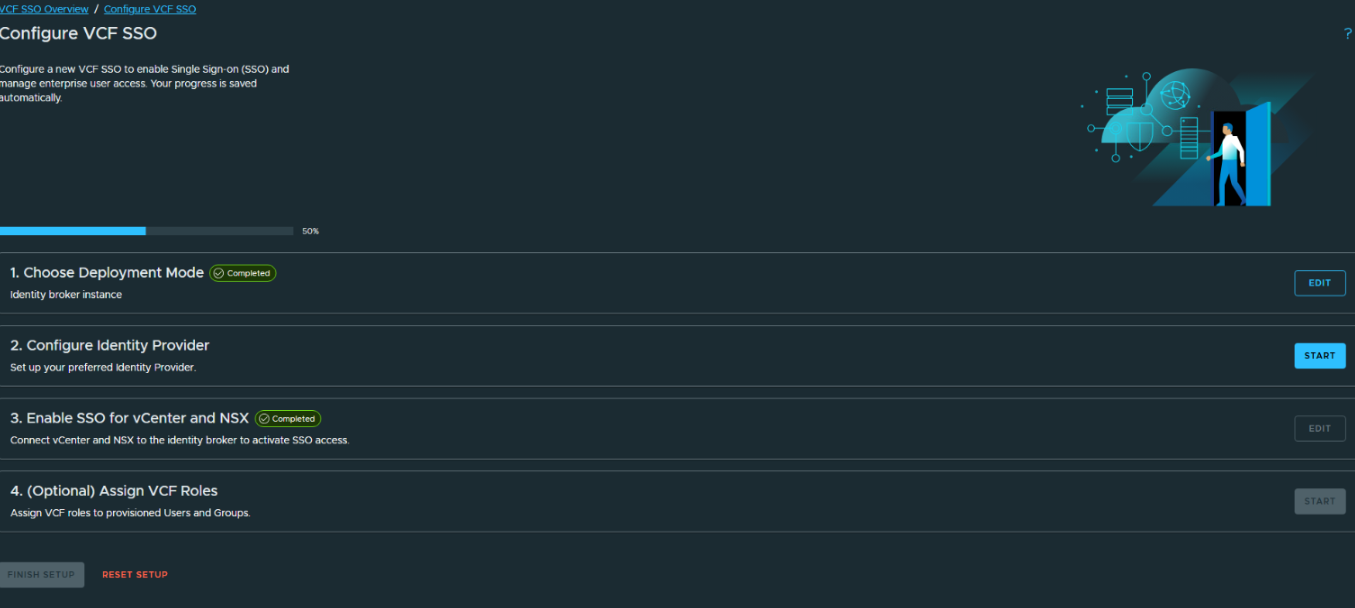

• The UI shows Start next to Configure Identity provider when navigating to Manage → Fleet Management → VCF SSO Overview → Configure VCF SSO

Environment

• VCF Operations 9.1.x
• vCenter 8.0.x

Resolution

Note: Only proceed with these steps if you are experiencing the symptoms described in the Issue/Introduction.

Prerequisites:

Requirement	Detail
Credentials	A suite-api username and password with sufficient privileges
Run as	root
Run on	The VCF Operations primary node

Instructions for running the script:

1. Download the update-current-state.sh attachment provided below
2. Use Winscp or scp utility to copy the script to VCF Operations tmp directory:

   scp update-current-state.sh root@<vrops-hostname>:/tmp/

3. SSH into the vrops node as root:

   ssh root@<vrops-hostname>

4.  Execute the script:

   bash /tmp/update-current-state.sh

5. The script will ask you for several details. Please enter them when prompted.
6. Once completed navigate to Manage → Fleet Management → VCF SSO Overview → Confirm Identity Broker is visible
