SQLCODE = -803 when exporting Gen 8.6 HE model to PI tables
Article ID: 442810
Updated On:
Products
Issue/Introduction
Attempted export of model from Gen 8.6 Host Encyclopedia (HE) to Public Interface (PI) tables fails with a duplicate value error during the INSERT INTO USE_DATA_SENT or INSERT INTO USE_DATA_RTND phase.
In this example the error is:
*****
RUN PROGRAM(TIPTABLX) PARMS ('STACK(70K),/DEBUG=') LIB ('D0IEF.C86.LOAD') PLAN (CG86TABL) DSN END READY END ERROR condition was raised Traceback of user routines: Compile Unit Entry Statement CU offset Entry offset Address TIPTBAB 571 +0000A202 +0000A202 1D81DC12 TIPTABL 375 +000021E4 +000021E4 1D7F091C1MODEL: MODEL1 SQL statement follows: INSERT INTO USE_DATA_SENT /**/ VA TIME: 10:11:23.026 DATE: 2026-06-01 USER: USER123 PROCEDURE WHERE ERROR OCCURRED: TIPTBAB THE SQLCA CONTAINED THE FOLLOWING DATA: SQLERRM: PIDATAI1Ÿ0000C73852 SQLERRD(3): 0
DSNT408I SQLCODE = -803, ERROR: AN INSERTED OR UPDATED VALUE IS INVALID BECAUSE INDEX IN INDEX SPACE PIDATAI1 CONSTRAINS COLUMNS OF THE TABLE SO NO TWO ROWS CAN CONTAIN DUPLICATE VALUES IN THOSE COLUMNS. RID OF EXISTING ROW IS X'0000C73852'. DSNT418I SQLSTATE = 23505 SQLSTATE RETURN CODE DSNT415I SQLERRP = DSNXRINS SQL PROCEDURE DETECTING ERROR DSNT416I SQLERRD = -110 13172739 0 13817814 -490143744 0 SQL DIAGNOSTIC INFORMATION DSNT416I SQLERRD = X'FFFFFF92' X'00C90003' X'00000000' X'00D2D7D6' X'E2C90000' X'00000000' SQL DIAGNOSTIC INFORMATION ONLOC = TIPTBAB ONCODE = 9
*****
Environment
- Gen Host Encyclopedia
- Export model to Public Interface tables
Cause
Model corruption resulting in duplicate view mapping for an ACBLKUSE statement. There are duplicate DVUIS objects with DESTFOR, SRCEFOR, and MAPDIMP associations to the same ACBLKUSE object.
Support advised to re-run the PI export in batch and before submitting the JCL edit it to change string /DEBUG= to /DEBUG=CSPD
From debug output the export is trying to insert a row for object id 1347874882 and its association to a DVUIS (Object Type Code 106) twice which causes the duplicate row error:
*****... OBJ ID=1347874854 OTC= 106 END OF TIPFPRP 075158184 07.51.58.184 07.51.58.184 TIPTBAB , 0INSERT INTO USE_DATA_SENT /**/ VA 07.51.58.184 07.51.58.184 TIPTBAB , 0FETCH DVUISSN INTO / TIPFPRP: MAIN PROGRAM 075158184 OBJ ID=1347874882 OTC= 106 END OF TIPFPRP 075158184 07.51.58.184 07.51.58.184 TIPTBAB , 0INSERT INTO USE_DATA_SENT /**/ VA 07.51.58.184 07.51.58.184 TIPTBAB , 0FETCH DVUISSN INTO / TIPFPRP: MAIN PROGRAM 075158184 OBJ ID=1347874882 OTC= 106 END OF TIPFPRP 075158184 07.51.58.184 07.51.58.184 TIPTBAB , -803INSERT INTO USE_DATA_SENT /**/ VA GETUID : USERID = USER123 SQL statement follows: INSERT INTO USE_DATA_SENT /**/ VA TIME: TIUTMCC: MAIN ROUTINE EXECUTING 07:51:58.184 DATE: 2026-06-02 USER: USER123 PROCEDURE WHERE ERROR OCCURRED: TIPTBAB THE SQLCA CONTAINED THE FOLLOWING DATA: SQLERRM: PIDATAI10000F81257 SQLERRD(3): 0
DSNT408I SQLCODE = -803, ERROR: AN INSERTED OR UPDATED VALUE IS INVALID BECAUSE INDEX IN INDEX SPACE PIDATAI1 CONSTRAINS COLUMNS OF THE TABLE SO NO TWO ROWS CAN CONTAIN DUPLICATE VALUES IN THOSE COLUMNS. RID OF EXISTING ROW IS X'0000F81257'.
*****
Resolution
Run the following SQL against the HE to identify the offending objects (replace 'YOUR MODEL' with the actual model name):
***** SELECT A.ASSOC_FROM_OBJ_ID, B.ASSOC_FROM_OBJ_ID, C.ASSOC_FROM_OBJ_ID FROM DOBJ D, DMDL, DASC B, DASC C, DASC A WHERE MODEL_NAME = 'YOUR MODEL' AND D.OBJ_MODEL_ID = MODEL_ID AND D.OBJ_TYPE_CODE = 106 AND D.OBJ_ID = B.ASSOC_TO_OBJ_ID AND B.ASSOC_TYPE_CODE = 259 AND C.ASSOC_TYPE_CODE = 56 AND A.ASSOC_TYPE_CODE = 219 AND A.ASSOC_TO_OBJ_ID = B.ASSOC_TO_OBJ_ID AND A.ASSOC_TO_OBJ_ID = C.ASSOC_TO_OBJ_ID GROUP BY A.ASSOC_FROM_OBJ_ID, B.ASSOC_FROM_OBJ_ID, C.ASSOC_FROM_OBJ_ID HAVING COUNT(*) > 1;
*****
Output for this example: +-----------------------------------------------------------+ | ASSOC_FROM_OBJ_ID | ASSOC_FROM_OBJ_ID | ASSOC_FROM_OBJ_ID | +-----------------------------------------------------------+ 1_| 1347874882 | 1347874865 | 1543147438 | 2_| 1347874993 | 1347874865 | 1543147438 | 3_| 1347875193 | 1347874865 | 1543147438 | 4_| 1347875512 | 1347874865 | 1543147438 | +-----------------------------------------------------------+
The 3 output columns represent object types ACBLKUSE, ENTVW, ENTVW respectively.
The SQL finds duplicate view mapping for an ACBLKUSE statement i.e. identifies duplicate 'DVUIS' objects with 'DESTFOR', 'SRCEFOR' and 'MAPDIMP' associations to the same 'ACBLKUSE' OBJECT.
To fix the problem use utility TIEWENCY (Host Encyclopedia Utilities) on each ACBLKUSE object id in the first column to find the calling and called action block names and then redo the view matching in the Gen Toolset.
Here are some example TIEWENCY screenshots from the Gen sample model where there is no duplication but gives an idea on what will be seen and how to find the called/calling action blocks:

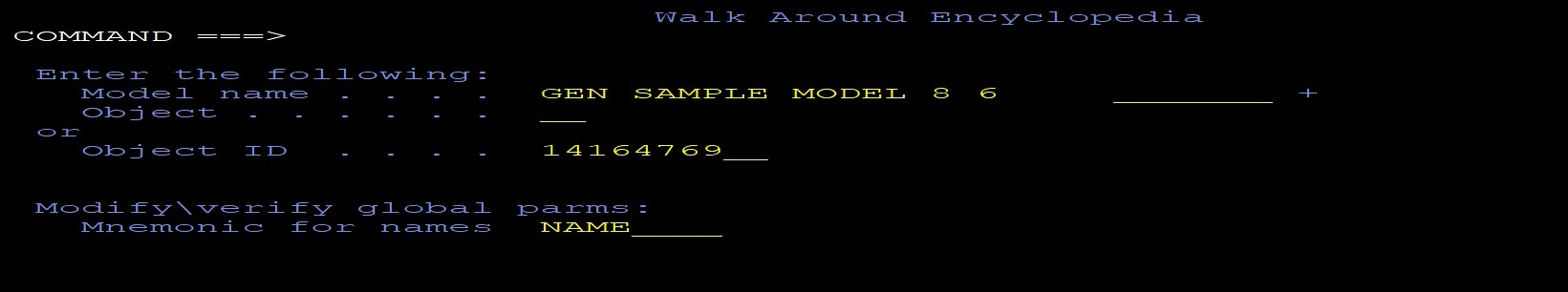

- On initial screen enter ACBLKUSE object id into the Object ID field and hit enter:

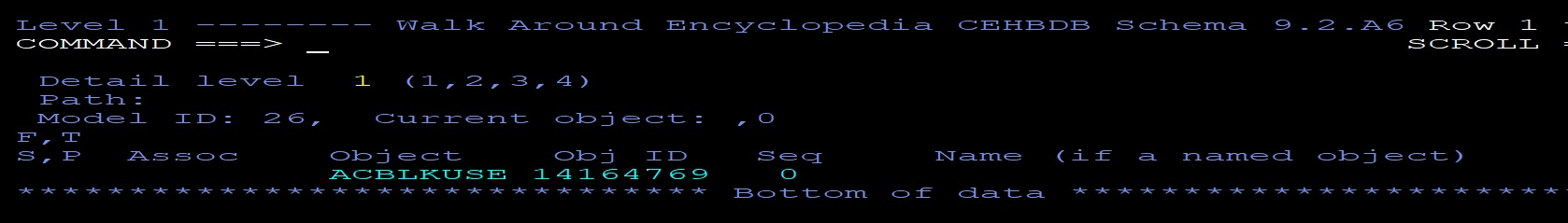

- On the next screen the corresponding ACBLKUSE object type should be visible:

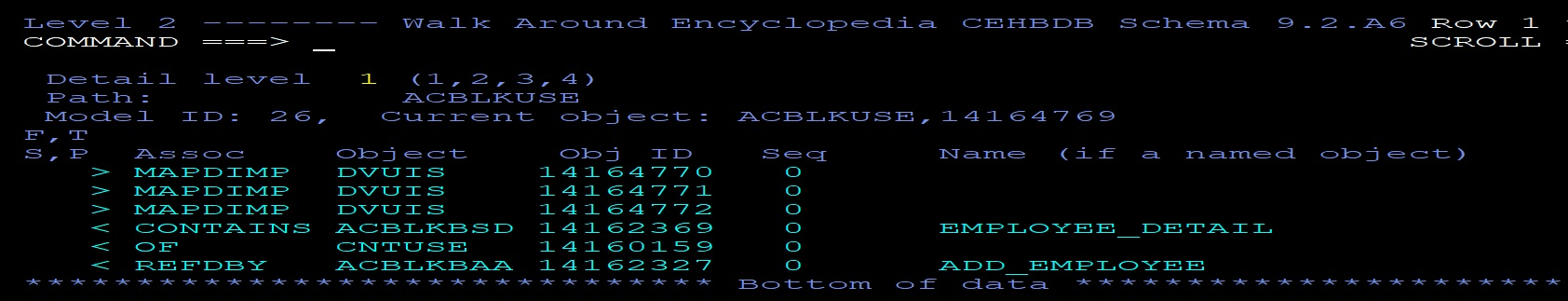

- Then use S on the ACBLKUSE line to get to the next screen showing the called action block (< REFDBY ...) and calling action block (< CONTAINS ...):
- All the ACBLKUSE object ids listed in the first column of the SQL output need to be checked in the same way.
- Create and download a subset from the HE containing all the relevant called/calling action block pairs.
- Open the subset in the Gen Toolset and for each pair of called/calling action blocks unmatch the views and rematch them.
- Upload the changes to the HE.
- Re-run the SQL and it should not return any rows.
- Run the export to PI again.
Additional Information
NOTE: If the message when the error occurs is "INSERT INTO USE_DATA_RTND", then in the above SQL the A.ASSOC_TYPE_CODE value should be changed to 217 instead of 219.
