Unable to configure Identity Broker in VCF Operations due to, "Internal Server error, cause unknown."

Products

• VCF Operations

Issue/Introduction

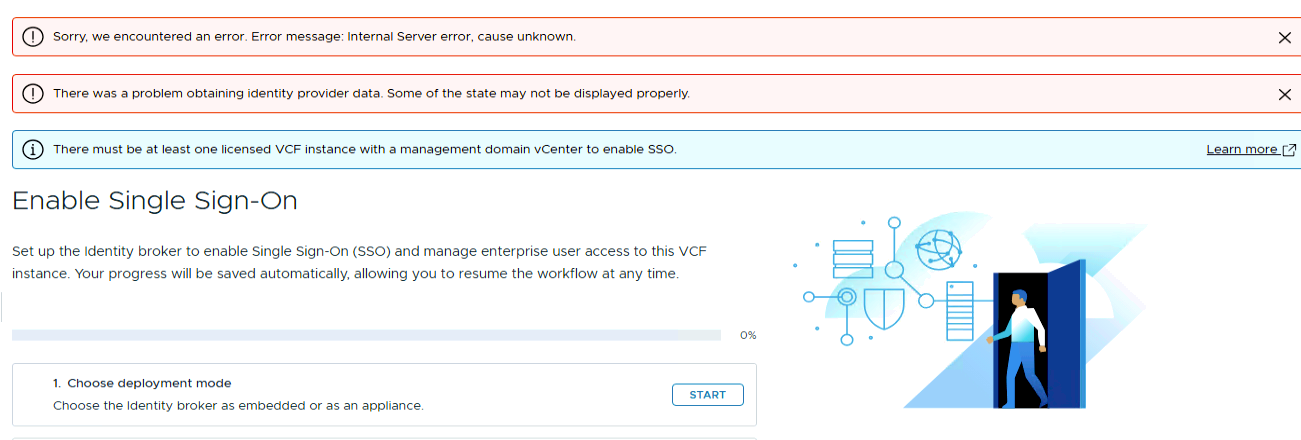

When you attempt to configure the Identity Broker in VCF Operations, the configuration fails. You observe the following error messages in the user interface:

Sorry we have encountered an error, Error message: Internal server error, Cause unknown.
There was a problem identity broker data. Some of the state may not be displayed properly

There was a problem obtaining identity provider data. Some of the state may not be displayed properly.

There must be at least one licensed VCF instance with a management domain vCenter to enable SSO.

Environment

VCF Operations 9.0.0
VCF Operations 9.0.1
VCF Operations 9.0.2

Cause

This issue occurs due to a DNS configuration problem on the Cloud Proxy (CP). The Operations CP must be in a working state to configure the Identity Broker for VCF instances. If the CP is deployed with a temporary DNS server that cannot resolve necessary external internet FQDNs, the HA proxy service fails to start, leaving the CP offline.

Resolution

To resolve this issue, correct the DNS configuration on the Cloud Proxy:

1. Update the DNS server settings on the Cloud Proxy from the temporary DNS server to a permanent DNS server.

2. Ensure the new DNS server can successfully resolve required internet FQDNs (for example, Broadcom API endpoints). If the cloud proxy is running in an air-gapped environment, workaround the problem by following steps "Bypass External FQDN Lookups" and "Verify and Restart" in Cloud Proxy deployment failure with error LCMVROPSSYSTEM29002 in VCF Operations

3. Verify that the HA proxy service starts successfully on the CP and that the CP comes online.

4. Retry configuring the Identity Broker in VCF Operations.

Additional Information

VCF Operations Collector (Cloud Proxy) fails to boot up after deployment in VCF Operations 9.x because haproxy fails to start
