VCF-VVF 9.1 brownfield installation fails with error: An error occurred in task "Bootstrap VCF Services Platform" when a VCHA adapter is present on the imported vCenter VM

Products

• VMware SDDC Manager / VCF Installer

Issue/Introduction

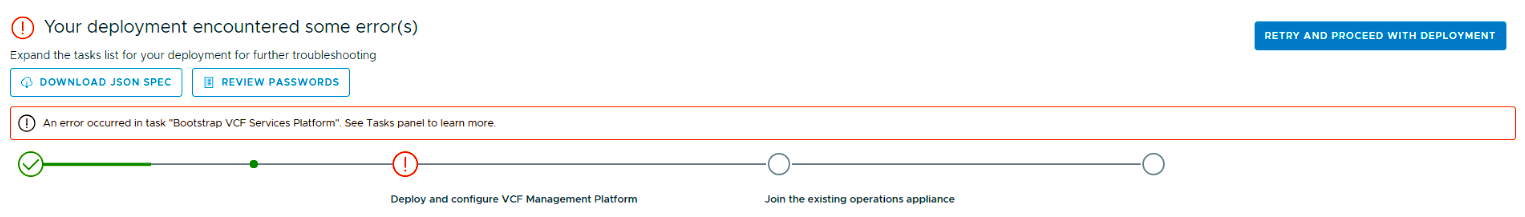

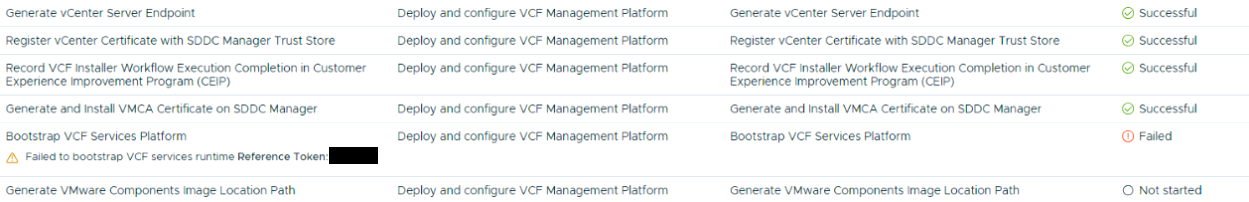

• VVF 9.1 brownfield installation fails at step Deploy and configure VCF Management Platform with error:  An error occurred in task "Bootstrap VCF Services Platform":




Environment

VCF 9.1.x
VVF 9.1.x

Cause

Clusters that use vCenter High Availability (VCHA) are not a supported configurations to Converge to VCF.



Resolution

Remove VCHA configuration from the imported vCenter.

Make sure that the VCHA network adapter is also removed from the vCenter Virtual machine

Additional Information

Supported and Not Supported Configurations to Converge to VCF
