Error "NoMatchingListenerHostname" when creating AVI Application virtual service from VCF Automation 9.x

Products

• VCF Automation

Issue/Introduction

• Creating a Load Balancer with data, (HTTP) creates the LB on the AVI.
• Next creating the Pool on the newly created LB, succeeds, however doesn't seem visible on  tenant AVI UI or mapped under the LB.

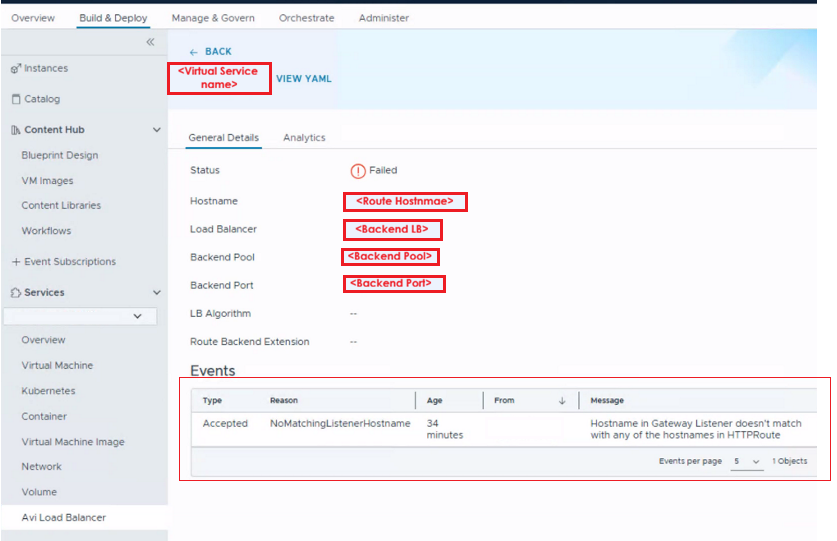

• Moving on as the Pool would need to be linked to a virtual service, creating a virtual service, linked to the LB and the pool, succeeds, however the virtual server too is not see on the UI. The VS created, displays a status as Failed.

• The VS shows a Event
  Type: Accepted
  Reason : NoMatchingListenerHostname
  Message : Hostname in Gateway Listener doesn't match with any of the hostnames in HTTPRoute

Environment

• VCF Automation 9.x
• AVI Load Balancer 32.x

Cause

• The configured hostname on the virtual service failed to match or comply with any of the valid listeners configured on the Load Balancer created.

Resolution

• Reconfigure the Virtual service / Load Balancer.
• Based on the requirement for Gateway Object created [Full FQDN Based listeners or Wildcard listeners]:
  • Full FQDN: Provide only the subdomain via the dropdown menu.

    • Example: Listener configured using Full FQDN:
      • Load Balancer (Listener) Configuration
        When creating your initial Load Balancer and defining the Listener with below configurations:

        • Load Balancer Name: test-lb-01
        • IP Address Type: Public
        • Listener Name: test-http-listener-01
        • Subdomain: myapp01.test.local
        • Protocol: HTTP
        • Port: 80
      • Pool Configuration
        Create a simple pool pointing to your test VMs.

        • Pool Name: test-backend-pool-01
        • Port: 80 (or whatever port your test VM is listening on, such as 8080)
        • Select VM: Select at least one powered-on test VM from your namespace.
      • Virtual Service (Binding) Configuration
        This is where the strict validation happens. When you bring the Listener and the Pool together to create the Virtual Service:

        • Virtual Service Name: test-vs-01
        • Select Load Balancer: Select test-lb-01 (which contains your myapp01.test.local listener).
        • Select Pool: Select test-backend-pool-01.
        • Hostname / Route Match: Do not populate any value in the hostname text field, rather select the subdomain from the drop down, which matches the fqdn for your host. here : myapp01.test.local


  • Wildcard FQDN: Provide the hostname via the text field and the subdomain via the dropdown menu.
    • Example: Listener configuration using Wildcard subdomain:
      • Load Balancer (Listener) Configuration
        When creating your initial Load Balancer and defining the Listener with below configurations:

        • Load Balancer Name: test-lb-02
        • IP Address Type: Public
        • Listener Name: test-http-listener-02
        • Subdomain: *.test.local
        • Protocol: HTTP
        • Port: 80
      • Pool Configuration
        Create a simple pool pointing to your test VMs.

        • Pool Name: test-backend-pool-02
        • Port: 80 (or whatever port your test VM is listening on, such as 8080)
        • Select VM: Select at least one powered-on test VM from your namespace.
      • Virtual Service (Binding) Configuration
        This is where the strict validation happens. When you bring the Listener and the Pool together to create the Virtual Service:

        • Virtual Service Name: test-vs-02
        • Select Load Balancer: Select test-lb-02 (which contains your *.test.local listener).
        • Select Pool: Select test-backend-pool-02.
        • Hostname / Route Match: As wildcard sub domain is used, We would need to (Required object being myapp02.test.local):
          • Select the wildcard sub domain from the Subdomain Drop down field: *.test.local
          • Key in the specific object name in the hostname text field: myapp02


• For more information refer: Creating an Application Service
