VCF 9.x Workload Domain vCenter Import Fails with Failed to Retrieve Thumbprint Error

Products

• VMware SDDC Manager / VCF Installer

Issue/Introduction

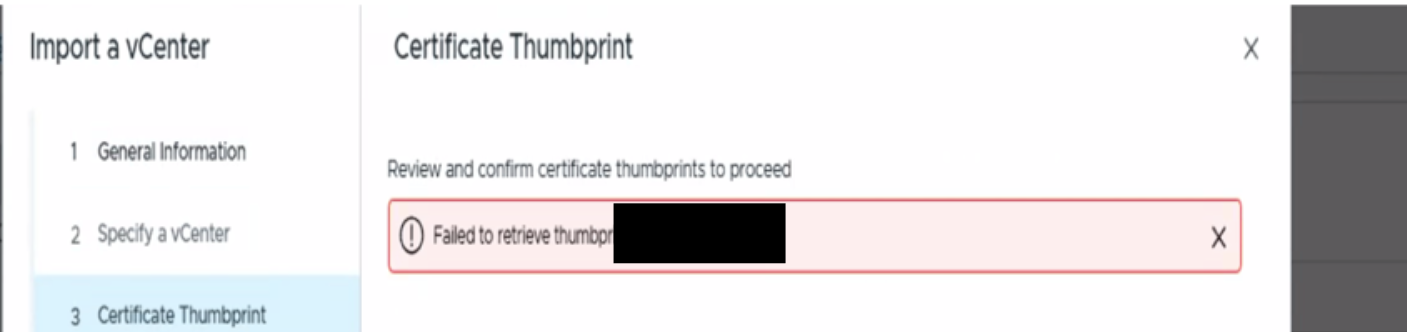

• During workload domain import validation in VMware Cloud Foundation, the validation of the target vCenter Server fails with the following error:"“Failed to retrieve thumbprint”:

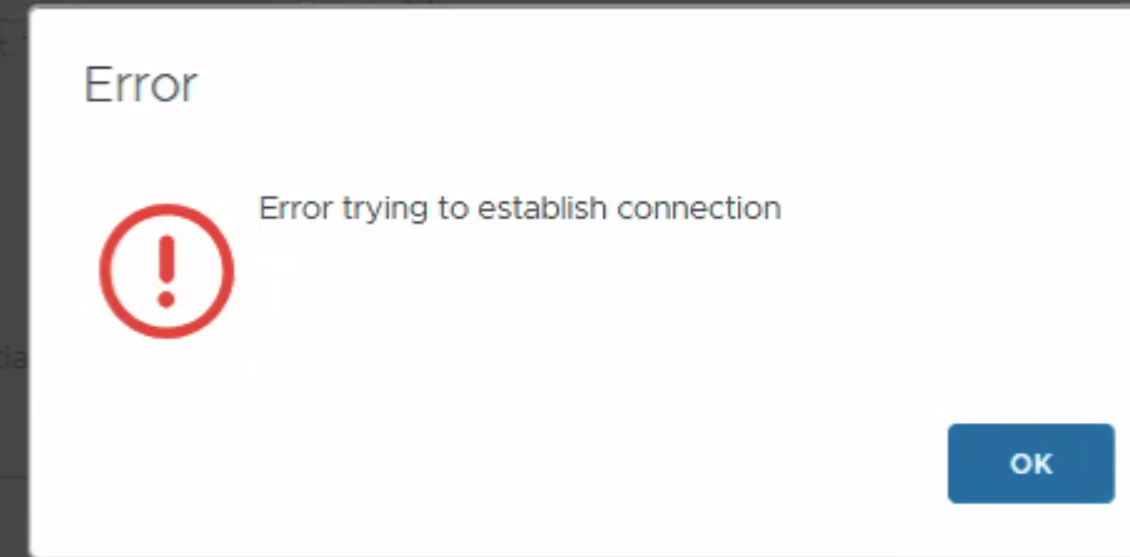

• Attempting to add the vCenter integration in VMware Cloud Foundation Operations also fails with "Error trying to establish connection"

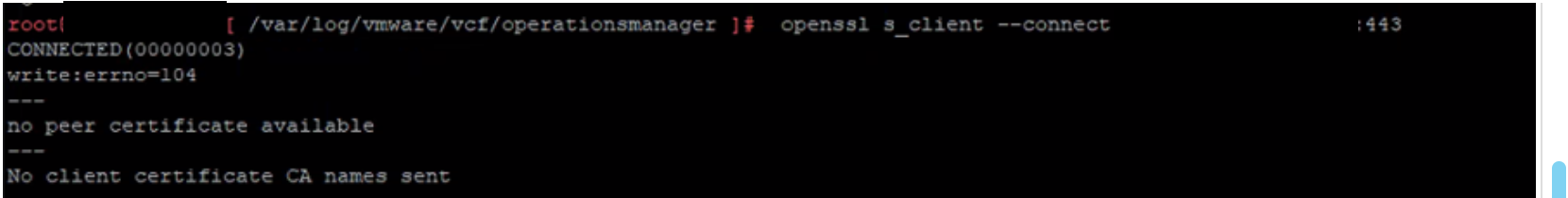

• Verifying the connectivity using openssl from SDDC Manager shows connection terminated with write:errno=104.”


Environment

• VMware Cloud Foundation 9.x
• VCF Operations

Cause

Network connectivity problems or security controls interrupt SSL/TLS communication over TCP port 443 between the SDDC Manager and the target vCenter Server.



Resolution

• Engage the Network Team to verify any SSL/TLS inspection policies, firewall rules, or security controls that may be interrupting encrypted communication, and ensure uninterrupted TCP/443 connectivity between the SDDC Manager and the target vCenter Server.
• Once SSL/TLS communication is successfully established, retry the vCenter integration or workload domain import operation.
