Script Editor tooltips fail to display for certain script commands in AWI 24.4.4.

Products

• CA Automic Workload Automation - Automation Engine

Issue/Introduction

In the Automic Web Interface (AWI) Script Editor, the parameter info tooltip does not appear for specific JCL commands after upgrading.

• Actual Behavior: Tooltips do not show at all for commands such as :PREP_PROCESS, PREP_PROCESS_REPORT, PREP_PROCESS_AGENTGROUP, PREP_PROCESS_FILE, MOVE_OBJECT, and MODIFY_OBJECT.
• Expected Behavior: A tooltip should appear showing parameter information when typing these commands.
• Note: The issue is inconsistent as some commands, such as :SET, still display tooltips correctly.

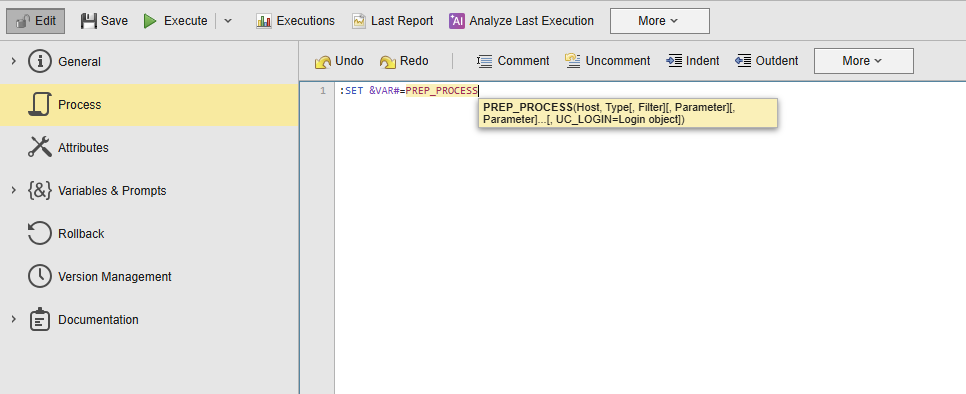

Version 24.4.3:

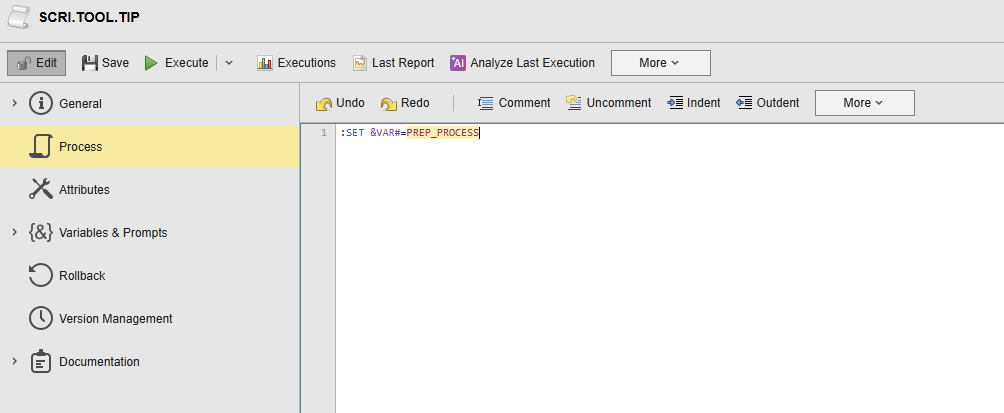

Version 24.4.4 HF1:

Environment

• Affected Versions: Automic Web Interface 24.4.4, 26.0.0
• Working Versions: Automic Web Interface 24.4.1, 24.4.3

Cause

This issue is caused by a software defect in the Automic Web Interface script editor component, tracked as DE196319.

Resolution

A fix for this issue is currently under investigation and being validated by Engineering.

Updates will be provided in future Service Packs or Hotfixes for the following branches:

• Automic Web Interface 24.4.5 - TBA

Workaround: There is no functional workaround to restore the tooltip display in the affected versions. Users are advised to refer to the product documentation for command parameter syntax until a fix is applied.
