VMware Cloud Foundation (VCF) Upgrade Fails at Pre-Check Due to Expired NSX Manager Password

Products

• VMware NSX
• VMware SDDC Manager / VCF Installer

Issue/Introduction

• When attempting a VMware Cloud Foundation (VCF) lifecycle upgrade, the upgrade process fails during the initial pre-check phase.

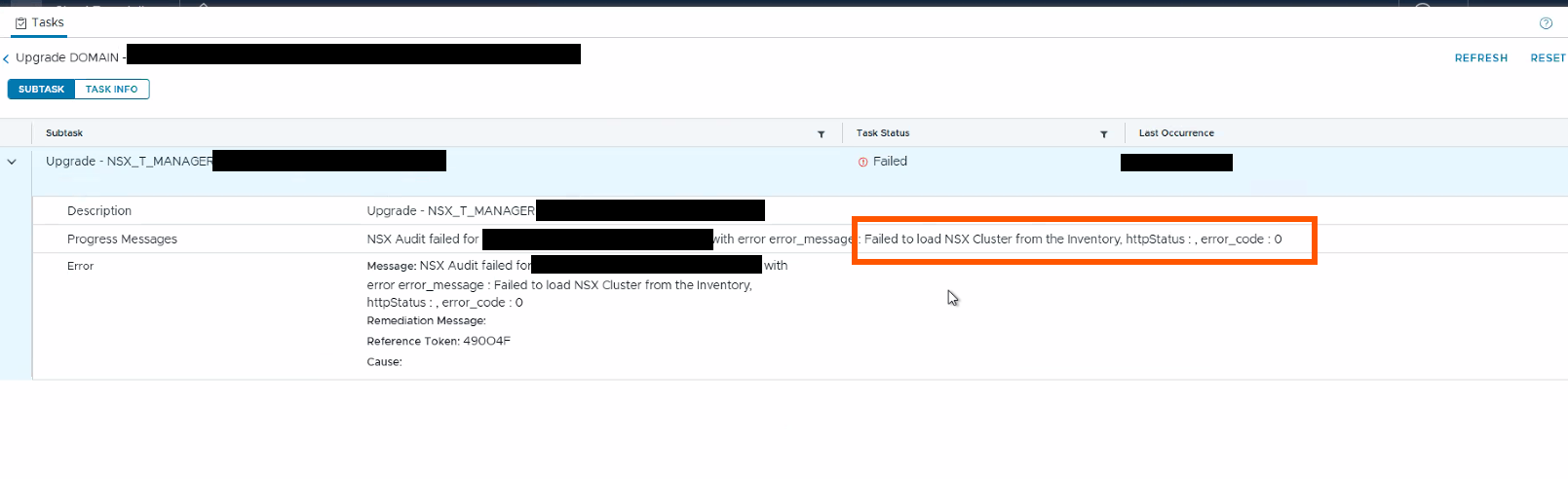

• The SDDC Manager user interface reports that the pre-check has failed because of the error message below :-

  Failed to load NSX Cluster from the Inventory, httpStatus :, error_code : 0

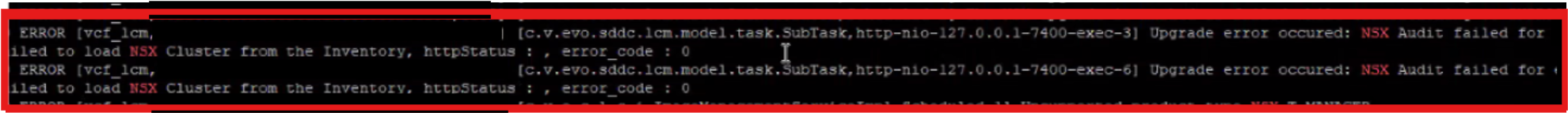

• On the SDDC manager, the error "Upgrade error occured: NSX Audit failed for <nsx_manager> Failed to load NSX Cluster from the Inventory, httpStatus : , error_code : 0" is recorded in /var/log/vmware/vcf/lcm/lcm.<date>.log-debug.





Environment

VMware NSX
VMware SDDC Manager

Cause

• The pre-check fails because the root/admin password on one of the cluster's NSX Managers is expired
• Because the password is expired, SDDC Manager is blocked from authenticating against that specific NSX manager node to collect inventory data, causing the entire pre-check sequence to halt.

Resolution

• Since the password has already expired and standard SSH/UI login attempts are blocked, the password must be reset via the GRUB boot menu.
• Follow the steps mentioned in the documentation to reset the password Resetting the Passwords of an Appliance

Additional Information

Refer to the article for more details NSX Manager root password is expired and needs to be reset
