Inaccurate data results in my chart/dashboard. Did my data get deleted? DX OpenExplore
Article ID: 440766
Updated On:
Products
Issue/Introduction
Obsolete data is excluded from query results by default, this can have an impact on the way data appears once you apply advanced functions to your query.
Aggregation functions like sum() or avg(), ect will group time series together, however if some of the time series stopped reporting in more than 14-days ago they are not included in the aggregated results.
Resolution
Enable the “Include Obsolete Metrics” property on the chart to visualize all time series which have been classified as obsolete.
- Opening a chart for a time window when 10 time series reported in, however only the 5 time series are included in the results.
- Review of data shows that 5 out of 10 unique sources stopped reporting 14-days or more ago
Using functions that aggregating data, the resulting aggregate values will not include the obsolete time series and can lead to inaccurate results.

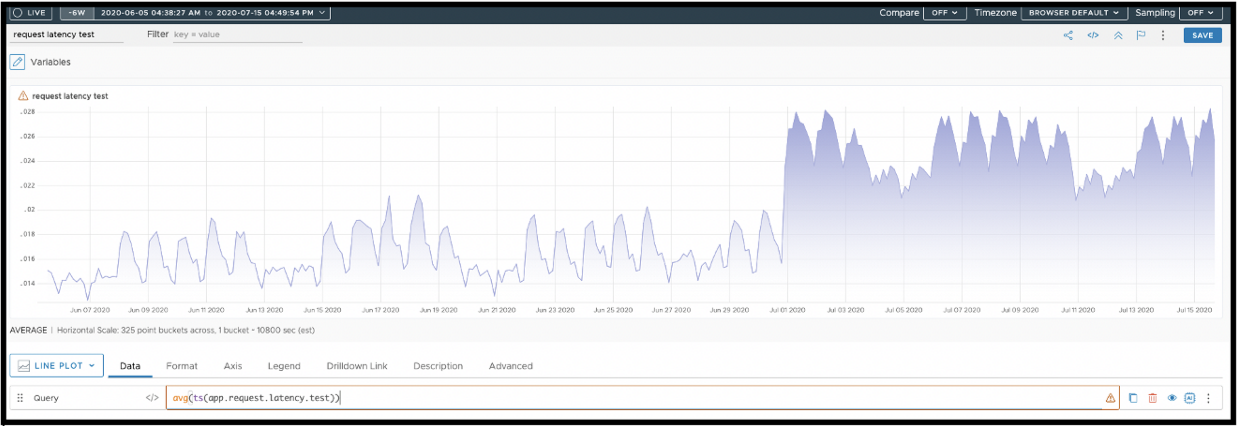

The screenshot below shows an average of request latency without the "include obsolete metrics" property being enabled on the chart:
In the example above, the aggregate values range between .01 and .03 because it's only aggregating on the subset of test data that is not marked as obsolete.

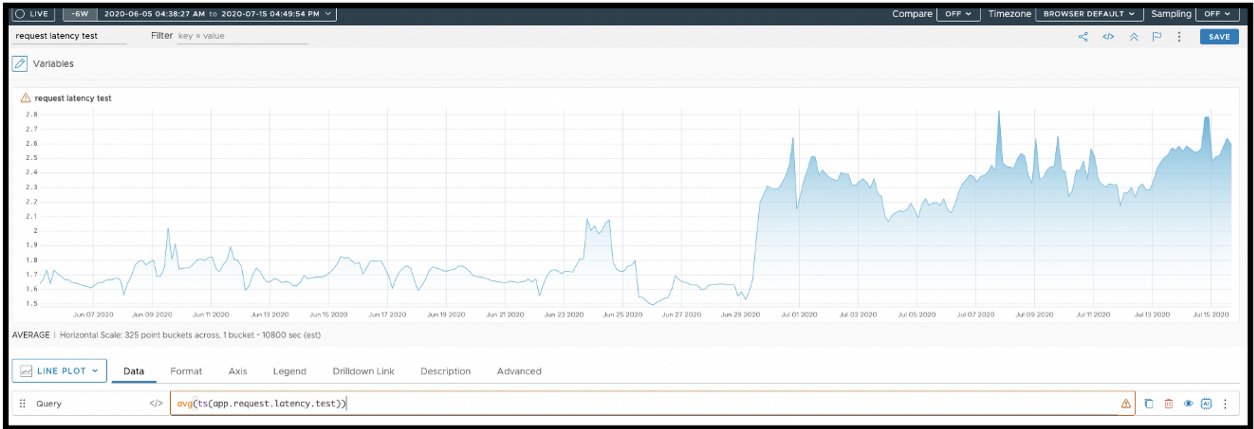

When we enable "Include Obsolete Metrics" in the following chart, then the query results are based on our entire test data set. Now the range of aggregate values is between 1 and 3.
When looking at historical data, it can be tricky to identify if all data is being included in your query results. In this case, we would suggest enabling the “Include Obsolete Metrics” property to ensure all data is included in your query results.
