Adding ESXi Host to SDDC Manager fails with SSL Verification Fault (VxRail)

Products

• VMware SDDC Manager / VCF Installer

Issue/Introduction

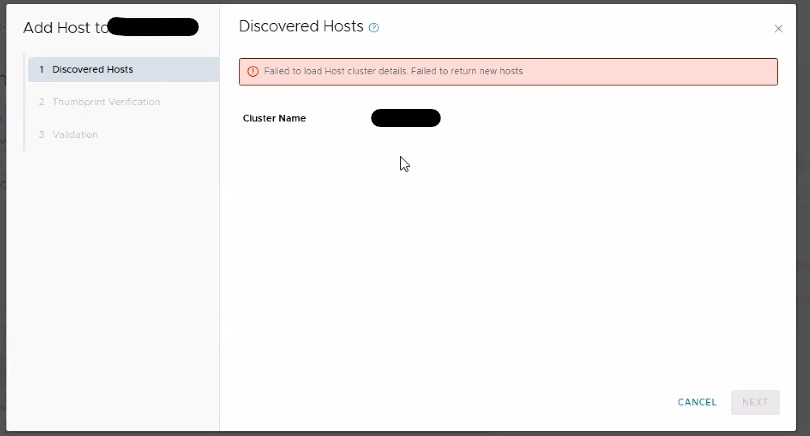

• In SDDC manager GUI one sees:
  • Failed to load Host cluster details.  Failed to return new hosts.






• Adding a new host to a VxRail cluster via SDDC Manager fails the "Add Host to Cluster", but there is not task in SDDC manager because this issue is before SDDC manager fully engages and is at the VxRail step.
• The task may show a generic failure in the SDDC Manager UI, or an "Inventory version synchronization" warning.
• In domain manager logs you find:
  • Error fetching hosts com.vmware.vxrail.vcf.hostmanager.error.VxRailHostManagerException: Failed to return new hosts
  • Caused by: com.vmware.evo.sddc.common.vxrail.error.VxRailManagerException: Unable to parse host details in VxRail Managers response message
  • Caused by: com.vmware.evo.sddc.common.vxrail.error.VxRailManagerException: Unable to fetch details for hosts managed by VxRail Manager
  • Caused by: javax.net.ssl.SSLHandshakeException: PKIX path validation failed: java.security.cert.CertPathValidatorexcpetion: validity check failed

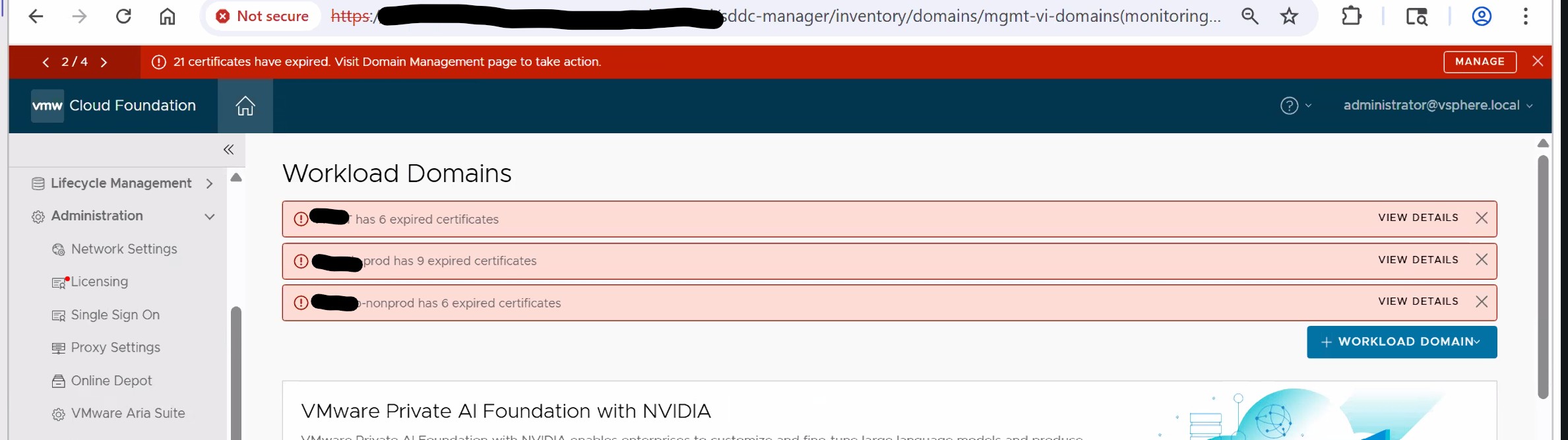

• The certificates show as expired in the SDDC manager GUI:
  • Domain name has ## expired certificates
  •

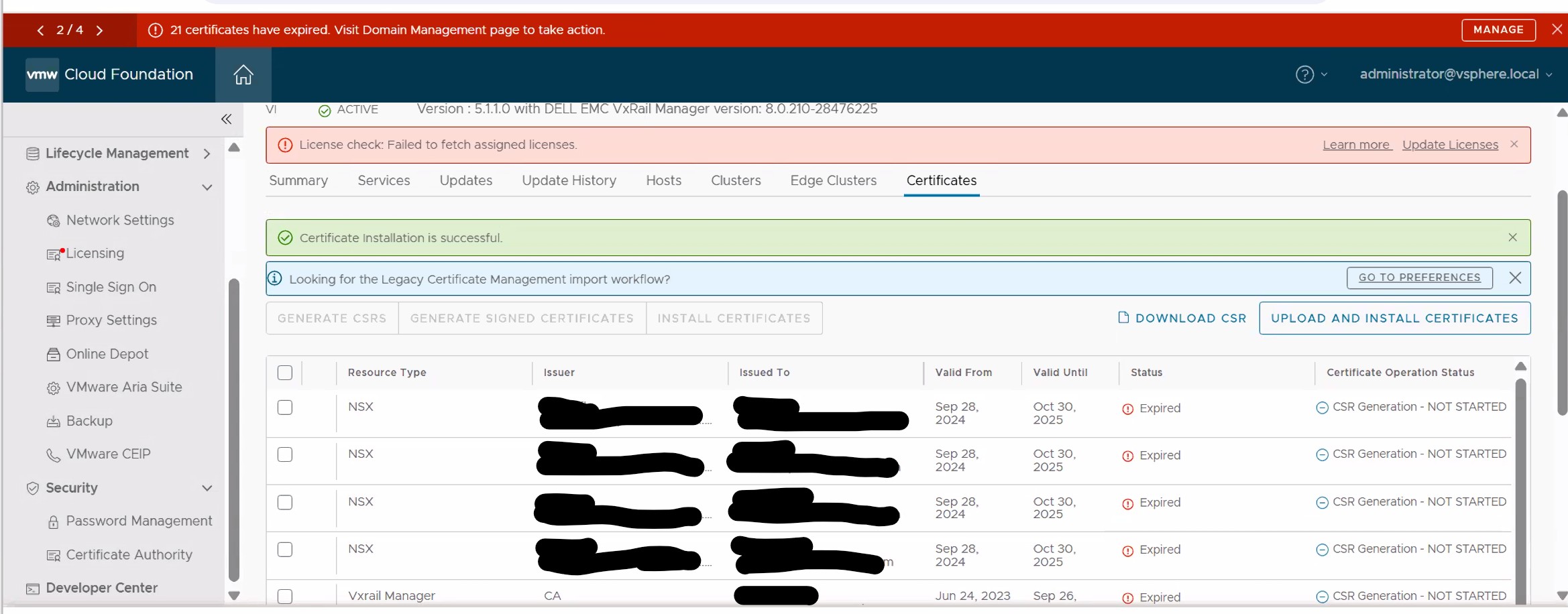

  • Certificate manager in SDDC manager GUI shows VxRail Manager certificate to be expired

    •

Environment

vCF SDDC manager 5.x

Cause

vCenter certificate and VxRail certificate do not match and as a security measure, no further action should be taken with a mismatched certificate.

Resolution

Contact Dell VxRail support to assist with resolving the issue, if the certificate is expired and cannot be updated from SDDC manager's GUI.  Use this KB as reference:
VxRail Management certificate shows expired in SDDC manager

Additional Information

Please provide a log bundle for this issue so that we can further study it.
