Registration Issues for Avi on NSX Manager Due to Certificate Validation Failure

Products

VMware Avi Load Balancer VMware NSX

Issue/Introduction

During Avi Controller onboarding with NSX Manager, the registration process fails.The following error may be observed:"Error creating User/Role in Avi Load Balancer Controller. Please try again."
The onboarding workflow may remain incomplete, or the Avi endpoint registration may fail repeatedly.

Environment

VMware NSX-T Data Center
NSX Manager integrated with Avi Controller

Cause

NSX Manager does not trust the Avi Controller certificate chain during onboarding. As a result:

NSX fails to create the required Avi user roles (nsxt-alb, nsxt-ako).
The onboarding workflow remains incomplete.

Diagnosis

1. Check the current ALB endpoint status:

curl -k -u 'admin:<password>' --location --request GET \
https://<nsx-manager-ip>/policy/api/v1/infra/sites/default/enforcement-points/alb-endpoint

If the response shows "status": "DEACTIVATE_API", the endpoint must be deleted before re-onboarding.

2. Check NSX Manager logs at /var/log/proton/nsxapi.log. The following entry confirms a certificate trust issue:

REST API failed: https://<Avi Controller IP>/api/role
PKIX path building failed: java.security.cert.CertPathBuilderException:
Unable to find certificate chain.
SSLHandshakeException: PKIX path building failed.

Resolution

Step 1 Remove the Existing ALB Endpoint (only if status is `DEACTIVATE_API`)

curl -k -X DELETE \
https://<nsx-mgr-ip>/policy/api/v1/infra/sites/default/enforcement-points/alb-endpoint \
-u admin:'<password>'

If the status is not DEACTIVATE_API, skip to Step 2.

Step 2 — Import the Avi Root CA into NSX Manager

curl --request POST \
--url 'https://<nsx-mgr-ip>/policy/api/v1/trust-management/certificates/<cert_name>?action=import_trusted_ca' \ --header 'Content-Type: application/json' \ --data '{  "pem_encoded": "-----BEGIN CERTIFICATE-----\n<root_cert_content>\n-----END CERTIFICATE-----" }'

Where:

<cert_name> — desired certificate object name in NSX
<root_cert> — PEM-encoded Avi root CA content

Step 3 — Clean Up Stale Avi Accounts if present else skip this step:

On the Avi Controller, delete the following users from the (Administration>Users)
(created by the previous failed onboarding attempt):

nsxt-alb
nsxt-ako

Step 4 — Re-Register Avi Controller via Onboarding API

curl -k -u admin --location --request PUT \
'https://<nsx_mgr_ip>/policy/api/v1/infra/alb-onboarding-workflow' \
--header 'X-Allow-Overwrite: True' \
--header 'Content-Type: application/json' \
--data-raw '{
  "owned_by": "LCM",
  "cluster_ip": "<cluster_ip>",
  "infra_admin_username": "<username>",
  "infra_admin_password": "<password>",
  "dns_servers": ["<dns-server-ip>"],
  "ntp_servers": ["<ntp-server-ip>"],
  "default_cert": false
}'

Once the API is executed, it will prompt for the NSX Manager password.

Verification

Confirm the registration status:

curl -k -u 'admin:<nsxpassword>' --location --request GET \
https://<nsx-mgr-ip>/policy/api/v1/infra/sites/default/enforcement-points/alb-endpoint

A successful onboarding returns:

status: DEACTIVATE_PROVIDER

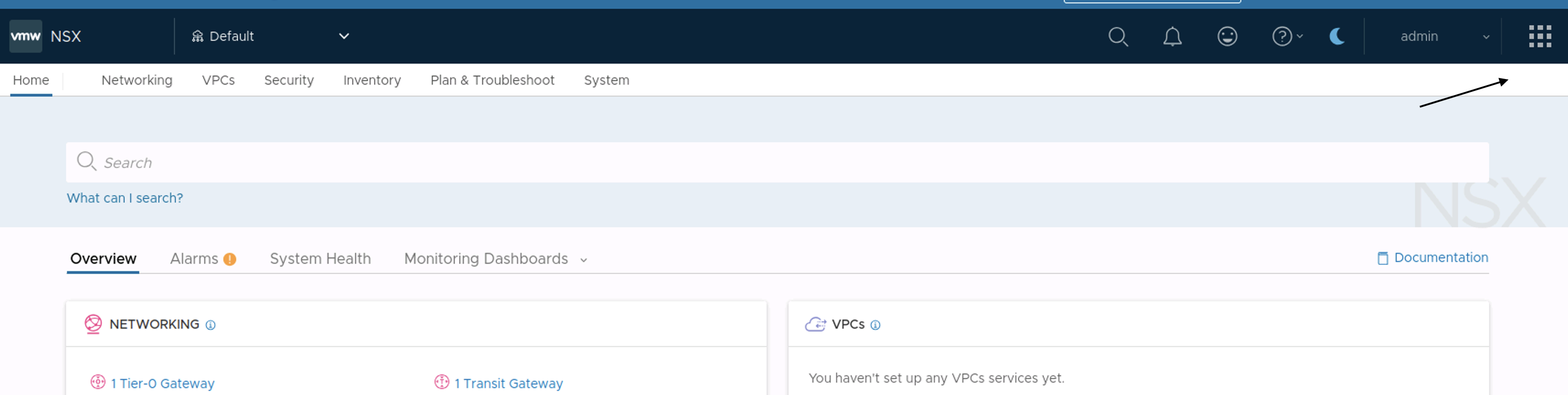

The same state can also be verified from the NSX App Switcher UI. This confirms the onboarding workflow has completed and the Avi provider is registered with NSX Manager.
