Phoenix UI Theme does not show the 'Current User' label in Studio Attribute

Products

• Clarity FedRAMP
• Clarity PPM On Premise
• Clarity PPM SaaS

Issue/Introduction

Summary: Phoenix Theme does not show the 'Current User' label on the Studio Attribute properties page.  Selecting the option functionally works as expected. This is a display issue. If you select the 2nd radio button (where there is no label shown) and save the attribute properties, it works as expected and sets the Default to 'Current User'  and now the 2nd radio button has a label.

Steps to Reproduce:

1. Set Clarity to use the Phoenix UI Theme (Administration, UI Themes)
2. Go to Administration Studio, Objects
3. For any object, create a new custom attribute using the 'BROWSE_PROJMGR' or 'SCH_BROWSE_RESOURCE' lookup
4. Once the new attribute is created, it will display 2 radio buttons for the Studio Default value setting

Expected Results: The 2nd radio button should display the label 'Current User'.

Actual Results: The 2nd radio button does not display any label.

---

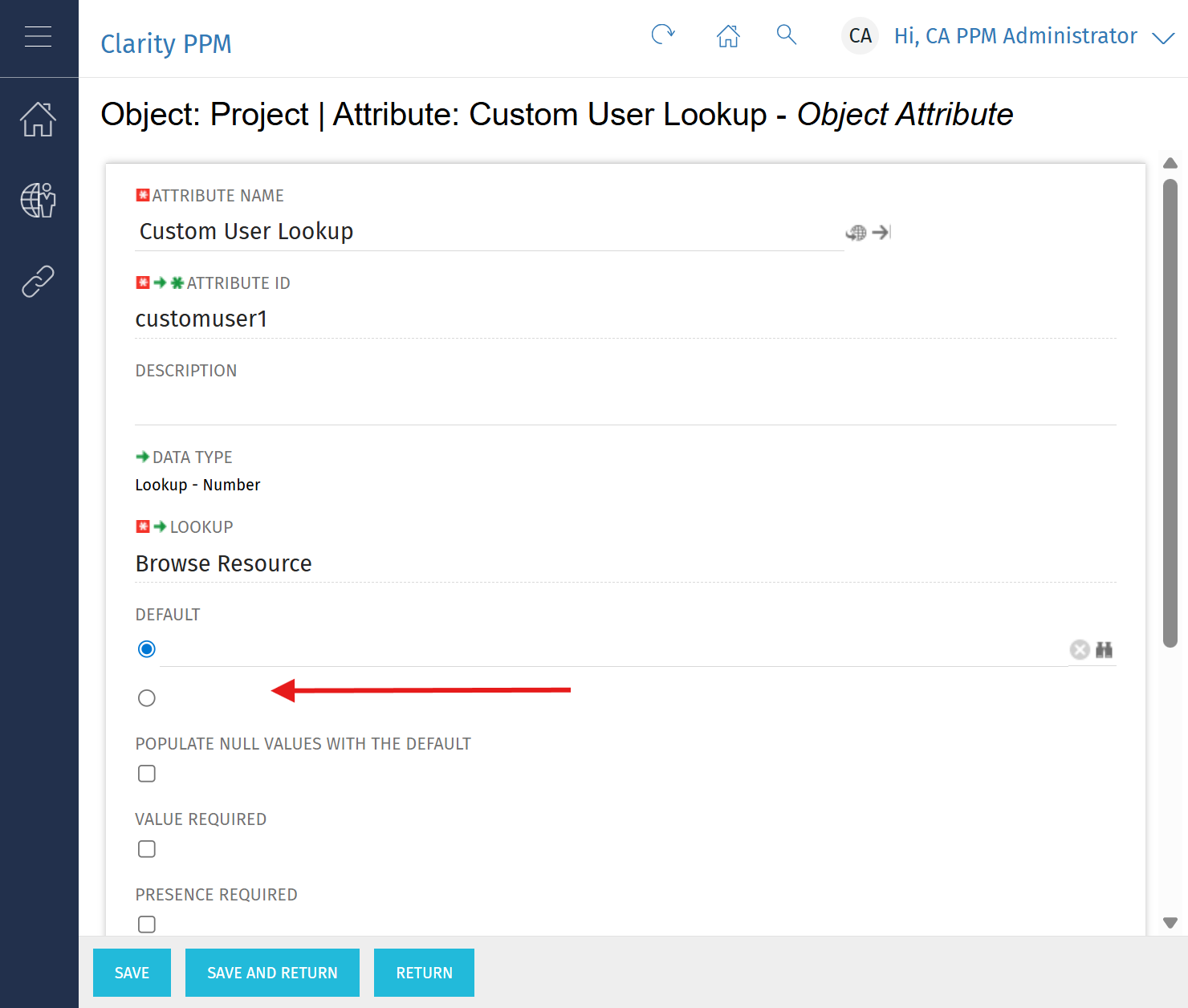

Figure 1: No label shown for the 2nd Default option when the 1st Default option is selected & saved.

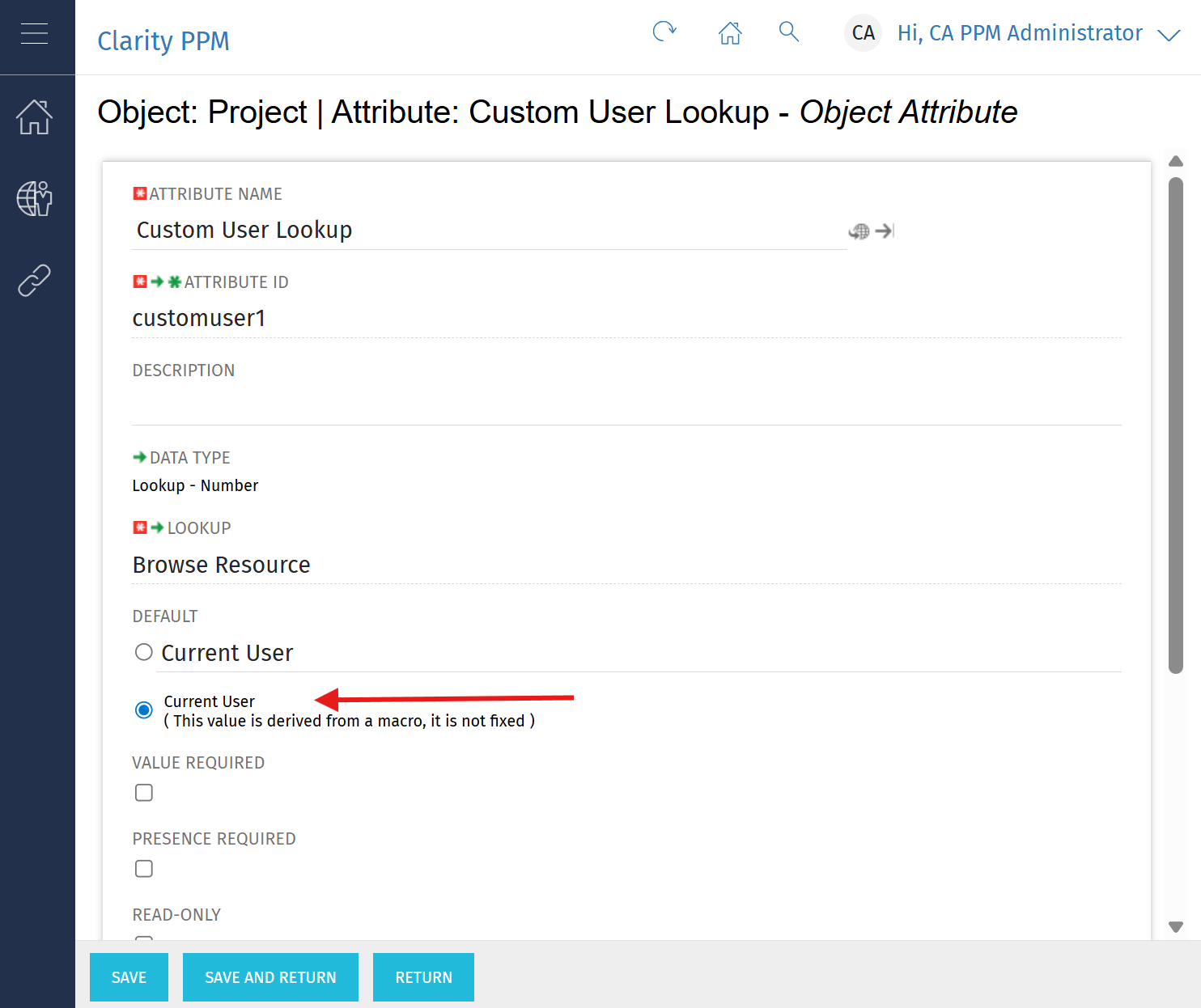

Figure 2: A label is shown for the 2nd Default option when it is selected and saved.

Environment

Clarity 16.4.2

Cause

DE190822

In Clarity 16.4.2 a new enhancement is introduced to allow the administrator to set a Studio Default value on a Custom Single-Value Lookup Attribute where the lookup is defined as a Dynamic Query Lookup associated with either the 'User' or 'Resource' object.

Resolution

DE190822  In review with engineering.

Workaround: No functional impact.  Selecting and saving the 2nd radio button will set the default to the 'Current User' macro and the label will appear.  Alternatively, the administrator temporarily use a different UI Theme to manage the default properties for custom single-value User or Resource lookup attributes.
