vSAN -- WSFC -- Configuring Windows Failover Cluster -- Receiving errors related to disk I/O

Products

• VMware vSAN

Issue/Introduction

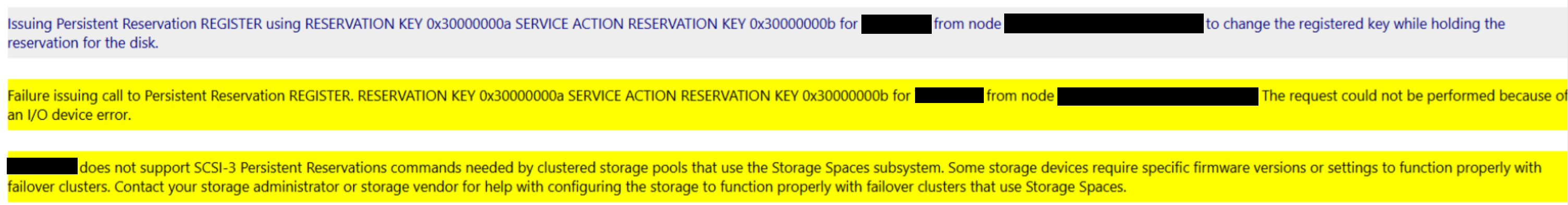

You observe the following error when configuring/setting up Virtual Machine(s) for Windows Server Failover Cluster (WSFC):

"Failure issuing call to Persistent Reservation .... The request could not be performed because of an I/O device error"

"Disk does not support SCSI-3 Persistent Reservations commands ....."



Environment

vSAN (All Versions)

Cause

Configuration issue in regards to the disk of the affected Virtual Machine(s)



Resolution

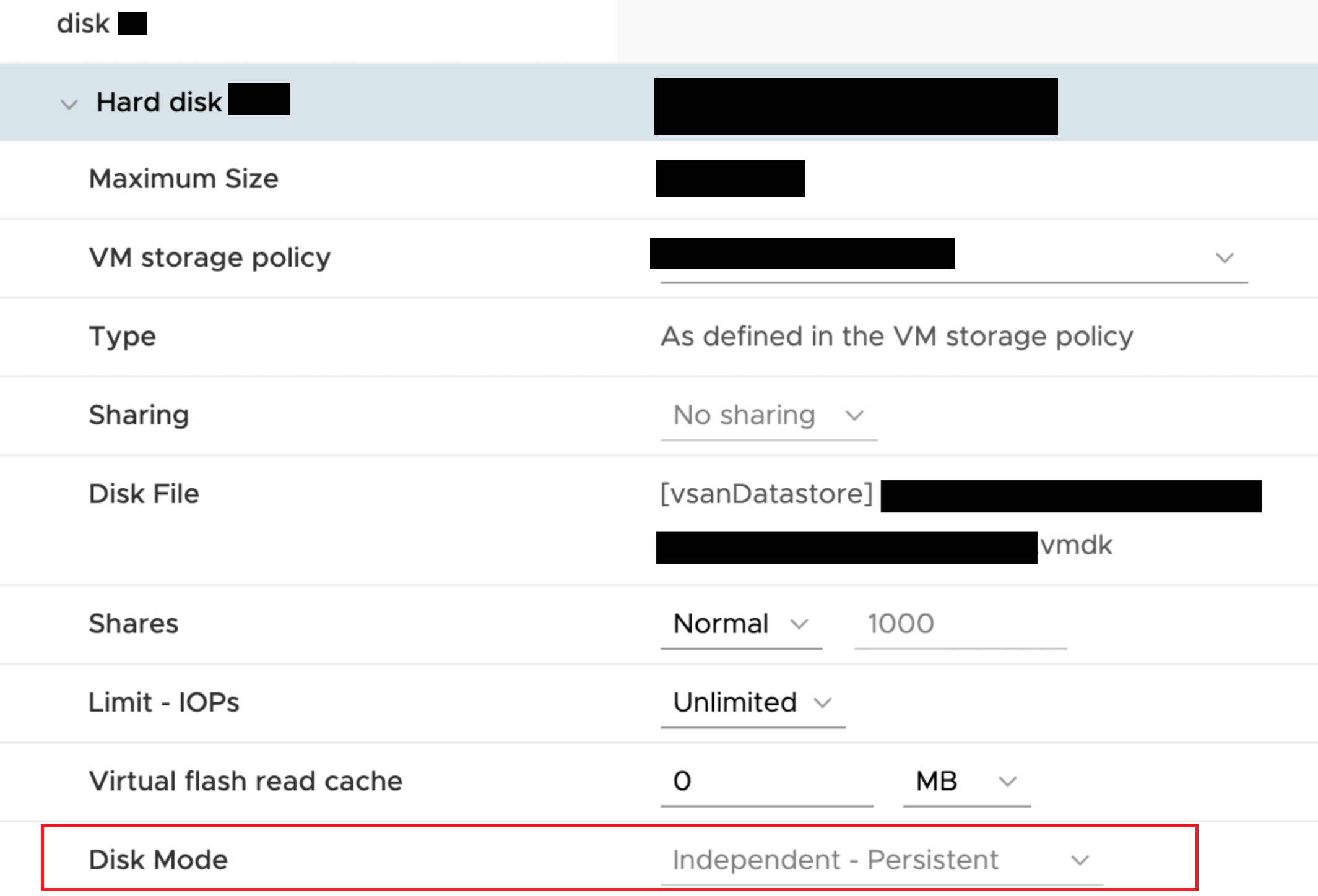

Ensure that the Cluster disks of the affected Virtual Machine are configured with Disk Mode "Independent – Persistent"



Additional Information

vSAN Specific:



Configuring a shared disk resource for Windows Server Failover Cluster (WSFC) and migrating SQL Server Failover Cluster Instance (FCI) from SAN (RDMs) to vSAN
Clustering Applications on vSAN

VMware Cloud on AWS -- Shared Storage Clusters on vSAN
Microsoft SQL Server Failover Cluster Instance on VMware vSAN Stretched Cluster







General:



ARCHITECTING MICROSOFT SQL SERVER ON VMWARE VSPHERE®
Microsoft Windows Server Failover Clustering (WSFC) with shared disks on VMware vSphere 8.x: Guidelines for supported configurations
Clustered VMDK support for WSFC
Tips for configuring Microsoft SQL Server in a virtual machine
