Authorization error when configuring DLP SAML authentication
Article ID: 438218
Updated On:
Products
Data Loss Prevention Core Package
Issue/Introduction
Changing the DLP Enforce Console authentication from Kerberos (AD) to SAML (ADFS), the following error appears when trying to login:

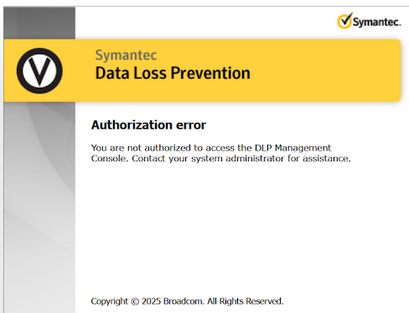

"Authorization error: You are not authorized to access the DLP Management Console. Contact your system administrator for assistance"
- Steps to enable SAML were followed: DLP SSO: First time setup of SAML
- Also applied the additional steps for ADFS: Configuring SAML Authentication using Azure AD SSO or ADFS for DLP
- Confirmed the idp certificate was imported into the samlkeystore.jks
Localhost log reports the following:
2026-04-25 00:14:24.912 +0530 Thread: 188(https-jsse-nio-443-exec-9) INFO org.opensaml.common.binding.security.SAMLProtocolMessageXMLSignatureSecurityPolicyRule.evaluate SAML protocol message was not signed, skipping XML signature processing
2026-04-25 00:14:24.920 +0530 Thread: 188(https-jsse-nio-443-exec-9) INFO org.springframework.security.saml.log.SAMLDefaultLogger.log AuthNResponse;FAILURE;<ipaddress>;https://<DLP_Enforce_FQDN_or_IP>/ProtectManager/saml/metadata;<idp>;;;org.opensaml.common.SAMLException: Response doesn't have any valid assertion which would pass subject validation
at org.springframework.security.saml.websso.WebSSOProfileConsumerImpl.processAuthenticationResponse(WebSSOProfileConsumerImpl.java:265)
at org.springframework.security.saml.SAMLAuthenticationProvider.authenticate(SAMLAuthenticationProvider.java:88)
at org.springframework.security.authentication.ProviderManager.authenticate(ProviderManager.java:182)
at org.springframework.security.saml.SAMLProcessingFilter.attemptAuthentication(SAMLProcessingFilter.java:92)
at org.springframework.security.web.authentication.AbstractAuthenticationProcessingFilter.doFilter(AbstractAuthenticationProcessingFilter.java:231)
at org.springframework.security.web.authentication.AbstractAuthenticationProcessingFilter.doFilter(AbstractAuthenticationProcessingFilter.java:221)
at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:361)
at org.springframework.security.web.FilterChainProxy.doFilterInternal(FilterChainProxy.java:225)
at org.springframework.security.web.FilterChainProxy.doFilter(FilterChainProxy.java:185)
at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:361)
at org.springframework.security.web.header.HeaderWriterFilter.doHeadersAfter(HeaderWriterFilter.java:90)
at org.springframework.security.web.header.HeaderWriterFilter.doFilterInternal(HeaderWriterFilter.java:75)
at org.springframework.web.filter.OncePerRequestFilter.doFilter(OncePerRequestFilter.java:117)
at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:361)
at org.springframework.security.web.context.request.async.WebAsyncManagerIntegrationFilter.doFilterInternal(WebAsyncManagerIntegrationFilter.java:62)
at org.springframework.web.filter.OncePerRequestFilter.doFilter(OncePerRequestFilter.java:117)
at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:361)
at org.springframework.security.web.context.SecurityContextPersistenceFilter.doFilter(SecurityContextPersistenceFilter.java:117)
at org.springframework.security.web.context.SecurityContextPersistenceFilter.doFilter(SecurityContextPersistenceFilter.java:87)
at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:361)
at org.springframework.security.web.session.DisableEncodeUrlFilter.doFilterInternal(DisableEncodeUrlFilter.java:42)
at org.springframework.web.filter.OncePerRequestFilter.doFilter(OncePerRequestFilter.java:117)
at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:361)
at org.springframework.security.saml.metadata.MetadataGeneratorFilter.doFilter(MetadataGeneratorFilter.java:87)
at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:361)
at org.springframework.security.web.FilterChainProxy.doFilterInternal(FilterChainProxy.java:225)
at org.springframework.security.web.FilterChainProxy.doFilter(FilterChainProxy.java:190)
at org.springframework.web.filter.DelegatingFilterProxy.invokeDelegate(DelegatingFilterProxy.java:354)
at org.springframework.web.filter.DelegatingFilterProxy.doFilter(DelegatingFilterProxy.java:267)
at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:168)
at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:144)
at org.apache.catalina.core.StandardWrapperValve.invoke(StandardWrapperValve.java:168)
at org.apache.catalina.core.StandardContextValve.invoke(StandardContextValve.java:90)
at org.apache.catalina.authenticator.AuthenticatorBase.invoke(AuthenticatorBase.java:482)
at com.vontu.login.tomcat.valve.IpCatcherValve.invoke(IpCatcherValve.java:61)
at com.vontu.login.tomcat.valve.CharacterEncodingValve.invoke(CharacterEncodingValve.java:69)
at org.apache.catalina.core.StandardHostValve.invoke(StandardHostValve.java:130)
at org.apache.catalina.valves.ErrorReportValve.invoke(ErrorReportValve.java:93)
at org.apache.catalina.valves.AbstractAccessLogValve.invoke(AbstractAccessLogValve.java:660)
at org.apache.catalina.core.StandardEngineValve.invoke(StandardEngineValve.java:74)
at org.apache.catalina.connector.CoyoteAdapter.service(CoyoteAdapter.java:346)
at org.apache.coyote.http11.Http11Processor.service(Http11Processor.java:396)
at org.apache.coyote.AbstractProcessorLight.process(AbstractProcessorLight.java:63)
at org.apache.coyote.AbstractProtocol$ConnectionHandler.process(AbstractProtocol.java:937)
at org.apache.tomcat.util.net.NioEndpoint$SocketProcessor.doRun(NioEndpoint.java:1791)
at org.apache.tomcat.util.net.SocketProcessorBase.run(SocketProcessorBase.java:52)
at org.apache.tomcat.util.threads.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1190)
at org.apache.tomcat.util.threads.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:659)
at org.apache.tomcat.util.threads.TaskThread$WrappingRunnable.run(TaskThread.java:63)
at java.base/java.lang.Thread.run(Unknown Source)
Caused by: org.opensaml.xml.validation.ValidationException: Signature is not trusted or invalid
at org.springframework.security.saml.websso.AbstractProfileBase.verifySignature(AbstractProfileBase.java:272)
at org.springframework.security.saml.websso.WebSSOProfileConsumerImpl.verifyAssertionSignature(WebSSOProfileConsumerImpl.java:455)
at org.springframework.security.saml.websso.WebSSOProfileConsumerImpl.verifyAssertion(WebSSOProfileConsumerImpl.java:328)
at org.springframework.security.saml.websso.WebSSOProfileConsumerImpl.processAuthenticationResponse(WebSSOProfileConsumerImpl.java:250)
... 49 more
2026-04-25 00:14:24.940 +0530 Thread: 188(https-jsse-nio-443-exec-9) INFO com.symantec.dlp.login.spring.SymantecLoginAuditLogger.auditLogin Unsuccessful login attempt for user null at IP address: <ip address>
Environment
Symantec Data Loss Prevention
SAML integration with ADFS
Cause
Incorrect idp-metadata.xml was being used.
Resolution
Confirm the correct idp-metadata.xml is imported to the Enforce Server.
Additional Information
Reference the DLP SSO: General Troubleshooting for additional SAML troubleshooting
