Issue/Introduction

This is a Quick Install guide for the Data Loss Prevention Linux Endpoint Agent.

For the full "DLP Quick Install Guide" please visit the following link: DLP Quick Install Guides



Environment

Linux

Cause

Linux Endpoint Agents are one of the core components for Data Loss Prevention.

Resolution

VERSION DISCLAIMER: Please note that the following instructions are version agnostic, and can generally be used on any currently supported version. As such you will find several variables denoted such as "<DLPversion>" to indicate where a version number "should" be used. You will need to replace these variables with the appropriate version that you are attempting to use. Below are a few examples of such translations... <DLPversion>  = 16.0, 16.0.1, 16.0.2, 16.1, or 25.1 <DLPfullversion>  = 16.0.10000.60631 <ORACLEversion>  = 193000 or 19.3.0.0 <JREversion> = jdk8u322-b06, 8u322b06, jdk8u422-b05-jre, jdk-21.0.4_7-jre



Download Installers: https://support.broadcom.com/group/ecx/productdownloads?subfamily=Data%20Loss%20Prevention
Agent File: Symantec_DLP_<DLPversion>_<MP>_Agent_Lin-IN.zip

Configure the Agent package for distribution:
    1 - Access the DLP Web Interface
          - open a browser and go to the localhost
               https://<enforce>/ProtectManager/Logon
          - The default user is "Administrator", use the password previously specified during the Enforce installation process
               User: Administrator
               Pass: <your password>

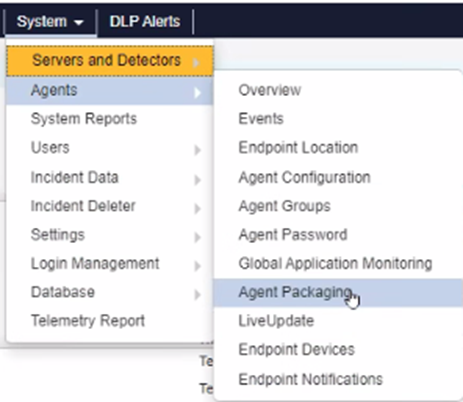

     2 - Open the Agent Packaging

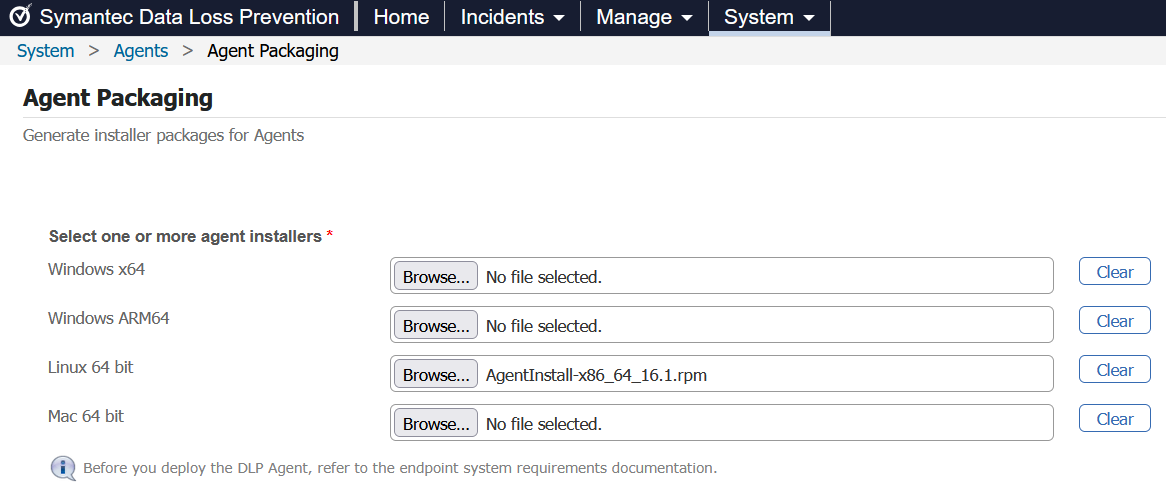

  3  - Enter in the package information:

4 - Choose the installer package you wish to build out for distribution.
     Endpoint Server Host: IP Address of your Endpoint server
     Port: 10443 (default)
     Tools Password: <Your Password>
            - The Tools password is critical for managing the agents.

5 - Once all fields are populated, select "Generate Installed Packages"



6 - Once the package is downloaded, copy the package to the Agent Machine

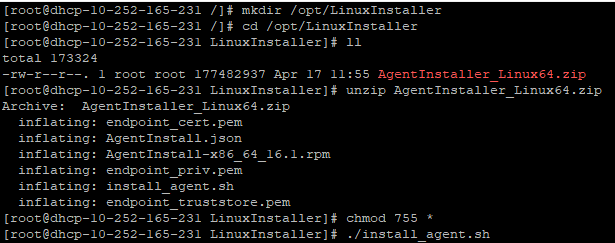

- Open a terminal and run:

mkdir /opt/LinuxInstaller
   (Copy the agent package to the following directory using the utility of your choice:

/opt/LinuxInstaller

- In the Terminal run:

cd /opt/LinuxInstaller

- Run:

chmod 755 AgentInstaller_Linux64.zip

unzip AgentInstaller_Linux64.zip

- Run the following command to set permissions on the files:

chmod 755 *

- Once unzipped and permissions are set, run the "install_agent.sh" to install the agent

./install_agent.sh

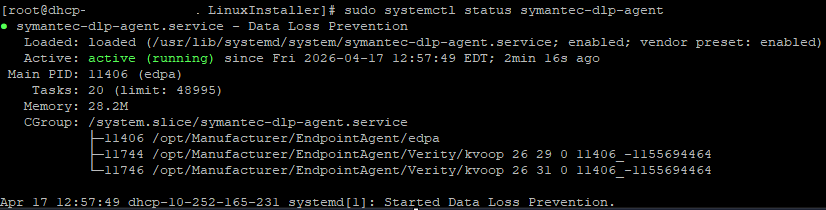

7. Once completed run the following command to confirm the agent is installed and running:

sudo systemctl status symantec-dlp-agent

Example output below:

n.

- Check the Enforce Console to confirm the agent is reporting in
                    System > Agents > Overview

For more information on installing the DLP Linux Agent refer to the official documentation: Install the DLP Agent for Linux

For information on uninstalling the DLP Linux Agent refer to the official documentation: Removing a DLP Agent from a Linux Endpoint
