VMware Live Site Recovery incorrectly identifying or automatically including a LUN into an existing Protection Group

Products

• VMware Live Recovery

Issue/Introduction

Symptoms:

• VMware Live Site Recovery incorrectly identifying or automatically including a LUN into an existing Protection Group typically when array-based replication is used.

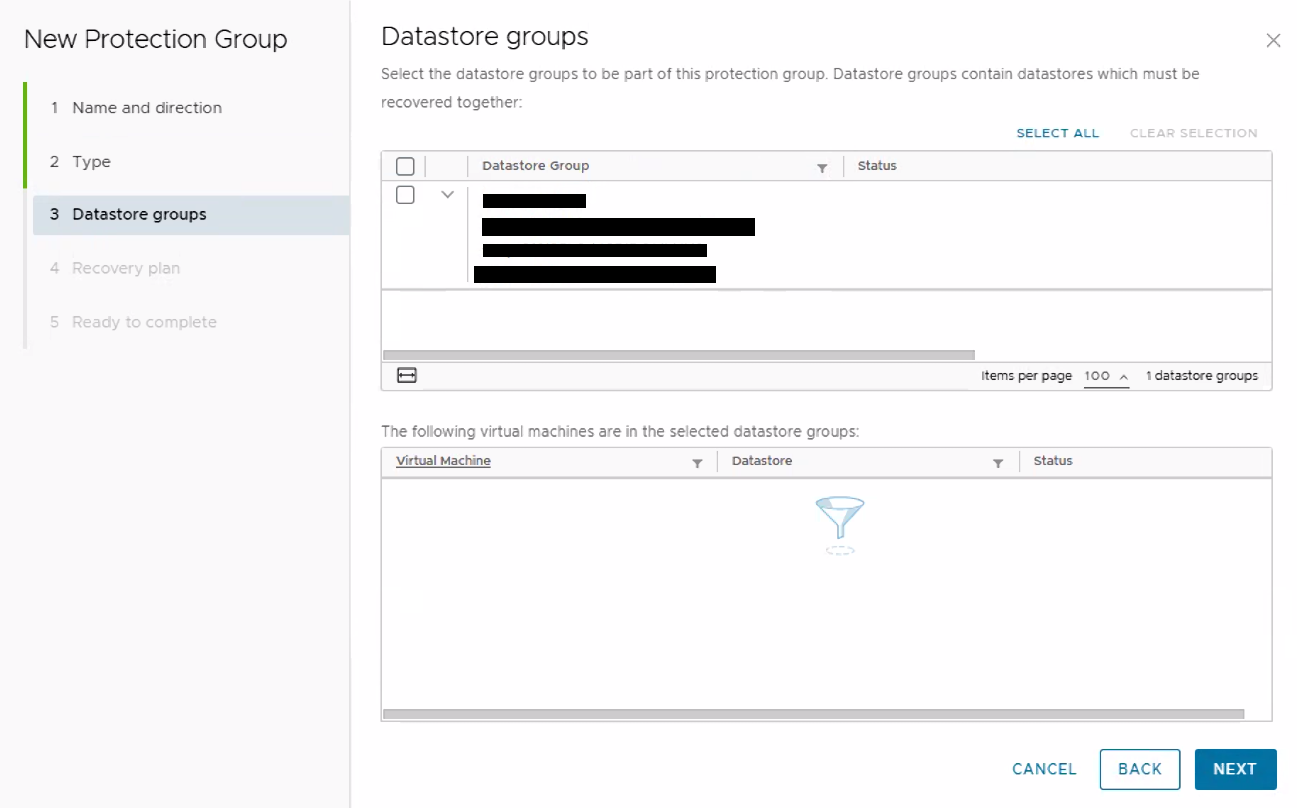

• Multiple datastores are grouped together when creating a new protection group:


Environment

• VMware Live Site Recovery 9.x

Cause

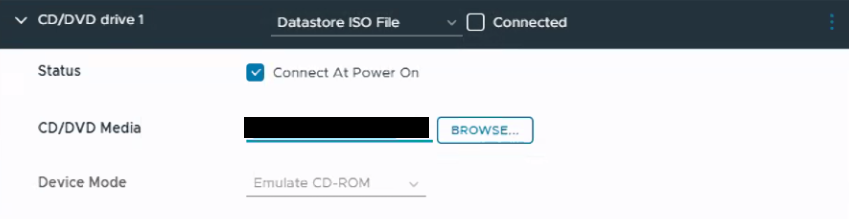

• This issue typically occurs when VMware Live Site Recovery detects a dependency conflict. Specifically, it happens when VMs within an active replication pair are left connected to linked ISO files that reside on a separate LUN:


Resolution

• To resolve this conflict, unmount the ISO images and change the CD-ROM drive settings to 'Client Device' mode.
