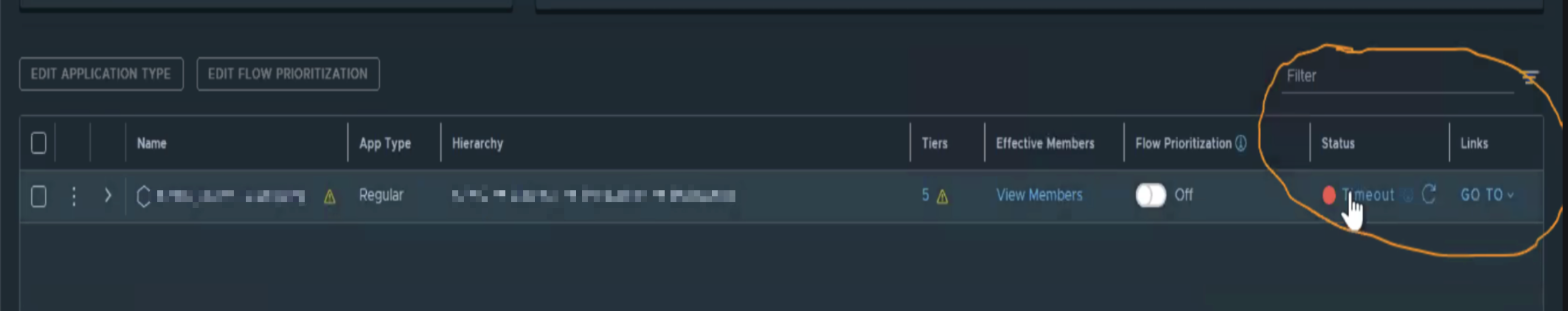

SSP Application status shows Timeout after Publish

Products

• VMware vDefend Firewall with Advanced Threat Prevention
• VMware vDefend Firewall

Issue/Introduction

In some SSP environments integrated with NSX, applications may fail to reach a SUCCESS state and application recommendation may not start, even though the application is successfully published and visible.

Symptoms

• Application Recommendation fails with:
  “Failed to start recommendation… application status has to be SUCCESS… Code: 912100”


• Application visible in Segmentation Monitoring but not usable


• Inventory may show timeout or internal error


• NSX status shows “Ready” in SSP UI





Kafka connectivity broken logs in nsxapi.log

INFO kafka-producer-network-thread | producer-1621088 NetworkClient 5239 [Producer clientId=producer-1621088] Node 0 disconnected.
ERROR kafka-producer-network-thread | producer-1621088 NetworkClient 5239 [Producer clientId=producer-1621088] Connection to node 0 (/x.x.x.x:9092) failed authentication due to: Failed to process post-handshake messages
INFO kafka-producer-network-thread | producer-1621088 NetworkClient 5239 [Producer clientId=producer-1621088] Cancelled in-flight API_VERSIONS request with correlation id 2464803 due to node 0 being disconnected (elapsed time since creation: 1ms, elapsed time since send: 1ms, request timeout: 30000ms)
INFO kafka-producer-network-thread | producer-1229 Selector 5239 [Producer clientId=producer-1229] Failed re-authentication with /x.x.x.x (channelId=0) (Failed to process post-handshake messages)
INFO kafka-producer-network-thread | producer-1229 NetworkClient 5239 [Producer clientId=producer-1229] Node 0 disconnected.
ERROR kafka-producer-network-thread | producer-1229 NetworkClient 5239 [Producer clientId=producer-1229] Connection to node 0 (/x.x.x.x:9092) failed authentication due to: Failed to process post-handshake messages



Due to this kafka connectivity issues, full sync goes into error state initially and then into loop of fullsync

INFO Thread-21216 FullConfigProducerImpl 5239 INTELLIGENCE [nsx@6876 comp="nsx-manager" level="INFO" subcomp="manager"] Start sending intelligence full config to NSX Intelligence, SSP.
 INFO Thread-21218 FullConfigProducerImpl 5239 INTELLIGENCE [nsx@6876 comp="nsx-manager" level="INFO" subcomp="manager"] Start sending intelligence full config to NSX Intelligence, SSP.
INFO Thread-21222 FullConfigProducerImpl 5239 INTELLIGENCE [nsx@6876 comp="nsx-manager" level="INFO" subcomp="manager"] Start sending intelligence full config to NSX Intelligence, SSP.

Every 5 minutes new full sync is getting triggered.



Environment

SSP : 5.1 , 5.1.1

This issue is observed in NSX 4.2.x versions prior to 4.2.4

Cause

The issue is caused by a sync failure between NSX and SSP due to Kafka communication instability, which leads to:

1. Full sync never completing
   • Sync continuously restarts every ~5 minutes
   • Group normalization does not occur for newly created objects
2. Incomplete data propagation from NSX
   • Group metadata (expressions, name) not populated in SSP
   • Application objects become partially updated
3. Database update failures
   • Segmentation object name becomes null
   • DB constraint violation prevents proper state update

As a result, although the application is published in NSX, SSP cannot mark it as SUCCESS, causing recommendation workflows to fail.

Resolution

Restart Proton services on all NSX Manager nodes

systemctl restart proton

This clears the sync state and triggers a fresh full synchronization between NSX and SSP.
