ESXi host Not Responding with "bootbank cannot be found" errors on HPE servers

book

Article ID: 437059

calendar_today

Updated On:

Products

VMware vSphere ESXi

Issue/Introduction

  • The host is marked as "Not Responding" in vCenter Server, the Virtual Machines keep running on the host.
  • The DCUI console displays the error: Bootbank cannot be found at path '/bootbank'

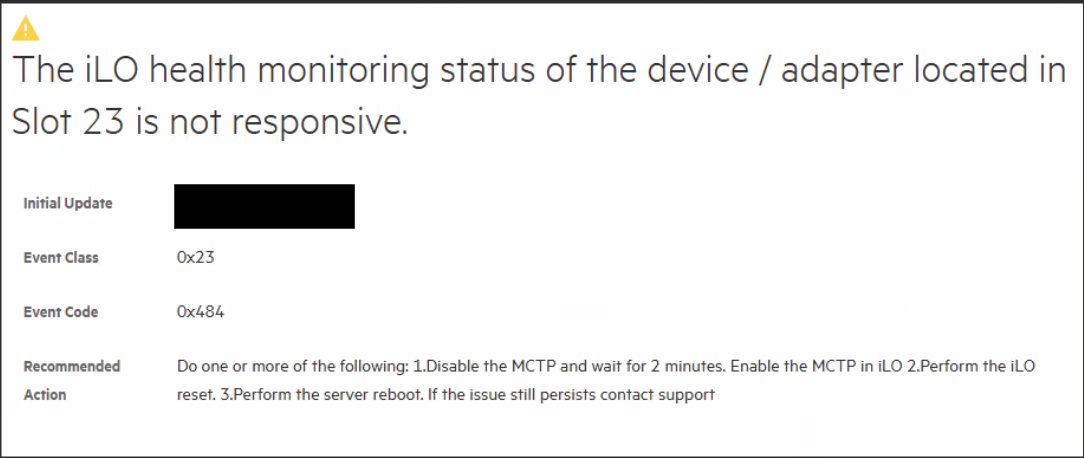

  • IPMI logs on the iLO may report: The iLO health monitoring status of the device/adapter located in Slot ## is not responsive.

  • The device in Slot ## is identified as the NVMe boot device.
  • Attempts to access logs on the ESXi host makes the SSH session may hung.
  • Under /var/run/log/syslog.log, below error log snips are found:

    YYYY-MM-DDTHH:MM:SS Wa(##) smartd[#######]: t10.NVMe____########___________________________############: REALLOCATED SECTOR CT below threshold (0 < 90)

  • Under /var/run/log/vmkernel.log, below error log snips are found:

    YYYY-MM-DDTHH:MM:SS In(###) vmkernel: cpu##:#####)FSS: ####: Failed to open file 'hpilo-d0####'; Requested flags 0x5, world: ####### [smadv], (Existing flags 0x0, world: 0 [unknown]): Busy

  • Under /var/run/log/vmkwarning.log, below error log snips are found:

    YYYY-MM-DDTHH:MM:SS Wa(###) vmkwarning: cpu##:#####)WARNING: PLOG: PLOGProbeDevice:####: Failed to read the device <t10.NVMe____HPE_NS204i2Du_Gen11_Boot_Controller______############:#> : Not found

    YYYY-MM-DDTHH:MM:SS Wa(###) vmkwarning: cpu##:#####)WARNING: HPP: HppNvmeThrottleLogForDevice:###: Admin NVMe Cmd 0x6 (0x#######, #) to dev "t10.NVMe____HPE_NS204i2Du_Gen11_Boot_Controller______############:#" on path "vmhba0:C0:T0:L0" Failed:

    YYYY-MM-DDTHH:MM:SS In(###) vmkernel: cpu76:######)PLOG: PLOGProbeDevice:####: Probe could not open device <t10.NVMe____HPE_NS204i2Du_Gen11_Boot_Controller______############:#> : Permission denied

Cause

  • The device in Slot ## mentioned in the issue corresponds to the NVMe boot device.
  • This issue is caused by a firmware bug affecting the HPE NVMe boot device, specific to HPE Gen 10 or higher servers with the Boot Controller NS204i.
  • The ESXi kernel loses connection to the boot partition, the bootbank becomes inaccessible, causing management services to hang.

Resolution

Follow the steps below, to resolve this issue.
