How to access Tanzu Hub GraphQL API via Altair

Products

• VMware Tanzu Platform - Hub

Issue/Introduction

Tanzu Hub provides a built-in GraphQL client (Altair) that allows developers and platform engineers to explore the schema, test queries, and execute mutations directly within the platform.



Tanzu Hub is built on an "API-first" architecture where all assets and operations are accessible through a public GraphQL API. To facilitate rapid development and troubleshooting, Tanzu Hub includes a local instance of the Altair GraphQL Client.

Environment

Tanzu Hub

Cause



Resolution

Prerequisites

• Permissions: You must have a Tanzu Platform Admin or appropriate service role to access API tools.

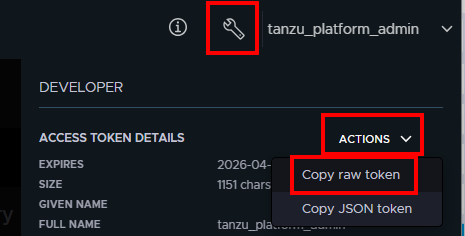

• Authentication Token: You will need a valid Bearer token. This can be obtained by selecting the developer tools icon (wrench) in the top navigation bar of Tanzu Hub and choosing Copy raw token:




• Network: Ensure your browser can reach the Tanzu Hub FQDN on port 443.



Connection Steps

1. Access the Endpoint:

   Open your web browser and navigate to the following URL pattern: https://<YOUR-TANZU-HUB-FQDN>/hub/altair

   Note: Replace <YOUR-TANZU-HUB-FQDN> with the hostname configured during your Tanzu Hub installation (e.g., hub.example.com).



2. Configure Authentication Headers

   Because Tanzu Hub is secure by default, you must provide your authentication token in the request header:



   • In the Altair interface, click the Set Headers icon:

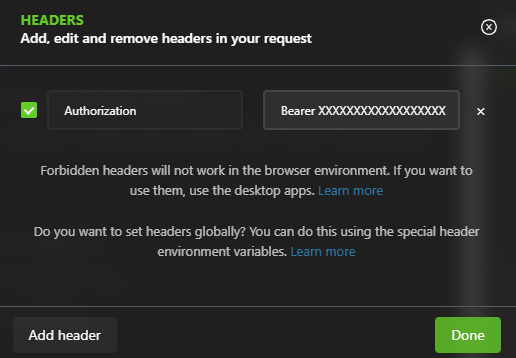

   • Add a new header with the following key-value pair:
     1. Header Key: Authorization
     2. Header Value: Bearer <YOUR_TOKEN_HERE>




   • Click Save or Done.



3. Verify the Connection

   1. In the URL bar within Altair (next to the POST method), ensure the API target is set to: https://<YOUR-TANZU-HUB-FQDN>/hub/graphql
   2. Click the Docs button on the right sidebar to verify that the schema loads successfully. If you see the documentation for types and queries, your connection is active.
      • NOTE: The schema can be downloaded to assist query creation after clicking the Docs button:






4. Sample Query



   To test your connection, paste the following query into the editor window to list the spaces attached to your Hub:



   • GraphQL:

     query getSpaces(
  $filter: QueryFilter,
  $first: Int = 10,
  $after: String,
  $sort: [QuerySort!],
  $spaceEntityId: [EntityId!],
) {
  entityQuery {
    queryEntities(
      entityTypeConst: Tanzu_TAS_Space,
      entityId: $spaceEntityId,
      first: $first,
      after: $after,
      filter: $filter,
      sort: $sort,
    ) {
      totalCount
      pageInfo {
        hasNextPage
        endCursor
      }
      entities {
        name: entityName
        id: entityId
        entityType
        creationTime
        lastUpdateTime
        properties {
          name
          value
          type
        }
        organization: entitiesOut(entityType: "Tanzu.TAS.Organization") {
          entities {
            name: entityName
            id: entityId
            entityType
            foundation: entitiesOut(entityType: "Tanzu.TAS.Foundation") {
              entities {
                name: entityName
                id: entityId
                entityType
              }
            }
          }
        }
      }
    }
  }
}



5. Troubleshooting

   • 401 Unauthorized: Your token may have expired. Generate a new "raw token" from the developer tools menu in the Tanzu Hub UI.
   • Site Can't Be Reached: Ensure you are using https and that no firewall is blocking traffic to the Hub FQDN on port 443.
   • Intelligent Assist Support: If you need help generating complex GraphQL for programmatic use, you can ask Tanzu Intelligent Assist (TIA) directly within the UI (e.g., "Generate a GraphQL query for my Spring apps").
