VCF Operations for Networks shows Overall health Poor with Processing Grid Problems related to Dropped Message: com.vnera.model.cmdb.servicenow.GenericServiceNowEntitySDM.inventory Size: 17.189MB

Products

• VCF Operations for Networks

Issue/Introduction

• VCF Operations for Networks shows Overall health Poor with Processing Grid Problems.

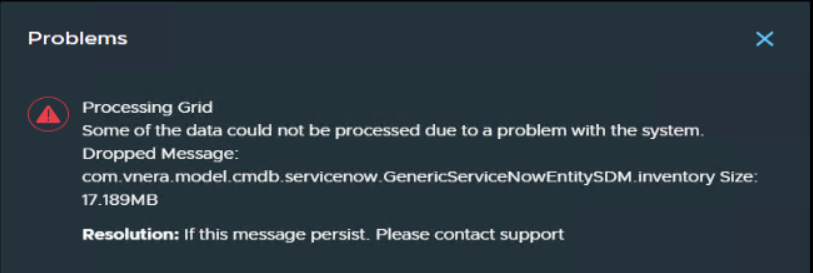

• Alerts on GUI shows below message:
  Some of the data could not be processed due to a problem with the system. Dropped Message: com.vnera.model.cmdb.servicenow.GenericServiceNowEntitySDM.inventory Size: 17.189MB


• Reference screenshot as below:

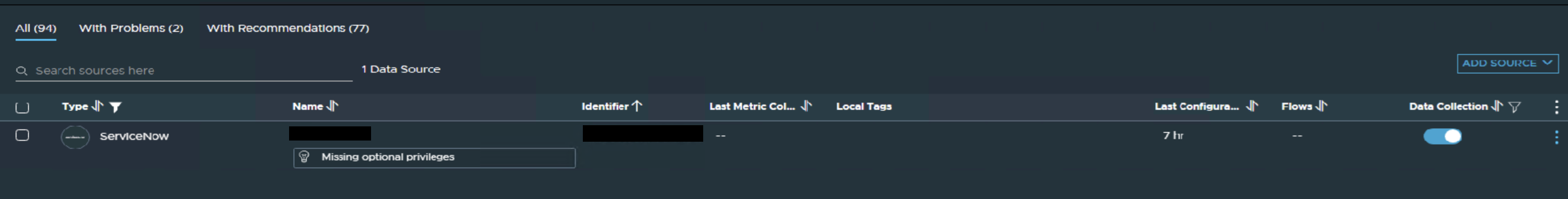

• Datasource added in VCF Operations for Network is Service Now.




• From saasservice logs location on platform, node at location /var/log/arkin/saasservice/ below errors entries can been seen:




   YYYY-MM-DDT08:27:31.890Z WARN vnera.grid.KafkaSdmPublisher dw-2123930 - POST /collectortosaasservlet handleLargeSdm:152 ignoring large sdm key=com.vnera.model.cmdb.servicenow.GenericServiceNowEntitySDM.inventory len(sdmbytes)=17403449
  YYYY-MM-DD-T12:03:07.353Z WARN vnera.grid.KafkaSdmPublisher dw-2159998 - POST /collectortosaasservlet handleLargeSdm:152 ignoring large sdm key=com.vnera.model.cmdb.servicenow.GenericServiceNowEntitySDM.inventory len(sdmbytes)=17403449
  YYYY-MM-DDT15:38:51.032Z WARN vnera.grid.KafkaSdmPublisher dw-2201037 - POST /collectortosaasservlet handleLargeSdm:152 ignoring large sdm key=com.vnera.model.cmdb.servicenow.GenericServiceNowEntitySDM.inventory len(sdmbytes)=17403501
  YYYY-MM-DDT11:29:18.116Z WARN vnera.grid.KafkaSdmPublisher dw-2230780 - POST /collectortosaasservlet handleLargeSdm:152 ignoring large sdm key=com.vnera.model.cmdb.servicenow.GenericServiceNowEntitySDM.inventory len(sdmbytes)=17403569
  YYYY-MM-DDT11:29:18.116Z WARN vnera.grid.KafkaSdmPublisher dw-2230780 - POST /collectortosaasservlet handleLargeSdm:152 ignoring large sdm key=com.vnera.model.cmdb.servicenow.GenericServiceNowEntitySDM.inventory len(sdmbytes)=17403569pw







Environment

VCF Operations for Networks 6.14.1

Cause

The inventory SDM is being dropped due to its large size. This results in the inconsistency checker deleting objects that lack inventory. Consequently, applications are being deleted after each discovery process every day.

Resolution

To fix this issue a configuration change is needed on the VCF Operations for Networks platform appliance to allow change max allowed SDM size which should resolve this issue.

For further assistance on steps, open a Broadcom support case. For more information, see Creating and managing Broadcom support cases.
