Logmon variables fail to display in alarm message for command mode profiles
Article ID: 436038
Updated On:
Products
Issue/Introduction
Environment
- Product: DX Unified Infrastructure Management (Nimsoft / UIM)
- Probe: logmon (any version)
- OS: Linux/UNIX (e.g., AIX)
Cause
The issue is typically caused by a mismatch between the regular expression (regex) in the Match Expression and the variable definition offsets. If the regex does not correctly group the output or if the character offsets are misaligned, the probe cannot extract the required strings for dynamic substitution in the alarm message.
Resolution
To resolve this, update the logmon profile with a refined regex and explicit character-based variable offsets.
Step 1: Refine the Match Expression
Ensure the regex accurately captures the command output lines. For monitoring missing or failed disks, use a regex that handles leading/trailing whitespace and groups the identifiers.
Example Regex: /^\s*((?i)missing)\s+(hdisk\S+)\s+(\S+)\s*$/ (Matches lines like: Missing hdisk0 fscsi0)

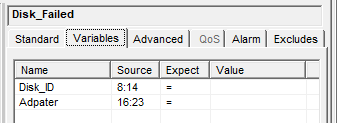

Step 2: Define Variables with Character Offsets
Instead of relying solely on match groups, use specific character positions to ensure precise extraction from the AIX command output.

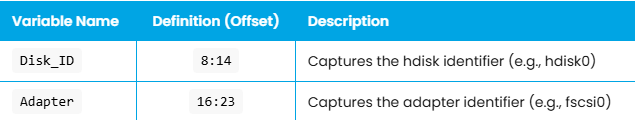

Example
Step 3: Configure the Alarm Message
Use the ${Variable_Name} syntax in the Message to Send on Match field to ensure dynamic substitution.
Example Message: AIX Disk Missing Detected: ${Disk_ID} is missing on adapter ${Adapter}

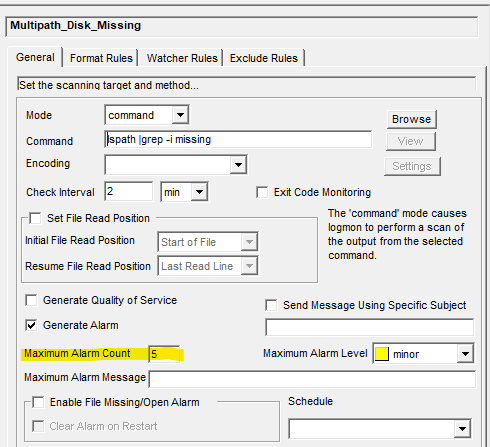

Step 4: Adjust Probe Thresholds
If the command output contains multiple lines (e.g., multiple failed disks), ensure the max_alarms setting is high enough to process all matches in a single scan interval.
