PVC cannot be deleted via vSphere Client with task error "A specified parameter was not correct: Cannot be performed on FCD with snapshots"

Products

• VMware Cloud Native Runtimes

Issue/Introduction

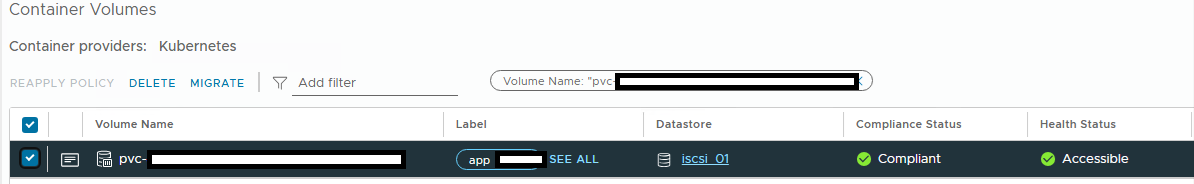

vSphere client does not allow the deletion of a PVC:



The task "Delete a virtual storage object" fails with error:

"A specified parameter was not correct: Cannot be performed on FCD with snapshots. Snapshot ############# relies on this FCD"



Environment

vSphere 8.0U3

Cause

Existing snapshot prevents deletion of PVC. This is by design.

Resolution

Make sure that the snapshot is not being used by a backup solution.



Delete existing snapshot for the related PVC via vCenter Mob:



a) Connect to the vCenter database:

/opt/vmware/vpostgres/current/bin/psql -U postgres -d VCDB



b) Get the volume_id of the PVC snapshot

VCDB=# select volume_id, volume_name  from cns.volume_info where volume_name like '%pvc-##############################%';

              volume_id               |               volume_name
--------------------------------------+------------------------------------------
 ###########################          | pvc-##############################



Note: volume_name corresponds to the PVC name displayed in the vCenter GUI.



c) Retrieve associated snapshots

Run the following query to list all snapshots linked to the PVC volume:


 VCDB=#  select volume_id,snapshot_id,create_time from cns.vpx_storage_snapshot_info where volume_id='###########################';

              volume_id               |             snapshot_id              |       create_time
--------------------------------------+--------------------------------------+-------------------------
 ##############################       | ##############################       | 2024-01-22 14:11:13.452
 ##############################       | ##############################       | 2024-03-19 11:49:20.201
 ##############################       | ##############################       | 2025-03-06 15:12:39.972



d) Delete stale snapshots using vCenter MOB

https://<vCenter IP>/vslm/mob//?moid=VStorageObjectManager&method=VslmDeleteSnapshot_Task

• Enter the volume_id and snapshot_id for each stale snapshot.

• Click Invoke Method.



 After the removal of the snapshot the DELETE task of the PVC should be successful.
