Changes on OC groups failed if wasp auditing is enabled in Linux: Internal Server Error 500

Products

• DX Unified Infrastructure Management (Nimsoft / UIM)

Issue/Introduction

• Symptoms:


  • When attempting to edit, create, or save a Group in the DX UIM Operator Console (OC) on Linux, the action fails with an "Internal Server Error."
  • Save of changed groups failed if wasp auditing is enabled: 500 errors are found on browser's DevTools:



• Key Observations:


  • The issue is NOT present in 23.4 CU5 or earlier. The issue begins occurring immediately after upgrading to 23.4 CU6 (or higher).

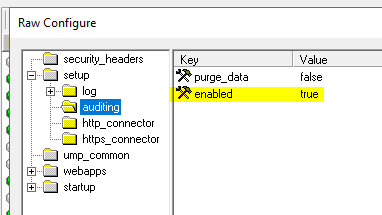

  • The issue only occurs when auditing key in wasp/setup/auditing is set to true.






  • When auditing is set to false, the issue does not occur.
  • The error is specific to Linux-hosted OC
  • Reinstalling OC from Scratch doesn't resolve the issue



• Error Strings in OC GUI when the issue occurs:

  java.lang.NoClassDefFoundError: Could not initialize class org.springframework.jdbc.core.metadata.TableMetaDataProviderFactory

java.lang.NoSuchMethodError: 'java.lang.ClassLoader org.apache.commons.logging.LogFactory.getClassLoader(java.lang.Class)'

Environment

• DX UIM 23. CU6 and higher
• wasp probe (Operator Console)
• OS on OC: Linux (All distributions)

Cause

• Starting with CU6, the OC frameworks was updated which have a strict requirement for updated logging and database metadata handling.


• Legacy JAR files (leftovers from previous versions) may exist in the /probes/service/wasp/lib/ directory, the Linux JVM loads them before the updated libraries inside the OC portlet, causing this issue.

Resolution

Steps to resolve this issue:

• Step 1: Set Java Headless Mode

  Open the wasp probe in Raw Configure.


  1. Navigate to the setup section.
  2. Add the following to the options (JVM options) key:

     -Djava.awt.headless=true


  3. Remove any legacy overrides, specifically:

     -Dorg.apache.commons.logging.LogFactory=org.apache.commons.logging.impl.LogFactoryImpl

     Example from a lab on how the section should look like:

     <startup>
    options = -Dfile.encoding=UTF-8 --add-opens java.base/java.util=ALL-UNNAMED -Djava.awt.headless=true
    <opt>
        java_mem_max = -Xmx4096m
        java_mem_init = -Xms512m
    </opt>
</startup>




• Step 2: Remove Legacy Conflict JARs

  Identify and remove the "shadow" JARs from the shared library path.


  1. Navigate to: /opt/nimsoft/probes/service/wasp/lib/


  2. Move the following legacy files to a backup location outside of the Nimsoft directory:

• • • commons-logging-1.1.3.jar
    • spring-data-jdbc-core-1.2.1.RELEASE.jar



• Step 3: Clear Cache and Restart


  1. Deactivate the wasp probe.


  2. Clear the work directory to remove "poisoned" compiled classes:

     rm -rf /opt/nimsoft/probes/service/wasp/work/*



  3. Activate the wasp probe.
