ZTNA application is returning redirect url with non standard port

Products

• Symantec ZTNA

Issue/Introduction

A web-application is failing to work via ZTNA because the redirect responses are pointing to the application with the client port rather than the server port.

For example the server returns:

Location: example.luminatesec.com:45161

Instead of:

Location: example.luminatesec.com

Environment

ZTNA

Cause

The application access via ZTNA is taking the information from the "X-Forwarded-Port" and uses it in the redirect url which is breaking the application.

Here is a sample http request output to a test Python server, via ZTNA, showing the headers added by ZTNA to the http request:

Internet Protocol Version 4, Src: 10.0.0.1, Dst: 10.0.0.2
Transmission Control Protocol, Src Port: 54242, Dst Port: 80, Seq: 1, Ack: 1, Len: 1443
Hypertext Transfer Protocol
    GET / HTTP/1.1\r\n
    Host: 10.0.0.2\r\n
    User-Agent: Some user agent string\r\n
    Referer: https://example.luminatesec.com/\r\n
    Sec-Ch-Ua: "Not(A:Brand";v="8", "Chromium";v="144", "Google Chrome";v="144"\r\n
    Upgrade-Insecure-Requests: 1\r\n
    X-Forwarded-For: 127.0.0.1\r\n
    X-Forwarded-Host: python-web-server-app.example.luminatesec.com\r\n
    X-Forwarded-Port: 45161\r\n
    X-Forwarded-Proto: HTTPS\r\n
    Connection: close\r\n

Resolution

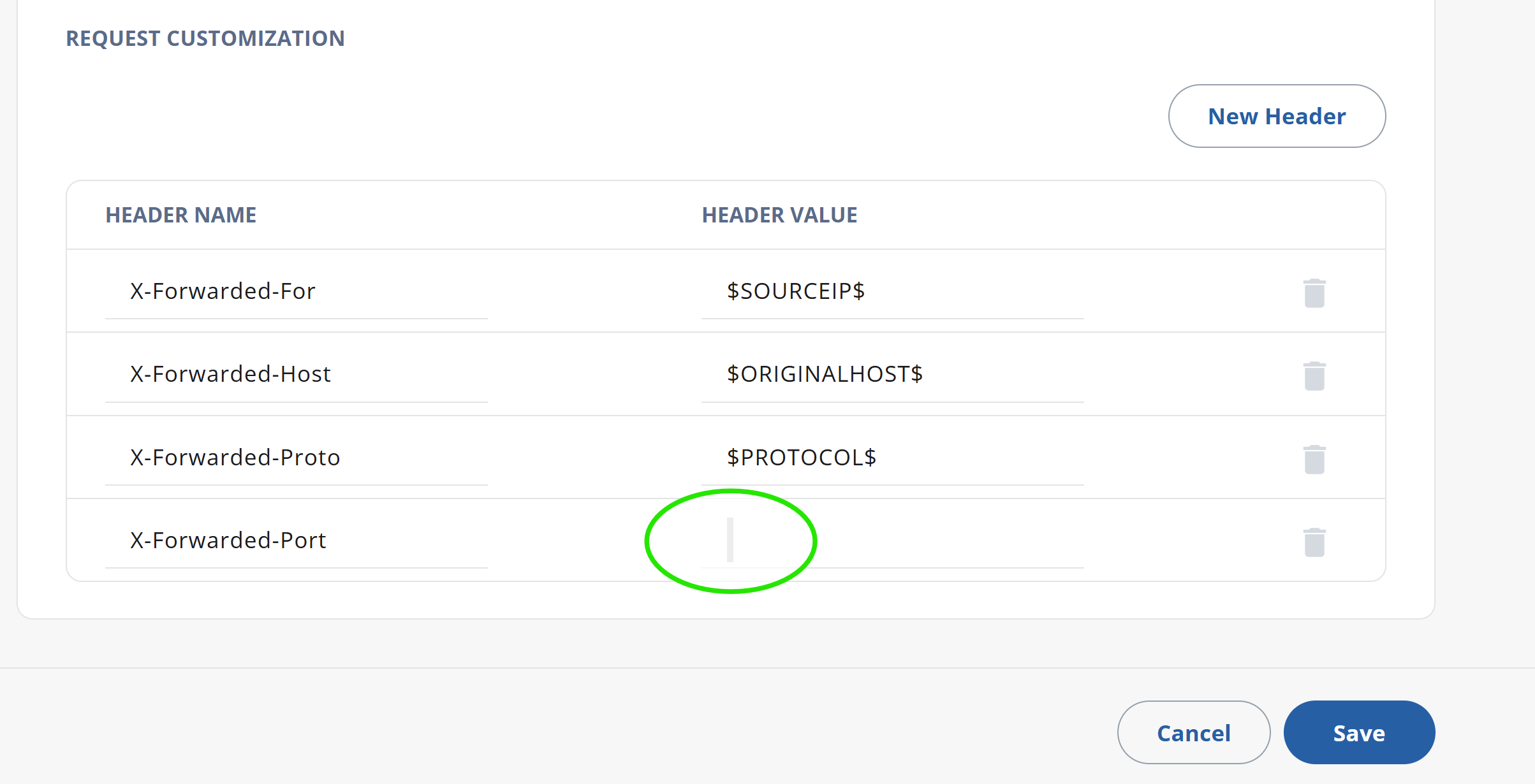

Because the header is added by ZTNA by default and is not available for deletion in the ZTNA application UI (Web application -> advanced -> request customisation fields) we need to add a custom header named "X-Forwarded-Port" with a white space (" " without the double quote in the value field) to avoid those redirect problems, as illustrated below (the space value is selected with the mouste to make it visible).
