Local Datastores show disconnected and vSAN disks report as Absent and storage pool unhealthy

book

Article ID: 434803

calendar_today

Updated On:

Products

VMware vSphere ESXi VMware Cloud Foundation

Issue/Introduction

Symptoms:

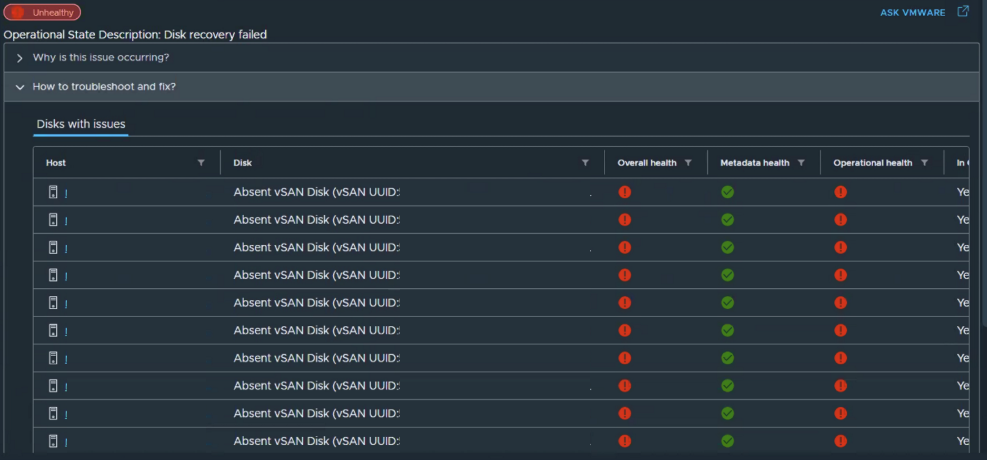

  • From Skyline Health, an Operation Health warning will be observed, where all disks is reported as Absent, and the StoragePool status will be marked as unhealthy

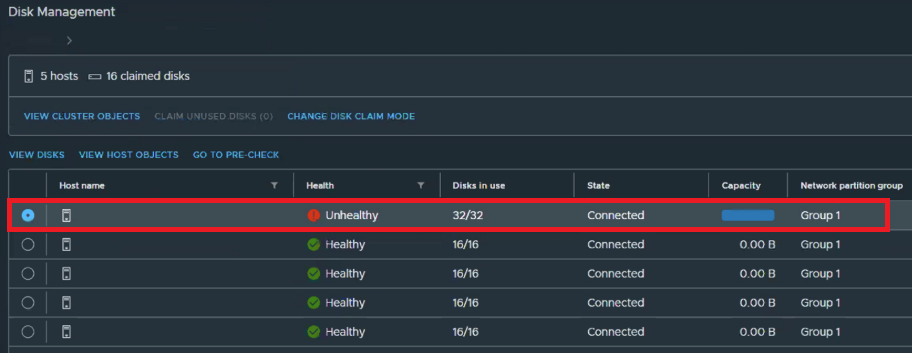

  • From disk management, the host reports more disks compared to disks present in the environment.

  • Validation using vdq -iH shows that vSAN is unable to read disk metadata from multiple NVMe devices:

[root@esxihost:/] vdq -iH
VsanUtil::ReadFromDevice: Failed to open /vmfs/devices/disks/t10.NVMe____Dell_DC_NVMe_#####_RI_U.2_3.84TB________###########, errno (19)
VsanUtil::GetVsanDisks: Error occurred 'Failed to open device /vmfs/devices/disks/t10.NVMe____Dell_DC_NVMe_#####_RI_U.2_3.84TB________###########', create disk with null id

  • /var/log/hostd.log for property collection tasks will fail:

    2026-03-23T10:11:16.915Z In(166) Hostd[2100215]: [Originator@6876 sub=Vimsvc.TaskManager opID=867d34eb-e218 sid=52c32ab5 user=dcui:vsanmgmtd] Task Created : vmodlTask-ha-host-57179112
    2026-03-23T10:11:16.920Z In(166) Hostd[2100204]: [Originator@6876 sub=Http2ServerSession-6120] Starting Http2Session (server): <io_obj t:N7Vmacore6System19TCPSocketObjectAsioE, h:103, <TCP '127.0.0.1 : 8307'>, <TCP '127.0.0.1 : 60883'>>
    2026-03-23T10:11:16.923Z In(166) Hostd[2100206]: [Originator@6876 sub=Solo.Vmomi opID=e378e21e sid=52689d6a] Activation finished; <<52689d6a-214a-c8cc-f0c8-ad0b5eafcb0c, <TCP '127.0.0.1 : 8307'>, <TCP '127.0.0.1 : 60883'>>, ha-property-collector, vmodl.query.PropertyCollector.createPropertyCollector, <vim.version.v9_0_0_0, internal, 9.0.0.0>, [N11HostdCommon18VmomiAdapterServer19ActivationResponderE]>
    2026-03-23T10:11:16.923Z In(166) Hostd[2100206]: [Originator@6876 sub=Solo.Vmomi opID=e378e21e sid=52689d6a] Throw vim.fault.NotAuthenticated
    2026-03-23T10:11:16.923Z In(166) Hostd[2100206]: [Originator@6876 sub=Solo.Vmomi opID=e378e21e sid=52689d6a] Result:
    2026-03-23T10:11:16.923Z In(166) Hostd[2100171]: --> (vim.fault.NotAuthenticated) {
    2026-03-23T10:11:16.923Z In(166) Hostd[2100171]: -->    object = 'vmodl.query.PropertyCollector:ha-property-collector',
    2026-03-23T10:11:16.923Z In(166) Hostd[2100171]: -->    privilegeId = "System.View",
    2026-03-23T10:11:16.923Z In(166) Hostd[2100171]: -->    msg = "",
    2026-03-23T10:11:16.923Z In(166) Hostd[2100171]: --> }

  • The corresponding property collection tasks will have the below errors in /var/log/vmkernel.log:

2026-03-23T10:11:16.919Z In(182) vmkernel: cpu115:2285966 opID=be3c44c0)World: 12868: VC opID 867d34eb maps to vmkernel opID be3c44c0
2026-03-23T10:11:16.920Z In(182) vmkernel: cpu115:2285966 opID=be3c44c0)Device: 435: Unable to allocate device ID memory on heap 0x430a7cc00000
2026-03-23T10:11:16.920Z In(182) vmkernel: cpu115:2285966 opID=be3c44c0)Device: 435: Unable to allocate device ID memory on heap 0x430a7cc00000

  • Scheduler queue allocation for NVMe FDs will fail.
  • /var/log/vmkernel.log will report:

2026-03-23T10:10:12.648Z In(182) vmkernel: cpu85:2285967 opID=57ce6f15)World: 12868: VC opID e09e1465-3492 maps to vmkernel opID 57ce6f15
2026-03-23T10:10:12.648Z Wa(180) vmkwarning: cpu85:2285967 opID=57ce6f15)WARNING: StorageSched: 1739: StorSchedQAllocByType: could not allocate scheduler queue for world 0
2026-03-23T10:10:12.648Z In(182) vmkernel: cpu85:2285967 opID=57ce6f15)StorageSched: 2250: SchedQ creation failed for worldID 0 for t10.NVMe____Dell_BOSS2DN1____________________________#########
2026-03-23T10:10:12.664Z Wa(180) vmkwarning: cpu85:2285967 opID=57ce6f15)WARNING: NvmeFds: 1327: Memory allocation failed

  • VSI Node for claim rules will report "Out Of Memory" in /var/log/vmkernel.log:

2026-03-23T10:15:09.885Z In(182) vmkernel: cpu115:79005511)ScsiPathClaimVsi: 1534: Out of memory.
2026-03-23T10:15:45.026Z In(182) vmkernel: cpu76:79006379)ScsiPathClaimVsi: 1534: Out of memory.

  • There will be no impact on the VM or ESXi I/O path

Environment

  • VMware vSphere ESX 9.x
  • VMware Cloud Foundation 9.0



Cause

  • This issue occurs due to a memory leak in NVMe SMART statistics VSI node get calls.
  • Over time, this causes the storageHeap to run out of memory.
  • The property collector calls on all VSI nodes ultimately fail causing health service to report erratic behavior
  • /var/log/vsandevicemonitord.log show repeated errors while retrieving SMART health status for the vSAN disks:

2026-03-22T12:40:36Z In(14) vsandevicemonitord[2287920]: [1087063224832]: Exception Out of memory getting SMART health status for vSAN disk t10.NVMe____Dell_DC_NVMe_PM9A3_RI_U.2_3.84TB________#########.
2026-03-22T12:40:36Z In(14) vsandevicemonitord[2287920]: [1087063224832]: Exception Out of memory getting SMART health status for vSAN disk t10.NVMe____Dell_DC_NVMe_PM9A3_RI_U.2_3.84TB________#########.

2026-03-19T06:49:27Z In(14) vsandevicemonitord[2287920]: [1087063224832]: Exception Out of memory retrieving SMART percentage used for vSAN disk t10.NVMe____Dell_DC_NVMe_PM9A3_RI_U.2_3.84TB________#########.
2026-03-19T06:49:27Z In(14) vsandevicemonitord[2287920]: [1087063224832]: Exception Out of memory getting SMART health status for vSAN disk t10.NVMe____Dell_DC_NVMe_PM9A3_RI_U.2_3.84TB________#########.

  • Validation of storageHeap points to maximum heap size equal to the current allocated and high number of failed allocations

vsish -e get /system/heaps/storageHeap-0x430a7cc00000/stats
Heap stats {
   Name:storageHeap
   current heap size:430141864
   initial heap size:11534336
   current bytes allocated:430141768
   percent free of current size:0
   percent releasable of current size:0
   maximum heap size:430141864
   maximum bytes available:96

   # of failure messages:125282383
   number of succeeded allocations:482400875
   number of failed allocations:62610593
   number of freed allocations:481530200
   average size of an allocation:3221225472

  • Validation of NVMe SMART stats for the devices report "Out Of Memory".

# vsish -e get /storage/scsifw/devices/t10.NVMe____Dell_DC_NVMe_#####_RI_U.2_3.84TB________###########/nvmesmartstats
VSISHCmdGetInt():Get failed: Out of memory
Error: Error in command cat: Out of memory

Resolution

  • This issue will be fixed in VMware vSphere ESX 9.1 and VMware Cloud Foundation 9.1
  • As a workaround, reboot the affected ESXi hosts to temporarily restore functionality.
