Adding a 128 MB disk to the VM is not recognized by the guest OS windows server 2022 operating system.

Products

• VMware vSphere ESXi

Issue/Introduction

After adding virtual disk to a powered off VM, when apply the solution outlined in support article 423919 "Manual Update of the Secure Boot Platform Key in Virtual Machines" adding a 128 MB disk to the VM is not recognized by the guest OS windows server 2022 operating system.

Environment

Veeam Backups

Esxi 8u3

Cause

Virtual disk was located in Other Devices of Device Management

Resolution

Right click on "VMware Virtual disk SCSI Disk Device" and uninstall.

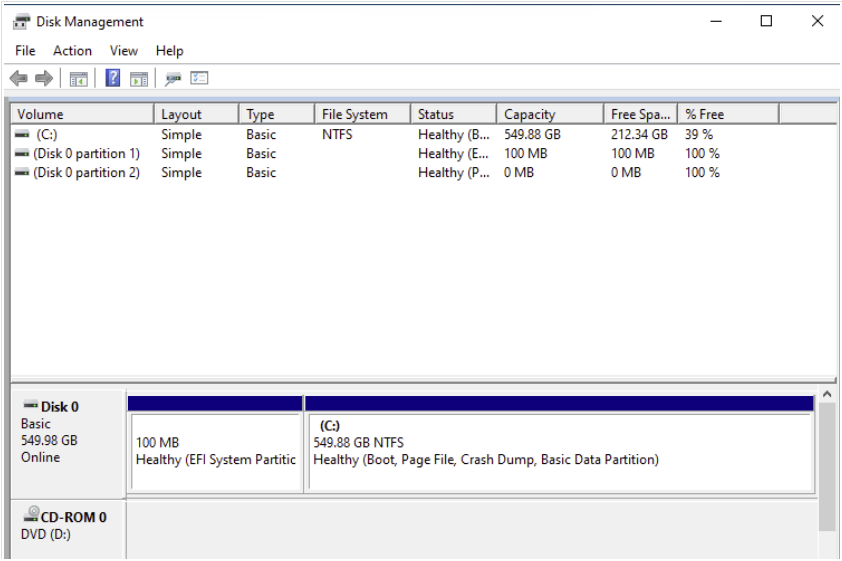

Confirm the disk now shows in "Disk Management" section of Device Management
