VCF Automation 9.0.x deployment fails with error LCMVSPHERECONFIG1000095 due to multiple networks

Products

• VCF Automation

Issue/Introduction

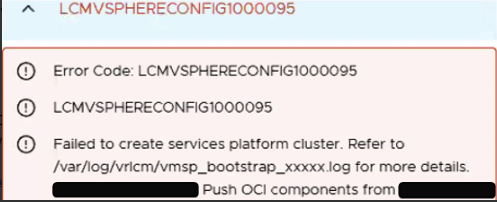

• Deploying the VCF Automation 9.0.x from the VCF Cloud Foundation Installer or VCF Fleet Management fails with the error code LCMVSPHERECONFIG1000095.



• In VCF Fleet Management, you will observe the following errors in vmware_vrlcm.log, indicating a failure to create the services platform cluster as the network path resolves to multiple networks :

  Failed to create services platform cluster. Refer to /var/log/vrlcm/vmsp_bootstrap_xxxxx.log for more details. YYYY/MM/DD HH:MM:SS Push OCI components from <UUID> ...
  YYYY/MM/DD HH:MM:SS retrying after error: failed to import /data/vmsp/vmsp-cache/_vmsp-photon-kube-v1.32.0.tar/ovas/cap-poi/vcf-services-platform-template-9.0.2.0.25068117.ova: path '/Datacenter/network/<PORT_GROUP_NAME>' resolves to multiple networks;

Environment

VCF Operations 9.0.x

VCF Fleet Management 9.0.x

Cause

Multiple port groups with the same name exist on the vCenter 9.x environment where VCF Automation 9.0.x is being provisioned.

Resolution

• Remove the unused, duplicate port group from your vCenter 9.x environment.

• Navigate to VCF Operations > Fleet Management > Lifecycle > Settings > Deployment Targets and sync the vCenter.

• Retry the failed deployment task from VCF Operations > Fleet Management > Lifecycle > Tasks.
