SCP Error: "SPC-OCP-10033: Could not connect to the Location Server"

Products

• Network Observability

Issue/Introduction

You are unable to open the Spectrum Control Panel (SCP) on the primary server in a test environment ․​​​​‌​‍

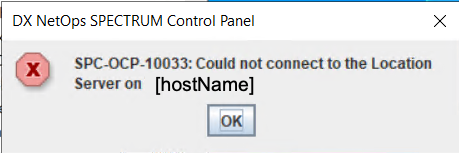

ERROR MESSAGE: "SPC-OCP-10033: Could not connect to the Location Server on [hostname]․"





Environment

Spectrum 24.3, 25.4
Windows

Resolution

1․ CREATE VBNS FOLDER

       Path: $SPECROOT/custom/
       Under $SPECROOT/custom/, create the VBNS folder․

      EXPECTED: The VBNS folder is successfully created ․

2․ COPY REQUIRED FILES Copy the following folders and files:

• $SPECROOT/bin/VBNS/identities (folder)

• $SPECROOT/bin/VBNS/trustpoints (folder)

• $SPECROOT/bin/VBNS/namingservice․xml (file)

  TO:
    $SPECROOT/custom/VBNS



  EXPECTED: Files are successfully copied to the custom directory․



3․ RESTART SERVICES

        Kill the SpectroSERVER process․
        Stop processd․

        Start processd․

     EXPECTED: Services restart cleanly․





4․ VERIFY LOGS

     Check the NAMINGSERVICE․OUT log (shows correct IOR:xxxxxx line)․
     Check the LOCSERVER․OUT log (shows ready).

     EXPECTED: Logs indicate the naming and location services are ready․





5․ RESTORE DATABASE AND LAUNCH

         Restore the SSdb․
         Launch the Spectrum Control Panel (SCP) and start the SpectroSERVER․



VERIFY SUCCESS:

• SCP launches successfully without error ․
