Peer cluster fails to be detected for vSAN Data Protection in vSphere Client

Products

• VMware Live Recovery

Issue/Introduction

Symptoms:

•  After pairing of vCenter sites successfully, peer cluster fails to show up while trying to pair the vSAN clusters under vSAN Data Protection.



Environment

• VMware Live Recovery 9.0.4

Cause

• Issue is caused due to missing vSAN Data Protection service account in the SSO user groups of vCenter


• In snapservice.log, following permission errors are seen as authorization fails due to missing VSAN Data Protection service account:

  (in /var/log/vmware/snapservice/snapservice.log)

  {"level":"error","timestamp":"2026-02-02T02:03:41.001Z","C":"auth/client.go:1450","message":"Failed to login to vc","error":"ServerFaultCode: Permission to perform this operation was denied.

  {"level":"error","timestamp":"2026-02-02T02:03:41.001Z","C":"auth/remote_client.go:305","message":"Failed to create remote VC client","RemoteSiteID":"########-####-####-####-############","error":"ServerFaultCode: Permission to perform this operation was denied.

  {"level":"error","timestamp":"2026-02-02T02:03:41.001Z","C":"remote/server.go:114","message":"Failed to create remote client","opID":"remote-vsphere-server-########-####-####-####-############","remote vsphere server":"########-####-####-####-############","SiteID":"########-####-####-####-############","error":"ServerFaultCode: Permission to perform this operation was denied."

  {"level":"error","timestamp":"2026-02-02T02:03:41.001Z","C":"sites/site.go:506","message":"Failed to create/re-initialize remote server","opID":"sites-retry-operation-f3b3","siteId":"########-####-####-####-############","error":"ServerFaultCode: Permission to perform this operation was denied."



• Observed that the SnapService service account for one site (Site-A) was missing in user groups "SnapService Service Users" and "APS Administrators" in vCenter SSO of other site (Site-B).

  Following are commands to run to list the Snapservice service account user in User Groups of vCenter:

  root@<vCenter> [ ~ ] /usr/lib/vmware-vmafd/bin/dir-cli group list --name "SnapService Service User'
Enter password for [email protected]:

CN=com.vnmare.vsan.snapservice-########-####-####-####-############,cn=ServicePrincipals,dc=vsphere, dc=local


root@<vCenter> [ ~ ] /usr/lib/vmware-vmafd/bin/dir-cli group list --name "SnapService Service User'
Enter password for [email protected]:

N=aps-########-####-####-####-############,cn=ServicePrincipals,de=vsphere,de=local
N=com.wmare.vsan.snapservice-########-####-####-####-############,cn=ServicePrincipals,de=vsphere,dc=local



Resolution

Follow the steps provided below:

1. Add vSAN Data Protection service account of Site-B in the user groups 'SnapService Service Users' and 'APS Administrators' by running following commands on vCenter Site-A

   # /usr/lib/vmware-vmafd/bin/dir-cli group modify --name "SnapService Service Users" --add com.vmware.vsan.snapservice-########-####-####-####-############
# /usr/lib/vmware-vmafd/bin/dir-cli group modify --name "APS Administrators" --add com.vmware.vsan.snapservice-########-####-####-####-############



2. Perform the above steps for vCenter at Site-B as well.

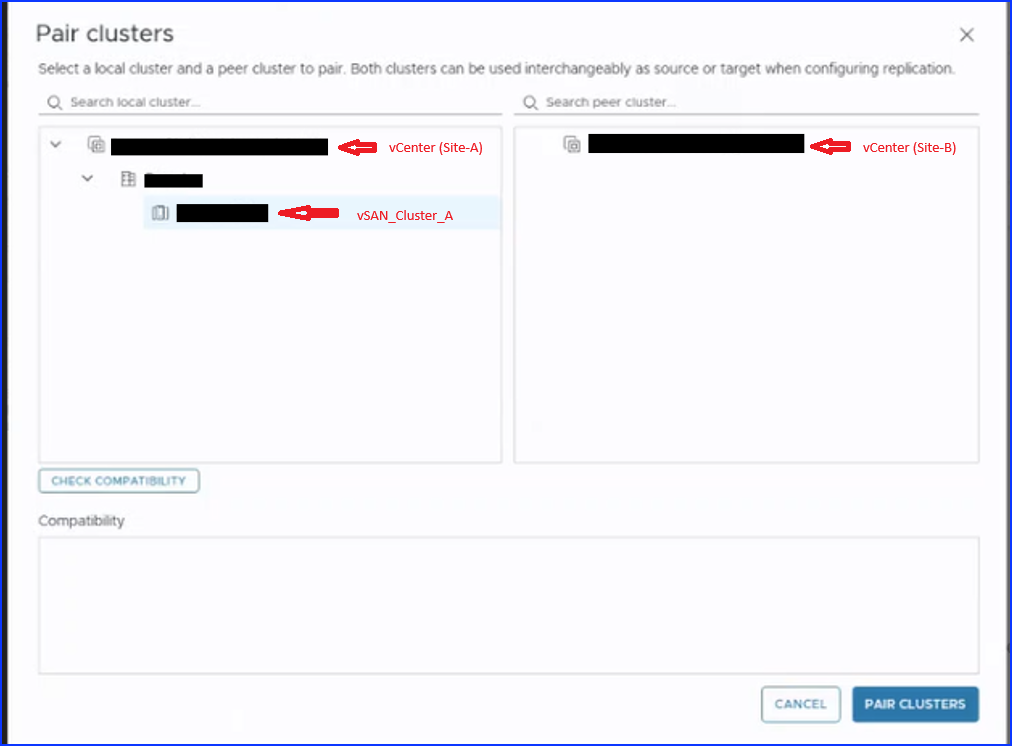

3. Pair the vSAN Clusters from vSphere Client for vSAN Data Protection:

   Click on vCenter (select one of the two vCenters)  > Configure > vSAN > Data Protection > under 'Cluster Pairs', click on 'Pair Clusters'.
