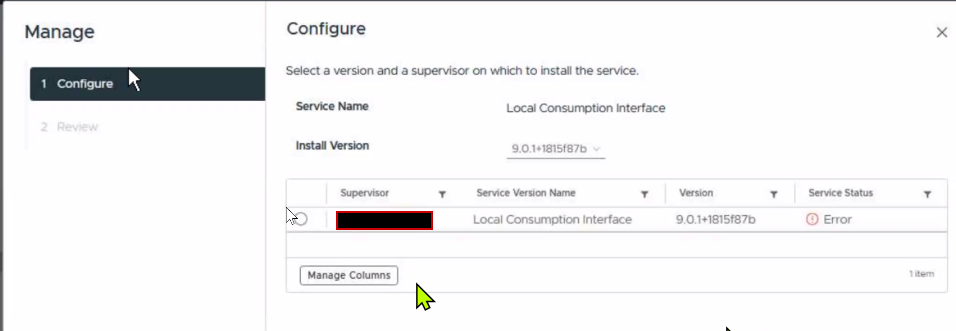

"Local Consumption Interface" service deployment failed

Products

• VMware NSX

Issue/Introduction

• VKS is deployed using NSX VPC connectivity.




• Local Consumption interface service will attempt to download packages from 'projects.packages.broadcom.com" via eth1.

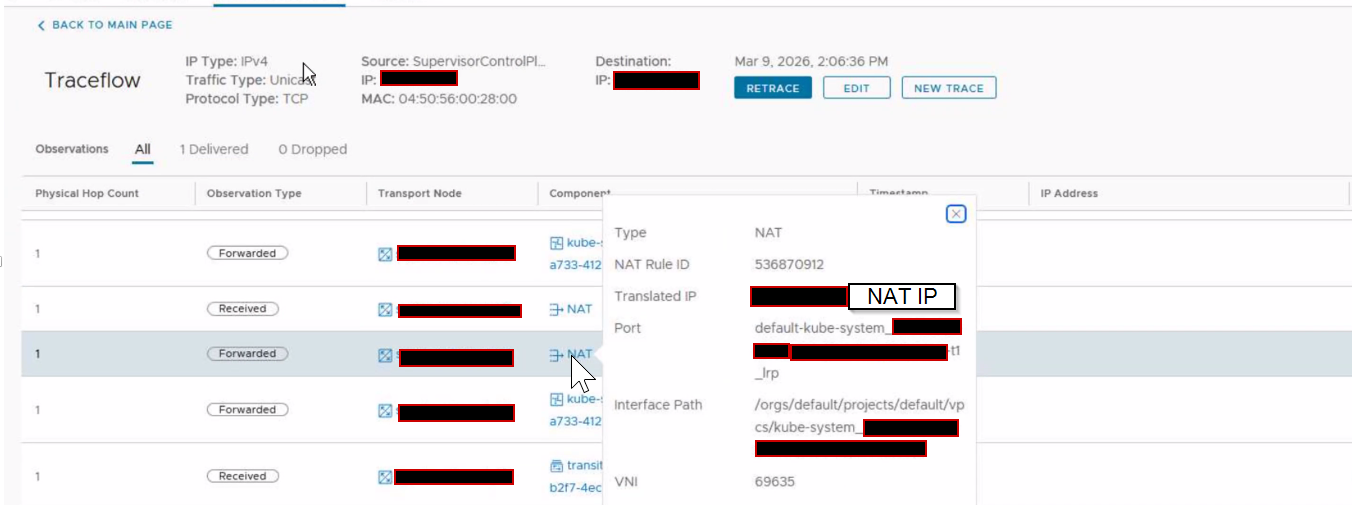

• eth-1 is connected to the NSX VPC, and the traffic travels via a NAT

• Traffic leaves the NSX boundary. But failed to download the images.

Environment

VMware NSX

Cause

NAT IPs are not allowed in the infra led to service installation failure.

Resolution

NAT IPs of the respective traffic should be allowed in the perimeter firewall.
