NSX edge deployment from SDDC fails while trying to Fetch port group managed object reference ID

Products

• VMware SDDC Manager

Issue/Introduction

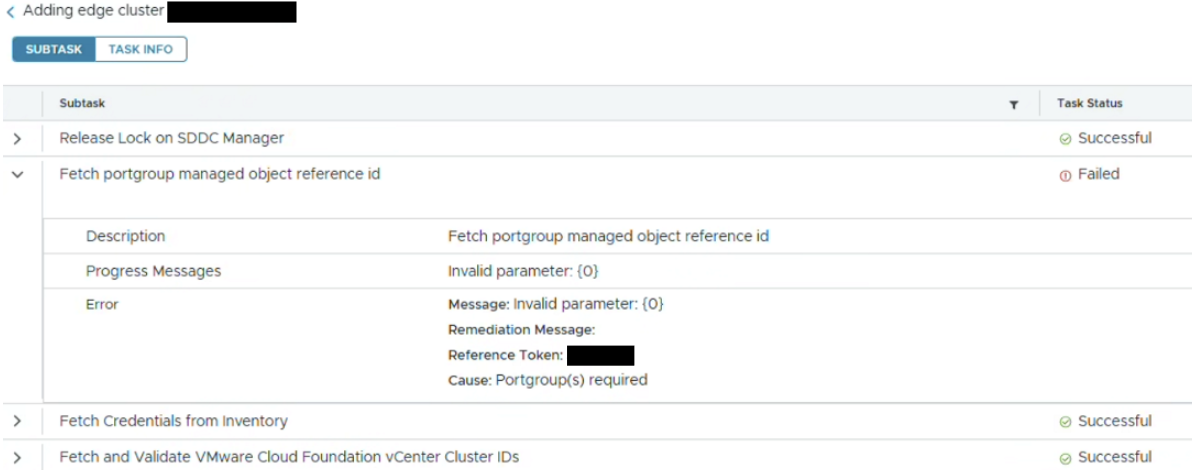

• During the deployment of the NSX Edge cluster deployment the workflow fails from SDDC Manager.

  Fetch port grouped managed object reference - Invalid Parameter: {0}
Cause: Portgroup(s) required.

• /var/log/vmware/vcf/domainmanager/domainmanager.log:

^{yyyy-mm-ddThh:mm:ss.288 DEBUG [vcf_dm] [c.v.e.s.o.c.c.ContractParamBuilder,dm-exec-9]  Contract task Fetch VLAN Portgroup Name result: {"clusterMoidToVMMgmtPortgroupNameMap":{}}
yyyy-mm-ddThh:mm:ss.352 DEBUG [vcf_dm] [c.v.e.s.o.c.ProcessingTaskSubscriber,dm-exec-9]  Invoking task FetchVMManagementPortgroupFromInventoryAction.POSTVALIDATE Description: Fetch VLAN Portgroup Name, Plugin: NsxTEdgeClusterServicePlugin, ParamBuilder null, Input map: {dvpgCompliantClusterIds=dvpgCompliantClusterIds, clusterMoidToClusterId=clusterMoidToClusterId, clusterMoidToVdsIds=clusterMoidToMgmtVdsIds}
yyyy-mm-ddThh:mm:ss.365 DEBUG [vcf_dm] [c.v.e.s.o.c.ProcessingTaskSubscriber,dm-exec-9]  Invoking task FetchPortgroupMoidAction.PREVALIDATE Description: Fetch VLAN Portgroup Managed Object Reference ID, Plugin: VspherePlugin, ParamBuilder null, Input map: {clusterMoIdToRemoteEndpoint=clusterMoIdToRemoteEndpoint, clusterMoidToPortgroupNameMap=FetchVMManagementPortgroup____5__clusterMoidToVMMgmtPortgroupNameMap},
yyyy-mm-ddThh:mm:ss.369 DEBUG [vcf_dm] [c.v.e.s.o.c.c.ContractParamBuilder,dm-exec-9]  Contract task Fetch VLAN Portgroup Managed Object Reference ID input: {"clusterMoIdToRemoteEndpoint":{"domain-c##":{"address":"vcenter_fqdn","port":0,"username":"[email protected]","password":"*****"}},"clusterMoidToPortgroupNameMap":{}}
yyyy-mm-ddThh:mm:ss.370 ERROR [vcf_dm] [c.v.e.s.o.model.error.ErrorFactory,dm-exec-9]  [] VCF_ERRORS_GENERIC_INPUT_PARAM_ERROR Invalid parameter: {0}
com.vmware.evo.sddc.orchestrator.exceptions.OrchTaskException: Invalid parameter: {0}
        at com.vmware.vcf.common.contract.fsm.actions.impl.FetchPortgroupMoidAction.preValidate(FetchPortgroupMoidAction.java:80)
        at com.vmware.vcf.common.contract.fsm.actions.impl.FetchPortgroupMoidAction.preValidate(FetchPortgroupMoidAction.java:26)
        at com.vmware.evo.sddc.orchestrator.platform.action.FsmActionState.lambda$static$0(FsmActionState.java:18)
        at com.vmware.evo.sddc.orchestrator.platform.action.FsmActionState.invoke(FsmActionState.java:62)
        at com.vmware.evo.sddc.orchestrator.platform.action.FsmActionPlugin.invoke(FsmActionPlugin.java:159)
        at com.vmware.evo.sddc.orchestrator.platform.action.FsmActionPlugin.invoke(FsmActionPlugin.java:144)
...
...
...
Caused by: java.lang.IllegalArgumentException: Portgroup(s) required}

Environment

VMware Cloud Foundation 5.x

Cause

• The error com.vmware.evo.sddc.orchestrator.exceptions.OrchTaskException: Invalid parameter: {0}, caused by java.lang.IllegalArgumentException: Portgroup(s) required indicates that the SDDC Manager workflow failed to identify the management port group associated with the target cluster and the associated VDS.


• This state indicates the attempt of incomplete manual cleanup of a failed NSX Edge cluster, leaving the environment in an inconsistent state.

Resolution

1. Use the script to cleanup the current Edge cluster creation - VMware Cloud Foundation NSX-T Edge Cluster Deployment Removal Tool

2. Initiate a new Edge cluster creation from the SDDC manager.
