Add Cluster Wizard keeps spinning with no error message

Products

VMware SDDC Manager

Issue/Introduction

Create cluster wizard in SDDC Manager UI keeps spinning with no option to cancel apart from exiting the wizard by browser refresh. The wizard provides no error messages.

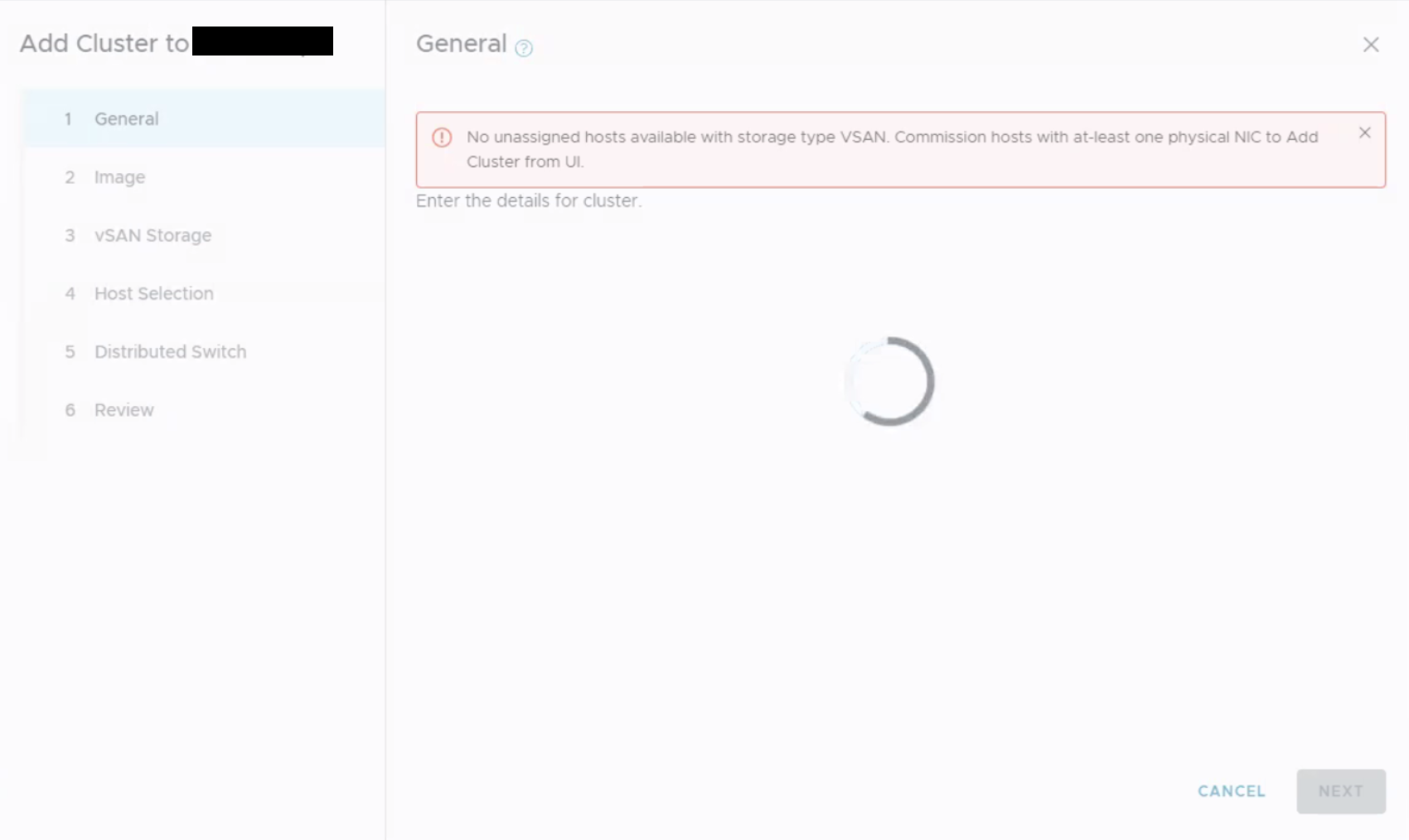

The Cluster add wizard looks similar to image as seen below;

The Error message can be ignored as it is not related to the freeze behavior. To troubleshoot the issue related to the reported error, please refer to Broadcom article, "Unable to Create SDDC Cluster with ESXi Version 9.0.0. Error in Add cluster Wizard "No unassigned hosts available with storage type VSAN. Commission hosts with at-least one physical NIC to Add Cluster from UI."
By analyzing domain-manager logs, we read failure reported for multiple hosts in a cluster, in refreshing live checks. It further reads, "Unable to refresh live checks for resource ####-####-####-#### in new local inventory"

/var/log/vmware/vcf/domainmanager/domainmanager.log

YYYY-MM-DDTHH:MIN:SEC DEBUG [vcf_dm,####,####,a362] [c.v.v.q.i.p.vim.VimResultConverter,vcf-ds-294] Received a response from 'vCenter FQDN'
YYYY-MM-DDTHH:MIN:SEC WARN [vcf_dm,####,####,a362] [c.v.v.q.i.p.vim.VimResultConverter,vcf-ds-294] vimResultSet items is null
YYYY-MM-DDTHH:MIN:SEC DEBUG [vcf_dm,####,####,a362] [c.v.e.s.c.s.utils.VcResourceNameUtil,http-nio-127.0.0.1-7200-exec-9] returned values getClusterNames {####-####-####-####=null}

YYYY-MM-DDTHH:MIN:SEC DEBUG [vcf_dm,####,####] [c.v.v.c.service.ResourceCacheService,dm-exec-20] SddcManagerController ####-####-####-#### is in ACTIVE status.
YYYY-MM-DDTHH:MIN:SEC INFO [vcf_dm,####,####] [c.v.v.c.service.ResourceCacheService,dm-exec-20] Loading isConfigRealized checks for changed resources and refresh failed checks...
YYYY-MM-DDTHH:MIN:SEC INFO [vcf_dm,####,####] [c.v.v.c.service.ResourceCacheService,dm-exec-20] Refreshing live checks for HOST with id ####-####-####-####
YYYY-MM-DDTHH:MIN:SEC INFO [vcf_dm,####,####] [c.v.v.c.service.ResourceCacheService,ForkJoinPool.commonPool-worker-219] Refreshing live checks for CLUSTER with id ####-####-####-####
YYYY-MM-DDTHH:MIN:SEC INFO [vcf_dm,####,####] [c.v.v.c.service.ResourceCacheService,ForkJoinPool.commonPool-worker-220] Refreshing live checks for CLUSTER with id ####-####-####-####
YYYY-MM-DDTHH:MIN:SEC INFO [vcf_dm,####,####] [c.v.v.c.service.ResourceCacheService,dm-exec-20] Refreshing live checks for HOST with id ####-####-####-####
YYYY-MM-DDTHH:MIN:SEC INFO [vcf_dm,####,####] [c.v.v.c.service.ResourceCacheService,dm-exec-20] Refreshing live checks for HOST with id ####-####-####-####
YYYY-MM-DDTHH:MIN:SEC INFO [vcf_dm,####,####] [c.v.v.c.service.ResourceCacheService,ForkJoinPool.commonPool-worker-219] Refreshing live checks for HOST with id ####-####-####-####
YYYY-MM-DDTHH:MIN:SEC INFO [vcf_dm,####,####] [c.v.v.c.service.ResourceCacheService,ForkJoinPool.commonPool-worker-219] Refreshing live checks for HOST with id ####-####-####-####
YYYY-MM-DDTHH:MIN:SEC INFO [vcf_dm,####,####] [c.v.v.c.service.ResourceCacheService,ForkJoinPool.commonPool-worker-220] Refreshing live checks for HOST with id ####-####-####-####
YYYY-MM-DDTHH:MIN:SEC INFO [vcf_dm,####,####] [c.v.v.c.service.ResourceCacheService,ForkJoinPool.commonPool-worker-219] Refreshing live checks for HOST with id ####-####-####-####
YYYY-MM-DDTHH:MIN:SEC INFO [vcf_dm,####,####] [c.v.v.c.service.ResourceCacheService,ForkJoinPool.commonPool-worker-220] Refreshing live checks for HOST with id ####-####-####-####
YYYY-MM-DDTHH:MIN:SEC INFO [vcf_dm,####,####] [c.v.v.c.service.ResourceCacheService,ForkJoinPool.commonPool-worker-219] Refreshing live checks for HOST with id ####-####-####-####
YYYY-MM-DDTHH:MIN:SEC INFO [vcf_dm,####,####] [c.v.v.c.service.ResourceCacheService,ForkJoinPool.commonPool-worker-220] Refreshing live checks for CLUSTER with id ####-####-####-####
YYYY-MM-DDTHH:MIN:SEC ERROR [vcf_dm,####,####] [c.v.v.c.service.ResourceCacheService,dm-exec-20] Unable to refresh live checks for resource ####-####-####-#### in new local inventory
java.util.NoSuchElementException: null
at java.base/java.util.ArrayList$Itr.next(ArrayList.java:970)
at java.base/java.util.Collections.min(Collections.java:601)
at com.vmware.vcf.configreconciler.service.ResourceCacheService.isEsxVersionChanged(ResourceCacheService.java:1073)

Environment

VCF 9.x

Cause

SDDC Manager is unable to list ESX host inventory information for the said cluster in a WLD domain. Performing out-of-band changes to vCenter server inventory, such as decommissioning ESX host from vCenter server instance rather than SDDC Manager, shall lead to this behavior. SDDC Manager shall hold stale entries of ESX host or cluster names in its database.

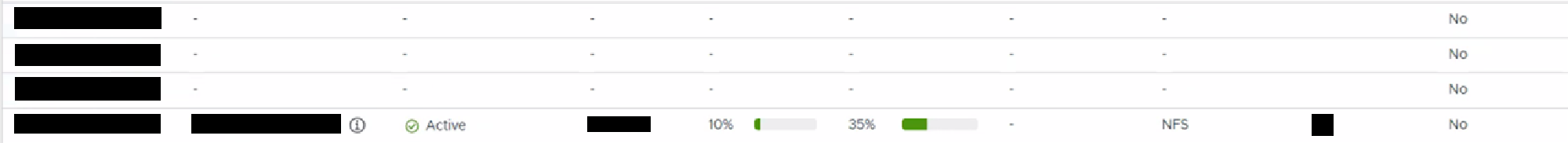

SDDC Manager lists hosts with no/blank information for an affected WLD domain.

Resolution

This requires validation of stale ESX hosts and SDDC database edits. Database edits are destructive in nature, raise a Broadcom Support Case to seek further assistance.

Note: It shall be helpful if following details are included in the Support Case, so that the issue can be validated and reference stale entries.

Screenshot of the Error message.
WLD or Management domain details (Name and Version).
Log bundle of SDDC manager.
